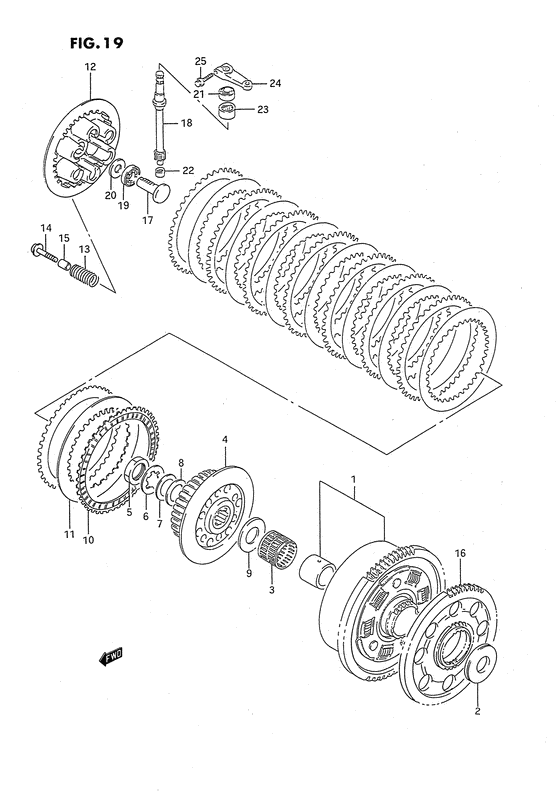

Clutch Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21200-21841-000
Gear, primary driven (nt:75)
|
21200-21841-000 |
— | ||
| replacement | |||||
|
1
|
1
21200-21842-000
GEAR ASSY,PRI DRIVEN
|
21200-21842-000 |
— | ||
|
2
|
2
09160-25067-000
Washer (25x54x2.5)
|
09160-25067-000 |
— | ||
|
3
|
3
09263-35017-000 BEARING(35X40X35.8)Bearing (35x40x35.8) |
09263-35017-000 |
from US $54.74 |
||
|
4
|
4
21411-17E20-000
Hub,clutch slee
|
21411-17E20-000 |
— | ||
| replacement | |||||
|
4
|
4
21410-17E10-000
HUB,CLUTCH SLEEVE
|
21410-17E10-000 |
— | ||
|
5
|
5
09140-24012-000
Nut
|
09140-24012-000 |
— | ||
|
6
|
6
09167-25007-000 WASHER,LOCKWasher Washer; |
09167-25007-000 |
US $14.70 |
||
|
7
|
7
09164-25001-000 WASHERWasher Washer, wave; |
09164-25001-000 |
from US $3.62 |
||
|
8
|
8
08211-25441-000 WASHERWasher Washer; |
08211-25441-000 |
from US $2.99 |
||
|
9
|
9
09160-25056-000 WASHER(25X50X2.5)Washer, clutch sleeve Washer (25x50x2.5); |
09160-25056-000 |
from US $6.84 |
||
|
10
|
10
21441-17E21-000 Plate,clutch DrivePlate, drive (t:2.2) Plate, drive (t:2.2); |
21441-17E21-000 |
from US $26.50 |
||
|
11
|
11
21451-17C00-000 Plate,clutch drivenPlate,driver (t:1.6) Plate, driven (t:1.6); |
21451-17C00-000 |
from US $10.08 |
||
|
12
|
12
21462-17E01-000 DISC,CLUTCH PRESSUREDisc, pressure |
21462-17E01-000 |
from US $64.40 |
||
|
13
|
13
09440-20020-000 SPRING |
09440-20020-000 |
from US $2.72 |
||
|
14
|
14
09116-06161-000
BOLT(6X40)
|
09116-06161-000 |
— | ||
|
15
|
15
09180-06204-000
SPACER(6.2X12X18)
Spacer (6.2x12x18); |
09180-06204-000 |
— | ||
|
16
|
16
22721-21E01-000
Gear, alternator (nt:34/61)
|
22721-21E01-000 |
— | ||
| replacement | |||||
|
16
|
16
22721-21E02-000
GEAR,GENERATOR DRIVE
|
22721-21E02-000 |
— | ||
|
17
|
17
23165-21E00-000 RACK,CLUTCH RELEASERack, release |
23165-21E00-000 |
from US $35.12 |
||
|
18
|
18
23261-21E00-000 PINION,CLUTCH RELEASEPinion, release |
23261-21E00-000 |
from US $32.75 |
||
|
19
|
19
09263-15003-000 BEARING(15X28X2)Bearing Bearing (15x28x2); |
09263-15003-000 |
from US $5.62 |
||
|
20
|
20
09160-15045-000 WASHER(15.5X28X1)Washer (15.5x28x1.0) Washer (15x28x1); |
09160-15045-000 |
from US $1.98 |
||
|
21
|
21
09285-12002-000
Shift shaft oil
Oil seal (12x22x9); |
09285-12002-000 |
— | ||
| replacement | |||||
|
21
|
21
09285-12006-000 SEAL,OIL(12X22X9)Oil seal (12x22x9) Oil seal (12x22x9); |
09285-12006-000 |
from US $2.58 |
||
|
22
|
22
09263-10013-000
Bearing (10x14x10)
|
09263-10013-000 |
— | ||
| replacement | |||||
|
22
|
22
09263-10014-000 BEARING(10X14X10)Bearing, cl rlse low |
09263-10014-000 |
from US $8.66 |
||
|
23
|
23
09263-15012-000 BEARING(15X22X12)Bearing Bearing (15x22x12); |
09263-15012-000 |
from US $9.90 |
||
|
24
|
24
23271-40000-000
ARM,CLUTCH RELEASE
|
23271-40000-000 |
— | ||
|
25
|
25
01500-06203-000
Bolt
|
01500-06203-000 |
— | ||
| replacement | |||||
|
25
|
25
01500-0620A-000 BOLT |
01500-0620A-000 |
from US $0.76 |
||
