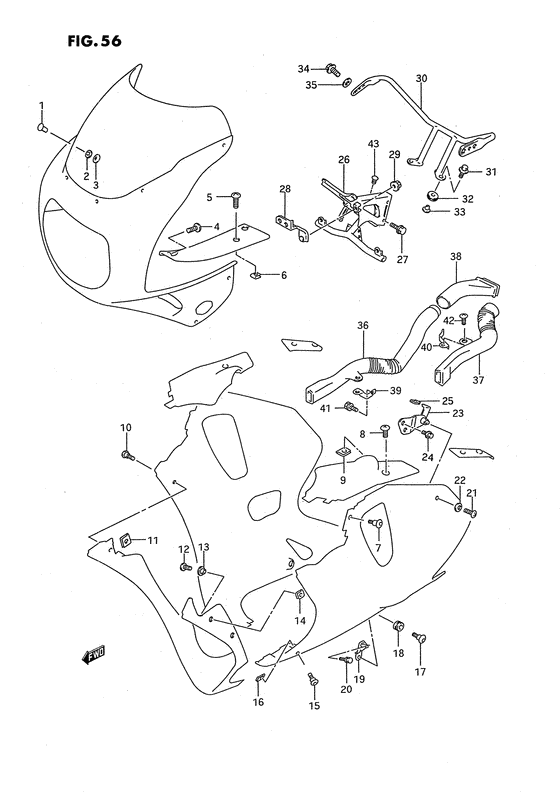

Cowling fitting set Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94616-22D00-000 PIN,WINDSCREENPin, screen (4x11) Pin, screen (4x11); |
94616-22D00-000 |
from US $1.60 |
||
|
2
|
2
09320-04007-000
Cushion
|
09320-04007-000 |
— | ||
| replacement | |||||
|
2
|
2
09320-04501-000 CUSHION |
09320-04501-000 |
from US $1.22 |
||
|
3
|
3
09148-04032-000 NUT |
09148-04032-000 |
from US $0.77 |
||
|
4
|
4
03541-05103-000
Screw5 x 10
Screw, panel front (5x10); |
03541-05103-000 |
— | ||
| replacements | |||||
|
4
|
4
03541-0510B-000 SCREWScrew, panel front (5x10); |
03541-0510B-000 |
from US $0.80 |
||
|
4
|
4
03541-0510A-000 SCREWScrew, rr cover Screw, panel front (5x10); |
03541-0510A-000 |
from US $0.68 |
||
|
5
|
5
03241-05123-000
Screw
Screw, panel rear (5x12); |
03241-05123-000 |
— | ||
| replacement | |||||
|
5
|
5
03241-0512A-000 SCREWScrew, panel rear (5x12); |
03241-0512A-000 |
from US $0.68 |
||
|
6
|
6
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
7
|
7
09139-05055-000 SCREW(5X16)Screw, front cowl Screw, cowling (5x16); |
09139-05055-000 |
from US $1.82 |
||
|
8
|
8
03241-05123-000
Screw
Screw, panel lower (5x12); |
03241-05123-000 |
— | ||
| replacement | |||||
|
8
|
8
03241-0512A-000 SCREWScrew, panel lower (5x12); |
03241-0512A-000 |
from US $0.68 |
||
|
9
|
9
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
10
|
10
09139-05054-000 SCREW(5X16)Screw, center cowl Screw, under rh (5x16); |
09139-05054-000 |
from US $1.82 |
||
|
11
|
11
94484-12C11-000 NUT,RH & CTR UNDER COWLING |
94484-12C11-000 |
from US $12.39 |
||
|
12
|
12
03241-05163-000
Screw, bracket
|
03241-05163-000 |
— | ||
| replacement | |||||
|
12
|
12
03241-0516A-000 SCREW |
03241-0516A-000 |
from US $0.76 |
||
|
13
|
13
09161-05017-000 WASHER(5.2X14X1.5) |
09161-05017-000 |
from US $1.98 |
||
|
14
|
14
09148-05013-000 NUT |
09148-05013-000 |
from US $0.91 |
||
|
15
|
15
09139-05054-000 SCREW(5X16)Screw, center cowl Screw, under lh (5x16); |
09139-05054-000 |
from US $1.82 |
||
|
16
|
16
94484-12C11-000 NUT,RH & CTR UNDER COWLING |
94484-12C11-000 |
from US $12.39 |
||
|
17
|
17
09139-06087-000
SCREW(6X20)
Screw, under lower (6x20); |
09139-06087-000 |
— | ||
| replacement | |||||
|
17
|
17
09139-06126-000 SCREW(6X20)Screw, brace Screw, under lower (6x20); |
09139-06126-000 |
from US $1.82 |
||
|
18
|
18
09320-09016-000 CUSHIONCushion, holder |
09320-09016-000 |
from US $1.04 |
||
|
19
|
19
94740-17E00-000 BRACKET,UNDER COWLING LWR,RBracket, under lower rh |
94740-17E00-000 |
from US $9.20 |
||
|
19
|
19
94840-17E01-000 BRACKET,UNDER COWLING LWR,LBracket, under lower lh |
94840-17E01-000 |
from US $9.20 |
||
|
20
|
20
09116-06027-000
Bolt (6x16)
|
09116-06027-000 |
— | ||
| replacement | |||||
|
20
|
20
09116-06024-000 BOLT(6X16) |
09116-06024-000 |
US $14 |
||
|
21
|
21
09139-06078-000 SCREW(6X10)Screw (6x10) Screw, under (6x10); |
09139-06078-000 |
from US $3.74 |
||
|
22
|
22
09160-06053-000
Washer
|
09160-06053-000 |
— | ||
| replacement | |||||
|
22
|
22
09160-06125-000 WASHER(6.5X14X1.6)Washer (6.5x14x1.6) |
09160-06125-000 |
from US $0.76 |
||
|
23
|
23
94530-17E30-000
Brace,undr cowl
|
94530-17E30-000 |
— | ||
|
23
|
23
94540-17E30-000
Brace,undr cowl
|
94540-17E30-000 |
— | ||
|
24
|
24
01550-06123-000
Bolt
Bolt (6x10); |
01550-06123-000 |
— | ||
| replacements | |||||
|
24
|
24
01550-0612B-000 BOLTBolt, clamp Bolt (6x10); |
01550-0612B-000 |
from US $0.76 |
||
|
24
|
24
01550-0612A-000 BOLTBolt (6x10); |
01550-0612A-000 |
from US $0.76 |
||
|
25
|
25
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
26
|
26
94510-17E20-000
Brace comp,cowl
|
94510-17E20-000 |
— | ||
|
27
|
27
01550-08303-000
Bolt
Bolt (8x30); |
01550-08303-000 |
— | ||
| replacements | |||||
|
27
|
27
01550-0830B-000 BoltBolt (8x30); |
01550-0830B-000 |
from US $1.06 |
||
|
27
|
27
01550-0830A-000 BOLTBolt, mount oil seal cover Bolt (8x30); |
01550-0830A-000 |
from US $1.12 |
||
|
28
|
28
94428-17E20-000
Bracket, head lamp
|
94428-17E20-000 |
— | ||
| replacement | |||||
|
28
|
28
94428-17E21-000 BRACKET,HEADLAMPBracket, headlamp |
94428-17E21-000 |
US $28.42 |
||
|
29
|
29
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
29
|
29
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
30
|
30
94520-17E00-000
BRACE,RR VIEW MIRRORR
|
94520-17E00-000 |
— | ||
|
31
|
31
09116-06146-000 BOLT(6X25)Bolt (6x20) Bolt (6x25); |
09116-06146-000 |
US $3.71 |
||
| replacement | |||||
|
31
|
31
09116-06150-000 BOLT(6X25)Bolt, air cleaner chamber Bolt (6x25); |
09116-06150-000 |
from US $1.28 |
||
|
32
|
32
09320-09009-000 CUSHION |
09320-09009-000 |
from US $1.67 |
||
|
33
|
33
09169-06062-000 WASHERWasher Washer; |
09169-06062-000 |
from US $1.12 |
||
|
34
|
34
09136-06004-000 SCREW(6X12)Screw (6x12); |
09136-06004-000 |
from US $0.77 |
||
|
35
|
35
09161-06023-000 WASHER(6.2X19X1.5) |
09161-06023-000 |
from US $1.22 |
||
|
36
|
36
94451-17E00-000 PIPE,AIR INTAKE FR,RPipe, air intake rh |
94451-17E00-000 |
from US $42.32 |
||
|
37
|
37
94452-17E00-000 PIPE,AIR INTAKE FR,LPipe, air intake lh |
94452-17E00-000 |
US $42.32 |
||
|
38
|
38
94453-46E00-000
Pipe,air intake
|
94453-46E00-000 |
— | ||
|
39
|
39
94454-17E01-000
Bracket, air intake rh
|
94454-17E01-000 |
— | ||
|
40
|
40
94455-17E01-000
Bracket,air int
|
94455-17E01-000 |
— | ||
|
41
|
41
01550-06123-000
Bolt
Bolt (6x12); |
01550-06123-000 |
— | ||
| replacements | |||||
|
41
|
41
01550-0612B-000 BOLTBolt, clamp Bolt (6x12); |
01550-0612B-000 |
from US $0.76 |
||
|
41
|
41
01550-0612A-000 BOLTBolt (6x12); |
01550-0612A-000 |
from US $0.76 |
||
|
42
|
42
02142-06123-000
Screw
Screw (6x12); |
02142-06123-000 |
— | ||
| replacements | |||||
|
42
|
42
02142-0612B-000 SCREWScrew (6x12); |
02142-0612B-000 |
from US $0.76 |
||
|
42
|
42
02142-0612A-000 SCREWScrew (6x12); |
02142-0612A-000 |
from US $0.80 |
||
|
43
|
43
09250-09001-000
CAP(OD:14)
Cap, damper bolt; |
09250-09001-000 |
— | ||
| replacement | |||||
|
43
|
43
09250-09008-000 Cap(Od:14)Cap, damper bolt; |
09250-09008-000 |
from US $2.45 |
||
