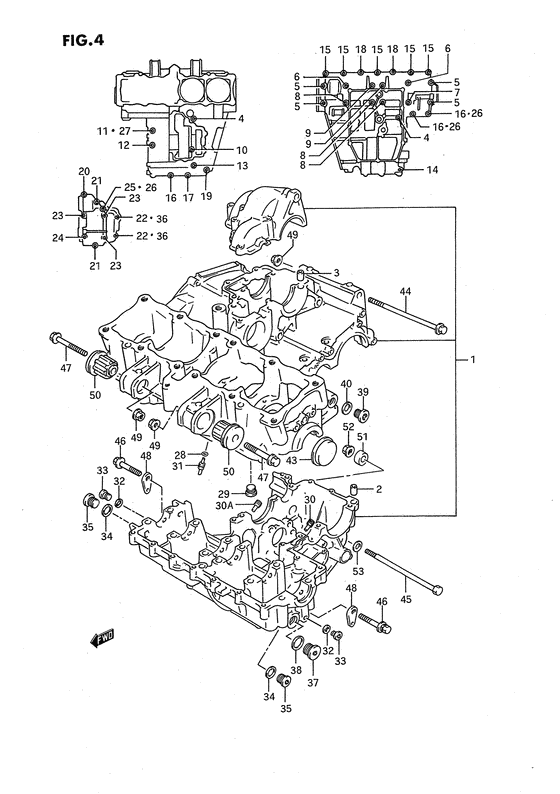

Crankcase Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11300-17850-000
Crankcase set
|
11300-17850-000 |
— | ||
| replacement | |||||
|
1
|
1
11302-46876-000
CRANKCASE SET
|
11302-46876-000 |
— | ||
|
2
|
2
09206-13004-000 PIN(10.4X13X22)Pin (l:22) Pin; |
09206-13004-000 |
from US $3.69 |
||
|
3
|
3
04211-09129-000 PINPin Pin; |
04211-09129-000 |
from US $0.96 |
||
|
4
|
4
09103-06163-000 BOLT(6X105)Bolt (6x105) Bolt (6x105); |
09103-06163-000 |
US $21 |
||
|
5
|
5
09103-09007-000
Bolt,9x80
Bolt (9x80); |
09103-09007-000 |
— | ||
| replacement | |||||
|
5
|
5
09103-09007-XC0
BOLT(9X80)
Bolt (9x80); |
09103-09007-XC0 |
— | ||
|
6
|
6
09103-09008-000 BOLT(9X95)Bolt (9x95); |
09103-09008-000 |
from US $10.23 |
||
|
7
|
7
09103-09009-000 BOLT(9X105)Bolt (9x105); |
09103-09009-000 |
from US $7.47 |
||
|
8
|
8
09103-09010-000 BOLT(9X115)Bolt (9x115); |
09103-09010-000 |
from US $11.37 |
||
|
9
|
9
09106-09001-000
Bolt,9x60
Bolt (9x60); |
09106-09001-000 |
— | ||
|
10
|
10
07130-06753-000
Bolt
|
07130-06753-000 |
— | ||
| replacement | |||||
|
10
|
10
07130-0675B-000 Bolt |
07130-0675B-000 |
from US $6.26 |
||
|
11
|
11
07130-08503-000
Bolt
|
07130-08503-000 |
— | ||
| replacement | |||||
|
11
|
11
07130-0850A-000 BOLT |
07130-0850A-000 |
from US $1.60 |
||
|
12
|
12
07130-08603-000
Bolt
|
07130-08603-000 |
— | ||
| replacement | |||||
|
12
|
12
07130-0860B-000 Bolt |
07130-0860B-000 |
from US $4.88 |
||
|
13
|
13
07130-08803-000
Bolt
|
07130-08803-000 |
— | ||
| replacement | |||||
|
13
|
13
07130-0880B-000 Bolt |
07130-0880B-000 |
from US $4.88 |
||
|
14
|
14
01550-08603-000
Bolt, crankcase
|
01550-08603-000 |
— | ||
| replacements | |||||
|
14
|
14
01550-0860B-000 BoltBolt, sec case |
01550-0860B-000 |
from US $6.61 |
||
|
14
|
14
01550-0860A-000 Bolt |
01550-0860A-000 |
from US $5.68 |
||
|
15
|
15
01550-06353-000
Bolt
|
01550-06353-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0635B-000 Bolt |
01550-0635B-000 |
from US $0.91 |
||
|
15
|
15
01550-0635A-000 Bolt |
01550-0635A-000 |
from US $0.96 |
||
|
16
|
16
01550-06403-000
Bolt (green)
Bolt; |
01550-06403-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0640B-000 BoltBolt; |
01550-0640B-000 |
from US $0.96 |
||
|
16
|
16
01550-0640A-000 BoltBolt (l:40) Bolt; |
01550-0640A-000 |
from US $3.83 |
||
|
17
|
17
01550-06403-000
Bolt (green)
Bolt; |
01550-06403-000 |
— | ||
| replacements | |||||
|
17
|
17
01550-0640B-000 BoltBolt; |
01550-0640B-000 |
from US $0.96 |
||
|
17
|
17
01550-0640A-000 BoltBolt (l:40) Bolt; |
01550-0640A-000 |
from US $3.83 |
||
|
18
|
18
01550-06503-000
Bolt
|
01550-06503-000 |
— | ||
| replacements | |||||
|
18
|
18
01550-0650B-000 Bolt |
01550-0650B-000 |
US $15.50 |
||
|
18
|
18
01550-0650A-000 BOLTBolt (6x50) |
01550-0650A-000 |
from US $0.96 |
||
|
19
|
19
01550-06653-000
Bolt
|
01550-06653-000 |
— | ||
| replacement | |||||
|
19
|
19
01550-0665A-000 Bolt |
01550-0665A-000 |
from US $5.07 |
||
|
20
|
20
07130-06253-000
Bolt
|
07130-06253-000 |
— | ||
| replacement | |||||
|
20
|
20
07130-0625B-000 BOLT |
07130-0625B-000 |
from US $0.91 |
||
|
21
|
21
07130-06353-000
Bolt, ignition coil
|
07130-06353-000 |
— | ||
| replacement | |||||
|
21
|
21
07130-0635B-000 BOLTBolt, magneto stator |
07130-0635B-000 |
from US $0.91 |
||
|
22
|
22
07130-06403-000
Bolt
|
07130-06403-000 |
— | ||
| replacement | |||||
|
22
|
22
07130-0640B-000 BoltBolt, camshaft housing |
07130-0640B-000 |
from US $1.12 |
||
|
23
|
23
07130-06503-000
Bolt
|
07130-06503-000 |
— | ||
| replacement | |||||
|
23
|
23
07130-0650B-000 BOLT |
07130-0650B-000 |
from US $5.59 |
||
|
24
|
24
07130-06603-000
Bolt
|
07130-06603-000 |
— | ||
| replacement | |||||
|
24
|
24
07130-0660B-000 Bolt |
07130-0660B-000 |
from US $6.38 |
||
|
25
|
25
09103-06062-000
Bolt 6x145
Bolt (6x145); |
09103-06062-000 |
— | ||
|
26
|
26
09168-06018-000 GASKET(6.2X13X1.2)Gasket, oil check bolt |
09168-06018-000 |
from US $1.06 |
||
|
27
|
27
09168-08016-000 GASKET(8.2X14X1)Gasket (8.2x14x1.0) |
09168-08016-000 |
from US $1.22 |
||
|
28
|
28
09280-04004-000 O RING(D:1.2,ID:4)O ring, oil gallery jet O ring; |
09280-04004-000 |
from US $1.82 |
||
|
29
|
29
09248-18002-000
Plug,crankcase
|
09248-18002-000 |
— | ||
| replacements | |||||
|
29
|
29
09248-18011-000 PLUG(18X8)Plug, oil gallery |
09248-18011-000 |
from US $2.88 |
||
|
29
|
29
09248-18005-000 PLUGPlug, oil gallery |
09248-18005-000 |
from US $10.15 |
||
|
30
|
30
09493-24010-000 JETJet, oil gallery mission lh; |
09493-24010-000 |
from US $10.52 |
||
|
30A
|
30A
09493-28012-000 JET(140)Jet, head Jet, oil gallery mission rh; |
09493-28012-000 |
from US $6.23 |
||
|
31
|
31
09493-80008-000
JET,OIL GALLERY
Jet, oil gallery piston; |
09493-80008-000 |
— | ||
|
32
|
32
09168-10002-000 GASKET(10X14X3.6)Gasket |
09168-10002-000 |
from US $1.67 |
||
|
33
|
33
09248-10007-000 PLUG(10X6.8)Plug, parking pawl |
09248-10007-000 |
from US $8.86 |
||
|
34
|
34
09168-16002-000 GASKET(16X22X2) |
09168-16002-000 |
from US $0.90 |
||
|
35
|
35
09248-16010-000
Plug
Plug, oil gallery; |
09248-16010-000 |
— | ||
| replacement | |||||
|
35
|
35
09248-16012-000 PLUG(16X8)Plug, t.d.c check Plug, oil gallery; |
09248-16012-000 |
from US $2.72 |
||
|
36
|
36
09168-06024-000 GASKET(5.8X11X1.2)Gasket, rear final cover |
09168-06024-000 |
from US $1.52 |
||
|
37
|
37
09248-22002-000 PLUG(22X11)Plug, lh Plug, lh; |
09248-22002-000 |
from US $12.27 |
||
|
38
|
38
09168-22002-000 GASKET(22X27X2)Gasket (id:22,od:27) |
09168-22002-000 |
from US $7.85 |
||
|
39
|
39
09248-14010-000 PLUG |
09248-14010-000 |
from US $3.74 |
||
|
40
|
40
09168-14002-000
GASKET(13.8X18.8X4.8)
|
09168-14002-000 |
— | ||
| replacement | |||||
|
40
|
40
09168-14004-000 GASKET(14X19.2X2)Gasket (14.1x18x1.5) |
09168-14004-000 |
from US $1.22 |
||
|
41
|
41
12228-17E00-0D0 BEARING,CRANK THRUST(GREEN)Bearing, thrust rh (green) Bearing, thrust rh (green); See illustration on, fig.7 (b-9) |
12228-17E00-0D0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0A0 BEARING,CRANK THRUST(RED)Bearing, thrust lh (red); See illustration on, fig.7 (b-9) |
12228-17E00-0A0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0B0 BEARING,CRANK THRUST(BLACK)Bearing, thrust lh (black); |
12228-17E00-0B0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0C0 BEARING,CRANK THRUST(BLUE)Bearing, thrust lh (blue); |
12228-17E00-0C0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0D0 BEARING,CRANK THRUST(GREEN)Bearing, thrust rh (green) Bearing, thrust lh (green); |
12228-17E00-0D0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0E0 BEARING,CRANK THRUST(YELLOW)Bearing, thrust lh (yellow); |
12228-17E00-0E0 |
from US $4.41 |
||
|
42
|
42
12228-17E00-0F0 BEARING,CRANK THRUST(WHITE)Bearing, thrust lh (white); |
12228-17E00-0F0 |
from US $4.41 |
||
|
43
|
43
09241-37002-000 PLUGPlug, crankcase lh |
09241-37002-000 |
from US $12.80 |
||
|
44
|
44
09103-10139-000
Bolt,l:150
Bolt (10x150); |
09103-10139-000 |
— | ||
| replacement | |||||
|
44
|
44
09103-10078-000 BOLT(10X150)Bolt crankcase Bolt (10x150); |
09103-10078-000 |
from US $9.84 |
||
|
45
|
45
09100-12043-000
Bolt,eng mtg,rr
Bolt (12x165); |
09100-12043-000 |
— | ||
|
46
|
46
01580-10603-000
Bolt
Bolt; |
01580-10603-000 |
— | ||
| replacement | |||||
|
46
|
46
01580-1060B-000 BoltArm, brake rod Bolt; |
01580-1060B-000 |
from US $8.23 |
||
|
47
|
47
01550-10553-000
Bolt
|
01550-10553-000 |
— | ||
| replacement | |||||
|
47
|
47
01550-1055B-000 Bolt |
01550-1055B-000 |
from US $1.44 |
||
|
48
|
48
11613-33C00-000
Nut,engine mt l
|
11613-33C00-000 |
— | ||
| replacement | |||||
|
48
|
48
09159-10020-000 NUTNut |
09159-10020-000 |
from US $7.06 |
||
|
49
|
49
09159-10058-000
Nut
|
09159-10058-000 |
— | ||
| replacement | |||||
|
49
|
49
09159-10115-000 NUT |
09159-10115-000 |
from US $2.58 |
||
|
50
|
50
11681-27A00-000
BUSH,ENGINE MOUNTING
|
11681-27A00-000 |
— | ||
|
51
|
51
11611-17E00-000
Spacer,eng mtg,
Spacer (l:13); |
11611-17E00-000 |
— | ||
| replacement | |||||
|
51
|
51
11611-19B13-000 SPACER,ENG MTGSpacer (l:13); |
11611-19B13-000 |
from US $6.26 |
||
|
52
|
52
08319-31128-000
Nut 12mm
Nut; |
08319-31128-000 |
— | ||
| replacement | |||||
|
52
|
52
08319-3112A-000 NUTNut; |
08319-3112A-000 |
from US $1.98 |
||
|
53
|
53
08322-01123-000
Washer
|
08322-01123-000 |
— | ||
| replacement | |||||
|
53
|
53
08322-0112B-000 WASHER |
08322-0112B-000 |
from US $0.80 |
||
