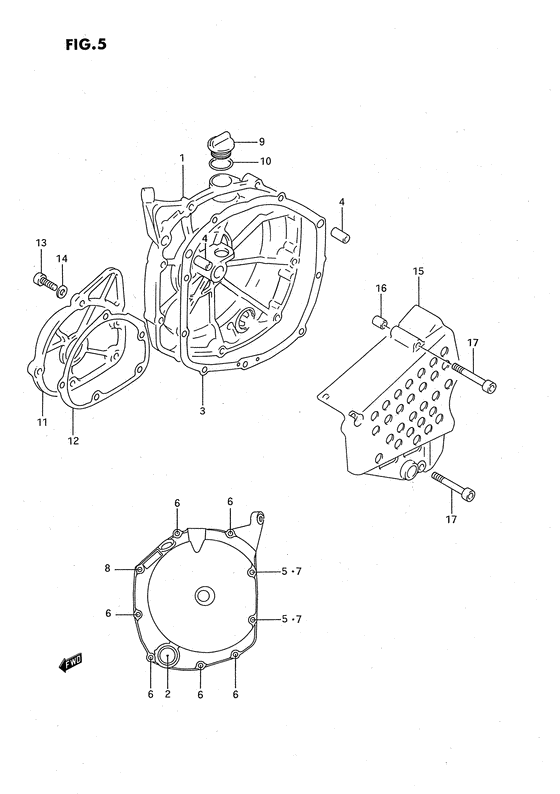

Crankcase cover Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11340-21E00-000
Cover,clutch
|
11340-21E00-000 |
— | ||
|
2
|
2
11971-33210-000 LENS,OIL LEVEL CHECKLens, oil check Lens, oil level; |
11971-33210-000 |
from US $11.97 |
||
|
3
|
3
11482-17E00-000 GASKET,CL COVERGasket, clutch cover Gasket, clutch cover (na); |
11482-17E00-000 |
from US $16.10 |
||
|
4
|
4
04211-09189-000 PINPin; |
04211-09189-000 |
from US $0.91 |
||
|
5
|
5
09168-06024-000 GASKET(5.8X11X1.2)Gasket, rear final cover |
09168-06024-000 |
from US $1.52 |
||
|
6
|
6
07130-06253-000
Bolt
|
07130-06253-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0625B-000 BOLT |
07130-0625B-000 |
from US $0.91 |
||
|
7
|
7
07130-06303-000
Bolt
|
07130-06303-000 |
— | ||
| replacement | |||||
|
7
|
7
07130-0630B-000 BoltBolt, magneto stator |
07130-0630B-000 |
from US $3.20 |
||
|
8
|
8
07130-06353-000
Bolt, ignition coil
|
07130-06353-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0635B-000 BOLTBolt, magneto stator |
07130-0635B-000 |
from US $0.91 |
||
|
9
|
9
09259-20012-000
Plug,engine oil filler
|
09259-20012-000 |
— | ||
| replacement | |||||
|
9
|
9
09259-20008-XC0 PLUG |
09259-20008-XC0 |
from US $5.58 |
||
|
10
|
10
09280-17003-000 O RING(D:3.1,ID:16.8)O ring, oil filler cap O ring; |
09280-17003-000 |
from US $1.51 |
||
|
11
|
11
11381-31E00-000 COVER,SIGNAL GENERATORCover, signal generator |
11381-31E00-000 |
from US $65.14 |
||
|
12
|
12
11491-17E01-000 GASKET,SIGNAL GEN COVERGasket, signal generator cover |
11491-17E01-000 |
from US $10.62 |
||
|
13
|
13
09106-06082-000 BOLT(6X22)Bolt (6x23); |
09106-06082-000 |
from US $3.20 |
||
|
14
|
14
09168-06024-000 GASKET(5.8X11X1.2)Gasket, rear final cover |
09168-06024-000 |
from US $1.52 |
||
|
15
|
15
11361-17E10-000
COVER,ENGINE SPROCKET
|
11361-17E10-000 |
— | ||
|
16
|
16
04211-09129-000 PINPin Pin; |
04211-09129-000 |
from US $0.96 |
||
|
17
|
17
09106-06083-000 BOLT(6X50)Bolt (6x50) Bolt (6x50); |
09106-06083-000 |
from US $6.82 |
||
