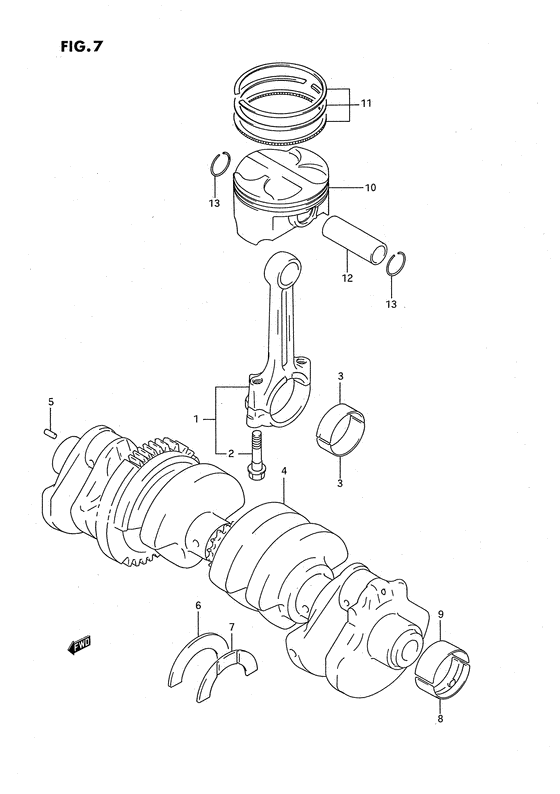

Crankshaft Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12160-17E00-000
Connecting rod assy
|
12160-17E00-000 |
— | ||
| replacement | |||||
|
1
|
1
12160-17E01-000 CONNECTING ROD ASSYRod assy, connecting |
12160-17E01-000 |
US $226.35 |
||
|
2
|
2
12163-27A52-000 BOLT,CONNECTING ROD |
12163-27A52-000 |
US $23.55 |
||
|
3
|
3
12164-17E01-0A0 Bearing,crank PinBearing, crank pin (green) Bearing, crank pin (green); |
12164-17E01-0A0 |
from US $14.88 |
||
|
3
|
3
12164-17E01-0B0 Bearing,crank PinBearing, crank pin (black) Bearing, crank pin (black); |
12164-17E01-0B0 |
from US $15.96 |
||
|
3
|
3
12164-17E01-0C0 Bearing, crank pin (brown)Bearing, crank pin (brown); |
12164-17E01-0C0 |
from US $16.80 |
||
|
3
|
3
12164-17E01-0D0 Bearing,crank PinBearing, crank pin (yellow) Bearing, crank pin (yellow); |
12164-17E01-0D0 |
from US $18.62 |
||
|
4
|
4
12000-17821-000
CRANKSHAFT SET
|
12000-17821-000 |
— | ||
|
5
|
5
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
6
|
6
12228-17E00-0D0 BEARING,CRANK THRUST(GREEN)Bearing, thrust rh (green) Bearing, thrust rh (green); |
12228-17E00-0D0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0A0 BEARING,CRANK THRUST(RED)Bearing, thrust lh (red); |
12228-17E00-0A0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0B0 BEARING,CRANK THRUST(BLACK)Bearing, thrust lh (black); |
12228-17E00-0B0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0C0 BEARING,CRANK THRUST(BLUE)Bearing, thrust lh (blue); |
12228-17E00-0C0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0D0 BEARING,CRANK THRUST(GREEN)Bearing, thrust rh (green) Bearing, thrust lh (green); |
12228-17E00-0D0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0E0 BEARING,CRANK THRUST(YELLOW)Bearing, thrust lh (yellow); |
12228-17E00-0E0 |
from US $4.41 |
||
|
7
|
7
12228-17E00-0F0 BEARING,CRANK THRUST(WHITE)Bearing, thrust lh (white); |
12228-17E00-0F0 |
from US $4.41 |
||
|
8
|
8
12229-17E00-0A0
BEARING,CRANKSHAFT(GREEN)
Bearing, crankshaft (green); Lower |
12229-17E00-0A0 |
— | ||
|
8
|
8
12229-17E00-0B0 BEARING,CRANKSHAFT(BLACK)Bearing, crankshaft (black) Bearing, crankshaft (black); |
12229-17E00-0B0 |
from US $11.20 |
||
|
8
|
8
12229-17E00-0C0 BEARING,CRANKSHAFT(BROWN)Bearing, crankshaft (brown) Bearing, crankshaft (brown); |
12229-17E00-0C0 |
US $13.18 |
||
|
8
|
8
12229-17E00-0D0
BEARING,CRANKSHAFT(YELLOW)
Bearing, crankshaft (yellow); |
12229-17E00-0D0 |
— | ||
|
9
|
9
12229-17E10-0A0 BEARING,CRANKSHAFT(GREEN)Bearing, crankshaft (green) Bearing, crankshaft (green); Upper |
12229-17E10-0A0 |
from US $7.40 |
||
|
9
|
9
12229-17E10-0B0 BEARING,CRANKSHAFT(BLACK)Bearing, crankshaft (black) Bearing, crankshaft (black); |
12229-17E10-0B0 |
from US $16.03 |
||
|
9
|
9
12229-17E10-0C0
BEARING,CRANKSHAFT(BROWN)
Bearing, crankshaft (brown); |
12229-17E10-0C0 |
— | ||
|
9
|
9
12229-17E10-0D0
Plate,crank(yel
Bearing, crankshaft (yellow); |
12229-17E10-0D0 |
— | ||
|
10
|
10
12111-17E11-0F0
Piston (70.00mm
|
12111-17E11-0F0 |
— | ||
|
10
|
10
12111-17E11-050
Piston (70.50mm
Piston (os:0.5); Opt |
12111-17E11-050 |
— | ||
|
10
|
10
12111-17E11-100
Piston (71.00mm
Piston (os:1.0); Opt |
12111-17E11-100 |
— | ||
|
11
|
11
12140-17E10-000
RING SET,PISTON
|
12140-17E10-000 |
— | ||
|
11
|
11
12140-17E10-050
Ring set,piston
Ring set, piston (os:0.5); Opt |
12140-17E10-050 |
— | ||
|
11
|
11
12140-17E10-100
Ring set, piston (os:1.0)
Opt |
12140-17E10-100 |
— | ||
|
12
|
12
12151-07D00-000 PIN,PISTONPin, piston |
12151-07D00-000 |
from US $14.45 |
||
|
13
|
13
09381-18003-000 CIRCLIP |
09381-18003-000 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
09381-18005-000 CIRCLIP |
09381-18005-000 |
from US $1.12 |
||
