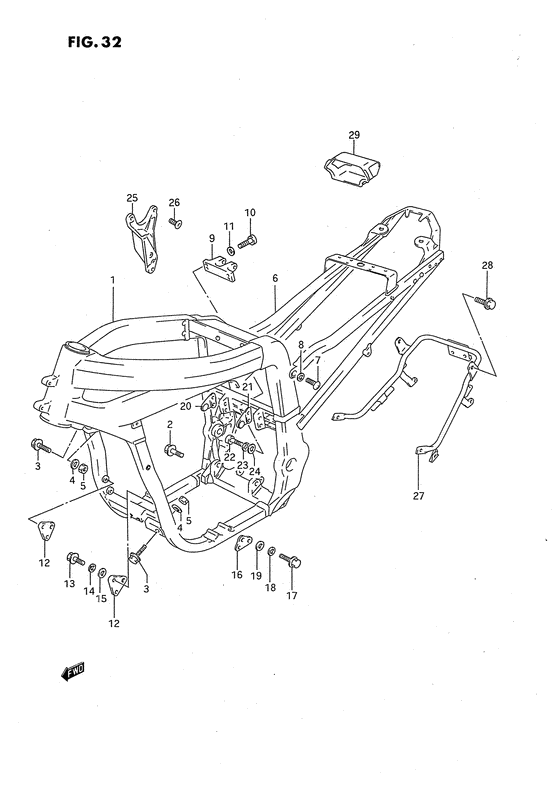

Frame Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41101-17881-000
Frame set(truck
|
41101-17881-000 |
— | ||
|
2
|
2
01550-10303-000
Bolt
Bolt, rh; |
01550-10303-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-1030B-000 BOLTBolt, axle housing rear Bolt, rh; |
01550-1030B-000 |
from US $5.07 |
||
|
2
|
2
01550-1030A-000 BOLTBolt, rh; |
01550-1030A-000 |
from US $1.12 |
||
|
3
|
3
01550-10453-000
Bolt
|
01550-10453-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-1045B-000 Bolt |
01550-1045B-000 |
from US $1.28 |
||
|
4
|
4
09160-10013-000
Washer (10.1*21*2.3)
|
09160-10013-000 |
— | ||
| replacement | |||||
|
4
|
4
09160-10123-000 WASHER(10.5X20X2.3)Washer |
09160-10123-000 |
from US $0.91 |
||
|
5
|
5
09159-10027-000 NUT |
09159-10027-000 |
from US $1.98 |
||
|
6
|
6
41200-17E50-000
Rail comp,seat
|
41200-17E50-000 |
— | ||
|
7
|
7
43529-17D00-000
Bolt,footrest b
|
43529-17D00-000 |
— | ||
| replacement | |||||
|
7
|
7
09139-10004-000 BOLT(10X27) |
09139-10004-000 |
from US $6.80 |
||
|
8
|
8
09164-10010-000 WASHERWasher; |
09164-10010-000 |
from US $6.58 |
||
|
9
|
9
41762-17E00-000
BRACKET,R.C.U.
|
41762-17E00-000 |
— | ||
|
10
|
10
09106-08056-000
BOLT(8X28)
|
09106-08056-000 |
— | ||
|
11
|
11
09164-08015-000 WASHERWasher; |
09164-08015-000 |
from US $1.52 |
||
|
12
|
12
41911-17E00-000
Plate,engine mo
|
41911-17E00-000 |
— | ||
|
13
|
13
09103-08255-000
Bolt
|
09103-08255-000 |
— | ||
| replacement | |||||
|
13
|
13
09103-08288-000 BOLT(8X25)Bolt, hook |
09103-08288-000 |
from US $5.46 |
||
|
14
|
14
08321-01083-000
Lock washer
Lock washer; |
08321-01083-000 |
— | ||
| replacements | |||||
|
14
|
14
08321-0108B-000 WASHER,LOCKLock washer; |
08321-0108B-000 |
from US $0.76 |
||
|
14
|
14
08321-0108A-000 WASHER,LOCKLock washer; |
08321-0108A-000 |
from US $0.80 |
||
|
15
|
15
09160-08010-000 Washer (8.2x20x1.6)Washer (8.2x20x1.6); |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
15
|
15
09160-08054-000 WASHER(8.5X20X1.6)Washer (8.2x20x1.6); |
09160-08054-000 |
from US $0.91 |
||
|
16
|
16
41921-17E00-000
Plate,engine mo
|
41921-17E00-000 |
— | ||
|
16
|
16
41931-17E00-000 PLATE,ENG MTG NO.2,RPlate, mount no.2 rh |
41931-17E00-000 |
from US $6.29 |
||
|
17
|
17
09103-08255-000
Bolt
|
09103-08255-000 |
— | ||
| replacement | |||||
|
17
|
17
09103-08288-000 BOLT(8X25)Bolt, hook |
09103-08288-000 |
from US $5.46 |
||
|
18
|
18
08321-01083-000
Lock washer
Lock washer; |
08321-01083-000 |
— | ||
| replacements | |||||
|
18
|
18
08321-0108B-000 WASHER,LOCKLock washer; |
08321-0108B-000 |
from US $0.76 |
||
|
18
|
18
08321-0108A-000 WASHER,LOCKLock washer; |
08321-0108A-000 |
from US $0.80 |
||
|
19
|
19
09160-08010-000 Washer (8.2x20x1.6)Washer (8.2x20x1.6); |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
19
|
19
09160-08054-000 WASHER(8.5X20X1.6)Washer (8.2x20x1.6); |
09160-08054-000 |
from US $0.91 |
||
|
20
|
20
41940-17E00-000
Plate,engine mt
|
41940-17E00-000 |
— | ||
|
21
|
21
41950-17E00-000 PLATE,ENG MTG NO.3,LPlate, engine mount no.3 lh |
41950-17E00-000 |
US $12.77 |
||
|
22
|
22
09106-08005-000 BOLT(8X22)Bolt, front |
09106-08005-000 |
from US $1.88 |
||
|
23
|
23
08321-01083-000
Lock washer
Lock washer; |
08321-01083-000 |
— | ||
| replacements | |||||
|
23
|
23
08321-0108B-000 WASHER,LOCKLock washer; |
08321-0108B-000 |
from US $0.76 |
||
|
23
|
23
08321-0108A-000 WASHER,LOCKLock washer; |
08321-0108A-000 |
from US $0.80 |
||
|
24
|
24
09160-08010-000 Washer (8.2x20x1.6)Washer; |
09160-08010-000 |
US $1.21 |
||
| replacement | |||||
|
24
|
24
09160-08054-000 WASHER(8.5X20X1.6)Washer; |
09160-08054-000 |
from US $0.91 |
||
|
25
|
25
41961-17E60-000
Plate,eng mt,up
|
41961-17E60-000 |
— | ||
|
25
|
25
41971-17E60-000
PLATE,ENGINE MOUNT UPR
|
41971-17E60-000 |
— | ||
|
26
|
26
09106-08112-000
Bolt
|
09106-08112-000 |
— | ||
| replacement | |||||
|
26
|
26
09106-08129-000 BOLT(8X25) |
09106-08129-000 |
from US $7.36 |
||
|
27
|
27
43980-17E04-000
Grip, rear
|
43980-17E04-000 |
— | ||
|
28
|
28
01550-08203-000
Bolt
|
01550-08203-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0820B-000 Bolt |
01550-0820B-000 |
from US $0.91 |
||
|
28
|
28
01550-0820A-000 BOLTBolt, funnel bracket |
01550-0820A-000 |
from US $0.96 |
||
|
29
|
29
47431-17E00-000
HOLDER,TOOL
|
47431-17E00-000 |
— | ||
