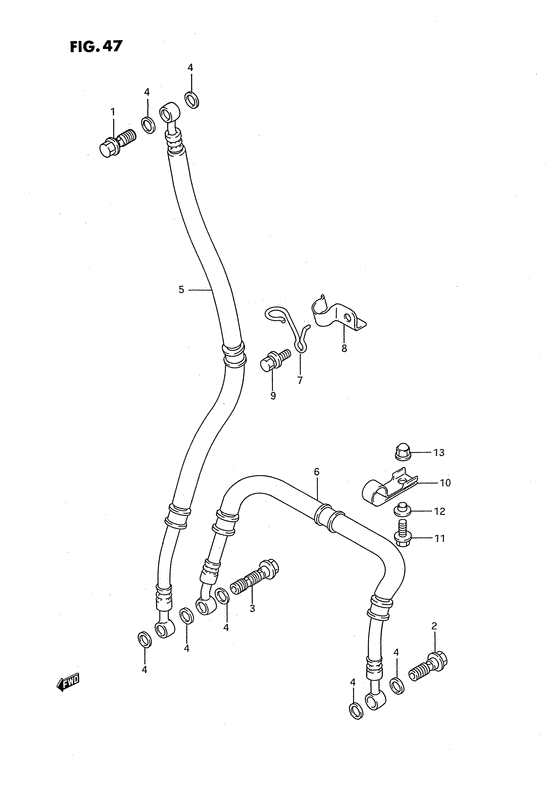

Front brake hose Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
09360-10039-000
Bolt
Bolt (10x1.00x22); |
09360-10039-000 |
— | ||
| replacement | |||||
|
1
|
1
09360-10061-000 Union bolt (10x22)Union bolt (10x22) Bolt (10x1.00x22); |
09360-10061-000 |
from US $6.24 |
||
|
2
|
2
09360-10040-000
Bolt
Bolt, lh (10x1.25x22); |
09360-10040-000 |
— | ||
| replacement | |||||
|
2
|
2
09360-10062-000 UNIONBolt, upper Bolt, lh (10x1.25x22); |
09360-10062-000 |
from US $4.64 |
||
|
3
|
3
09360-10038-000
Bolt
Bolt, rh (10x1.25x36); |
09360-10038-000 |
— | ||
| replacement | |||||
|
3
|
3
09360-10063-000 UNIONBolt, rh (10x1.25x36); |
09360-10063-000 |
from US $10.01 |
||
|
4
|
4
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer; |
09161-10009-000 |
from US $1.06 |
||
|
5
|
5
59480-17E20-000
HOSE,FR BRAKE NO.1
|
59480-17E20-000 |
— | ||
|
6
|
6
59240-46E00-000
Hose comp,front
|
59240-46E00-000 |
— | ||
|
7
|
7
59268-46E01-000
Guide,fr brake
|
59268-46E01-000 |
— | ||
|
8
|
8
59266-38D00-000 CLAMP,FR BRAKE HOSE UPRClamp, brake hose no.1 Clamp, brake hose no.1; |
59266-38D00-000 |
from US $13.92 |
||
|
9
|
9
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
59268-45D00-000 CLAMP,FR BRAKE HOSE NO.2Clamp, brake hose no.2; |
59268-45D00-000 |
from US $5.85 |
||
|
11
|
11
01550-06163-000
Bolt
Screw; |
01550-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
01550-0616B-000 BOLTScrew; |
01550-0616B-000 |
from US $0.76 |
||
|
11
|
11
01550-0616A-000 BOLTScrew; |
01550-0616A-000 |
from US $0.76 |
||
|
12
|
12
09169-06037-000 WASHER |
09169-06037-000 |
from US $3.35 |
||
|
13
|
13
09159-06038-000 NUT |
09159-06038-000 |
from US $7.63 |
||
