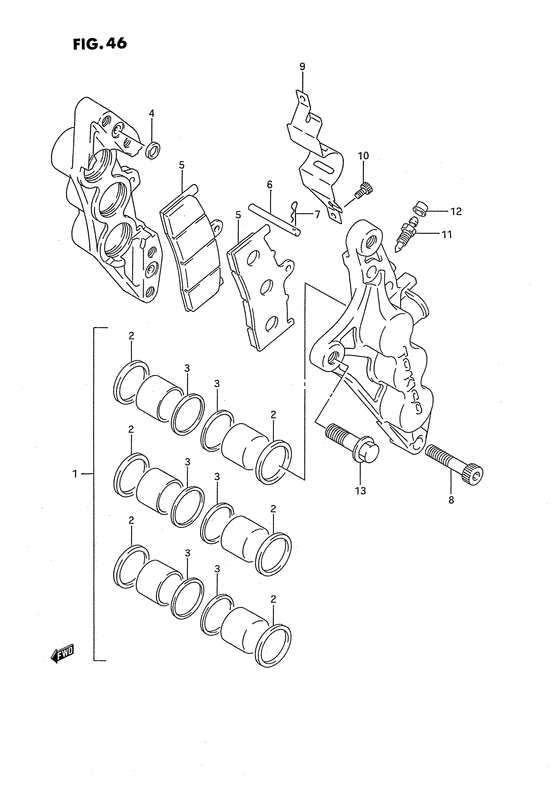

Front calipers Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
59100-46E00-000
Caliper assy, rh
|
59100-46E00-000 |
— | ||
| replacements | |||||
|
|
59100-46820-000
Pad set
|
59100-46820-000 |
— | ||
|
|
59100-46E21-999
CALIPER ASSY,FR,R
|
59100-46E21-999 |
— | ||
|
|
59300-46E00-000
Caliper assy, lh
|
59300-46E00-000 |
— | ||
| replacements | |||||
|
|
59100-46820-000
Pad set
|
59100-46820-000 |
— | ||
|
|
59300-46E21-999
CALIPER ASSY,FR,L
|
59300-46E21-999 |
— | ||
|
1
|
1
59100-46810-000
Piston set
|
59100-46810-000 |
— | ||
| replacement | |||||
|
1
|
1
59100-46811-000
PISTON SET
|
59100-46811-000 |
— | ||
|
2
|
2
59107-04A00-000
Seal piston
Seal, piston; |
59107-04A00-000 |
— | ||
| replacement | |||||
|
2
|
2
59107-40F00-000 SEAL,PISTONSeal, piston; |
59107-40F00-000 |
from US $12.56 |
||
|
3
|
3
59108-04A00-000 SEAL,WIPERSeal,wiper Seal, wiper; |
59108-04A00-000 |
from US $12.36 |
||
|
4
|
4
69107-34200-000 SEAL,JOINT |
69107-34200-000 |
from US $14.43 |
||
|
5
|
5
59130-46E00-000
Pad
|
59130-46E00-000 |
— | ||
| replacement | |||||
|
5
|
5
59100-46820-000
Pad set
|
59100-46820-000 |
— | ||
|
6
|
6
69141-45000-000 PIN,PADPin; |
69141-45000-000 |
from US $2.99 |
||
|
7
|
7
69142-45000-000 CLIP,PAD PINClip Clip; |
69142-45000-000 |
from US $2.58 |
||
|
8
|
8
59145-00A00-000 BOLT,CALIPERBolt, housing |
59145-00A00-000 |
from US $5.85 |
||
|
9
|
9
59151-46E00-000 COVER,CALIPER |
59151-46E00-000 |
from US $19.50 |
||
|
10
|
10
59153-22D00-000 SCREW |
59153-22D00-000 |
from US $1.92 |
||
|
11
|
11
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
12
|
12
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
| replacement | |||||
|
12
|
12
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
13
|
13
01550-10303-000
Bolt
|
01550-10303-000 |
— | ||
| replacements | |||||
|
13
|
13
01550-1030B-000 BOLTBolt, axle housing rear |
01550-1030B-000 |
from US $5.07 |
||
|
13
|
13
01550-1030A-000 BOLT |
01550-1030A-000 |
from US $1.12 |
||
