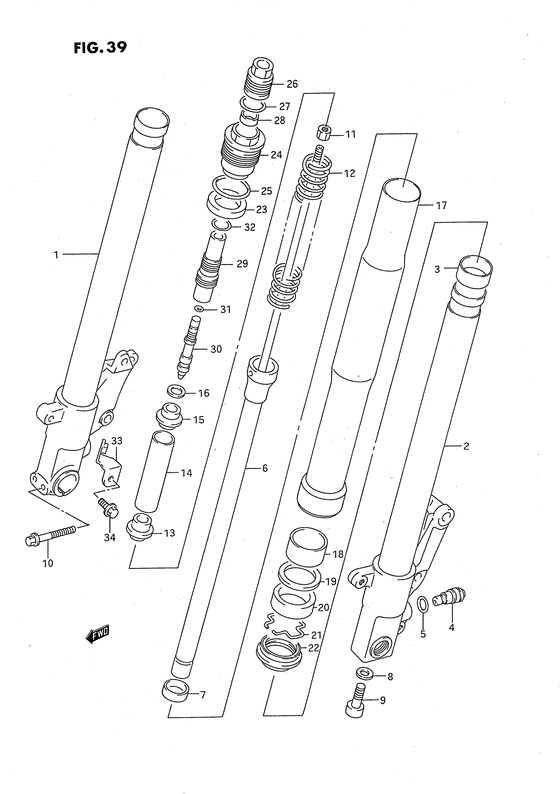

Front damper Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
51103-17E20-000
DAMPER ASSY,FR FORK,R
|
51103-17E20-000 |
— | ||
|
|
51104-17E20-000
DAMPER ASSY,FR FORK,L
|
51104-17E20-000 |
— | ||
|
1
|
1
51110-17E20-000
TUBE,INNER,R
|
51110-17E20-000 |
— | ||
|
2
|
2
51120-17E20-000
TUBE,INNER,L
|
51120-17E20-000 |
— | ||
|
3
|
3
51121-17C00-000 Bush,slider |
51121-17C00-000 |
US $29.55 |
||
| replacement | |||||
|
3
|
3
51121-07J00-000 Bush,slider |
51121-07J00-000 |
from US $7.60 |
||
|
4
|
4
51830-07D00-000
PIECE,ADJUSTER
|
51830-07D00-000 |
— | ||
|
5
|
5
09280-14003-000 O ring |
09280-14003-000 |
from US $0.99 |
||
| replacement | |||||
|
5
|
5
09280-14011-000 O RING(D:2.5,ID:13.8)O ring (d:2.5 id:13.8) |
09280-14011-000 |
from US $2.13 |
||
|
6
|
6
52110-17E20-000
Damper, front
|
52110-17E20-000 |
— | ||
|
7
|
7
51815-17D00-000 PLATE,CENTERINGPlate, centerring Plate, centerring; |
51815-17D00-000 |
US $13.56 |
||
|
8
|
8
09161-10009-000 WASHER(10X15X1.5)Lock washer |
09161-10009-000 |
from US $1.06 |
||
|
9
|
9
51147-17C00-000 Bolt |
51147-17C00-000 |
from US $15.36 |
||
|
10
|
10
01550-08457-000 BoltBolt, cyl head no.5 Bolt, axle holdler rh; |
01550-08457-000 |
from US $1.06 |
||
|
11
|
11
51827-17C00-000 NUTNut, lod; |
51827-17C00-000 |
US $9.86 |
||
|
12
|
12
51171-17E20-000 SPRING,MAIN |
51171-17E20-000 |
US $145.20 |
||
|
13
|
13
51172-17E00-000 JOINT,SPRINGJoint, spring lower Joint, spring lower; |
51172-17E00-000 |
from US $16.80 |
||
|
14
|
14
51176-17E00-000
SPACER,SPRING
|
51176-17E00-000 |
— | ||
|
15
|
15
51175-22D00-000 GUIDE,SPRING UPRJoint, spring upper Joint, spring upper; |
51175-22D00-000 |
from US $13.22 |
||
|
16
|
16
51172-34370-000 GUIDE,SPRINGWasher, joint Washer, joint; |
51172-34370-000 |
from US $2.24 |
||
|
17
|
17
51131-17E20-000
TUBE,OUTER
|
51131-17E20-000 |
— | ||
|
18
|
18
51152-17E20-000
Bush,guide
|
51152-17E20-000 |
— | ||
|
19
|
19
51168-17C00-000 SPACER,SEAL |
51168-17C00-000 |
from US $4.75 |
||
|
20
|
20
51153-14D00-000 SEAL,OILSeal, oil; |
51153-14D00-000 |
from US $15.96 |
||
|
21
|
21
51556-38B00-000 CIRCLIP,FORK OIL SEALRing, oil seal stopper Ring, stopper; |
51556-38B00-000 |
from US $1.98 |
||
|
22
|
22
51173-29E00-000 SEAL,DUSTSeal, dust; |
51173-29E00-000 |
from US $12.31 |
||
|
23
|
23
51193-17D00-000 RUBBER,SEAT |
51193-17D00-000 |
from US $10.88 |
||
|
24
|
24
51189-18D00-000 BOLT,FORK |
51189-18D00-000 |
US $64.40 |
||
|
25
|
25
51187-08D00-000 O RING,FORK BOLTO ring, fork bolt O ring, fork bolt; |
51187-08D00-000 |
from US $2.58 |
||
|
26
|
26
51828-17D00-000
ADJUSTER,SPRING
|
51828-17D00-000 |
— | ||
|
27
|
27
51199-17D00-000 O RINGO ring, adjuster outer O ring, adjuster outer; |
51199-17D00-000 |
from US $1.82 |
||
|
28
|
28
51823-22D30-000 PLATE,SPRING ADJUSTERPlate, spring adjuster |
51823-22D30-000 |
from US $39.20 |
||
|
29
|
29
51829-17E00-000
Case,adjuster
|
51829-17E00-000 |
— | ||
|
30
|
30
51821-17E20-000
PIECE,ADJUSTER
|
51821-17E20-000 |
— | ||
|
31
|
31
09280-03002-000 O RING(D:1.9,ID:3.8)O ring, stopper |
09280-03002-000 |
from US $1.98 |
||
|
32
|
32
51837-17D00-000 RING,STOPPER |
51837-17D00-000 |
from US $2.24 |
||
|
33
|
33
51590-17D10-000
Plate,front fen
Plate, front fender rh; |
51590-17D10-000 |
— | ||
| replacement | |||||
|
33
|
33
51590-17D1V-000
PLATE,FR FENDER,L
Plate, front fender rh; |
51590-17D1V-000 |
— | ||
|
33
|
33
51580-17D10-000
Plate,front fen
|
51580-17D10-000 |
— | ||
| replacement | |||||
|
33
|
33
51580-17D1V-000
PLATE,FR FENDER,R
|
51580-17D1V-000 |
— | ||
|
34
|
34
01550-08127-000 BOLTBolt, clamp |
01550-08127-000 |
from US $4.49 |
||
