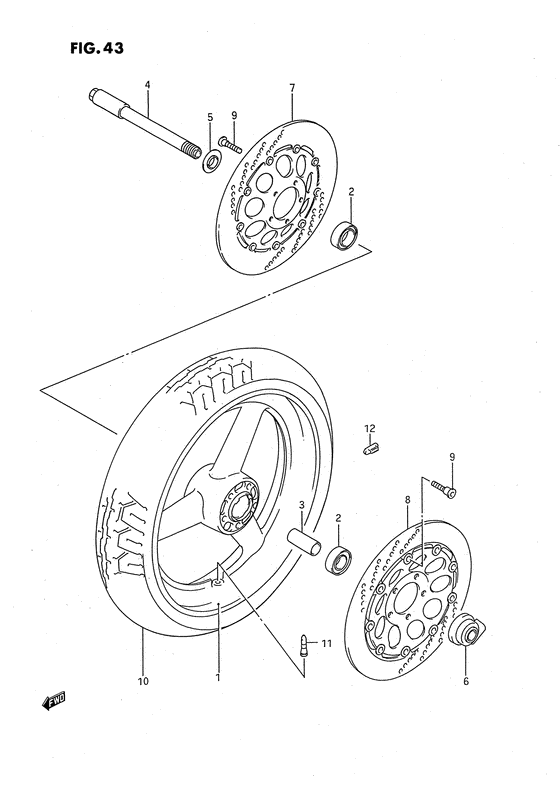

Front wheel Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
54111-17E10-1MJ
Wheel, front (17xmt3.50) (blue)
|
54111-17E10-1MJ |
— | ||
| replacement | |||||
|
1
|
1
54111-17E12-1MJ
WHEEL,FR(17M/CXMT3.50)
|
54111-17E12-1MJ |
— | ||
|
2
|
2
08123-62047-000
BEARING
|
08123-62047-000 |
— | ||
| replacement | |||||
|
2
|
2
08123-6204B-000 Bearing,rear Wheel Hub |
08123-6204B-000 |
from US $12.31 |
||
|
3
|
3
09180-20103-000 SPACER(20.8X27.2X74)Spacer (20.8x27.2x74) |
09180-20103-000 |
from US $30.12 |
||
|
4
|
4
54711-17D00-000
AXLE,FR
|
54711-17D00-000 |
— | ||
|
5
|
5
54740-17C00-000 SPACER,FR HUB BEARING,RSpacer, bearing rh |
54740-17C00-000 |
from US $11.89 |
||
|
6
|
6
54600-17C01-000 BOX ASSY,SPEEDOMETER GEARBox assy, speedometer gear |
54600-17C01-000 |
from US $81.70 |
||
|
7
|
7
59210-17E00-000
Disc comp,front
|
59210-17E00-000 |
— | ||
|
8
|
8
59220-17E00-000
DISC,FR BRAKE,L
|
59220-17E00-000 |
— | ||
|
9
|
9
09106-08125-000
Bolt (8x33)
Bolt; |
09106-08125-000 |
— | ||
| replacement | |||||
|
9
|
9
09106-08148-000 BOLT(8X33)Bolt; |
09106-08148-000 |
from US $1.98 |
||
|
10
|
10
55110-17E30-000
Tire fr. 120/70
Tire, front (120/70zr17 d204fg (dunlop); 1 |
55110-17E30-000 |
— | ||
|
11
|
11
43130-24A11-000
Valve assy, wheel rim (tr412)
|
43130-24A11-000 |
— | ||
| replacement | |||||
|
11
|
11
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
12
|
12
55411-00A00-000
Balancer, wheel (10g)
Balancer (10g); |
55411-00A00-000 |
— | ||
| replacement | |||||
|
12
|
12
55411-17G00-000 BALANCER,WHEEL(10G)Balanceer, wheel (no. 1) Balancer (10g); |
55411-17G00-000 |
from US $2.56 |
||
|
12
|
12
55412-00A01-000
Balancer, wheel (20g)
|
55412-00A01-000 |
— | ||
| replacement | |||||
|
12
|
12
55412-17G00-000 BALANCER,WHEEL(20G)Balanceer, wheel (no. 2) |
55412-17G00-000 |
from US $2.56 |
||
|
12
|
12
55413-00A01-000
Balancer, wheel (30g)
|
55413-00A01-000 |
— | ||
