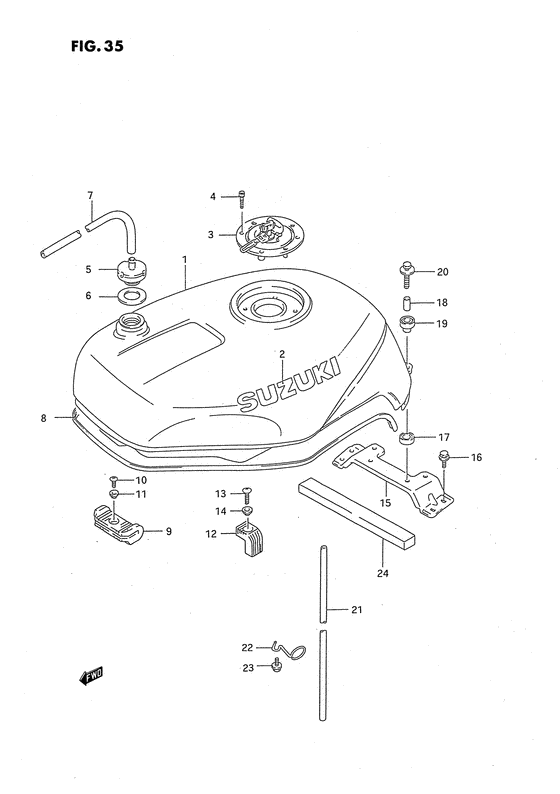

Fuel tank Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-17EG0-1LE
Tank assy, fuel (blue)
|
44100-17EG0-1LE |
— | ||
| replacement | |||||
|
1
|
1
44100-17ES0-1LE
New Genuine Part
|
44100-17ES0-1LE |
— | ||
|
1
|
1
44100-17EI0-1LE
Tank assy, fuel (blue)
E22 |
44100-17EI0-1LE |
— | ||
| replacement | |||||
|
1
|
1
44100-17ES0-1LE
New Genuine Part
E22 |
44100-17ES0-1LE |
— | ||
|
2
|
2
68111-12C00-0JW
Emblem (white)
Emblem (white); |
68111-12C00-0JW |
— | ||
| replacement | |||||
|
2
|
2
68111-12C30-0JW EMBLEM,FUEL TANKEmblem (white); |
68111-12C30-0JW |
from US $28.97 |
||
|
3
|
3
44201-01851-000
Cap assy, fuel tank
|
44201-01851-000 |
— | ||
| replacement | |||||
|
3
|
3
44201-01852-000
CAP SET,FUEL TANK
|
44201-01852-000 |
— | ||
|
4
|
4
09106-05017-000 BOLT(5X20) |
09106-05017-000 |
from US $1.06 |
||
|
5
|
5
44240-06B10-000 PLUG,FUEL TANK BREATHERPlug,breather |
44240-06B10-000 |
from US $25.21 |
||
|
6
|
6
09168-12012-000 GASKET(12.5X20X2.5) |
09168-12012-000 |
from US $1.12 |
||
|
7
|
7
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->70); |
09352-50823-600 |
— | ||
| replacements | |||||
|
7
|
7
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->70); |
44420-44AR0-000 |
US $11.95 |
||
|
7
|
7
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->70); |
09352-50005-600 |
US $4.10 |
||
|
8
|
8
68241-17E00-000
Molding, fuel tank
|
68241-17E00-000 |
— | ||
| replacement | |||||
|
8
|
8
68241-04X50-00B MOLDING |
68241-04X50-00B |
from US $15.96 |
||
|
9
|
9
44511-41C00-000
CUSHION,FUEL TANK FR
|
44511-41C00-000 |
— | ||
|
10
|
10
02142-05103-000
Screw 5x10
Screw; |
02142-05103-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.76 |
||
|
11
|
11
09169-05012-000 WASHER |
09169-05012-000 |
from US $3.25 |
||
|
12
|
12
44545-33C01-000
CUSHION,TANK SIDE
|
44545-33C01-000 |
— | ||
|
13
|
13
02142-06203-000
Screw
|
02142-06203-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0620A-000 SCREW |
02142-0620A-000 |
from US $0.68 |
||
|
14
|
14
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
| replacement | |||||
|
14
|
14
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
15
|
15
44530-17E11-000
Bracket,fuel ta
|
44530-17E11-000 |
— | ||
|
16
|
16
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
16
|
16
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
17
|
17
09320-14017-000 CUSHIONCushion, rear upper Cushion, rear lower; |
09320-14017-000 |
from US $1.12 |
||
|
18
|
18
09180-06072-000
Spacer (6.4x9x18)
|
09180-06072-000 |
— | ||
| replacement | |||||
|
18
|
18
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) |
09180-06271-000 |
from US $1.51 |
||
|
19
|
19
09320-10038-000 CUSHIONCushion, lower Cushion, rear upper; |
09320-10038-000 |
from US $1.08 |
||
|
20
|
20
01500-06353-000
Bolt
|
01500-06353-000 |
— | ||
| replacements | |||||
|
20
|
20
01500-0635B-000 Bolt |
01500-0635B-000 |
from US $0.76 |
||
|
20
|
20
01500-0635A-000 Bolt |
01500-0635A-000 |
from US $3.47 |
||
|
21
|
21
09352-50823-00A
Hose, vacuum (5x8.2x1000->30)
|
09352-50823-00A |
— | ||
| replacements | |||||
|
21
|
21
09352-50823-00B
HOSE(5X8.2X2000)
|
09352-50823-00B |
— | ||
|
21
|
21
09352-50005-00B Hose(5X8.2X2000) |
09352-50005-00B |
from US $9.27 |
||
|
22
|
22
44481-17E01-000
Guide,drain hos
|
44481-17E01-000 |
— | ||
|
23
|
23
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
23
|
23
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
24
|
24
13841-17E00-000
CUSHION,AIR SEAL
|
13841-17E00-000 |
— | ||
