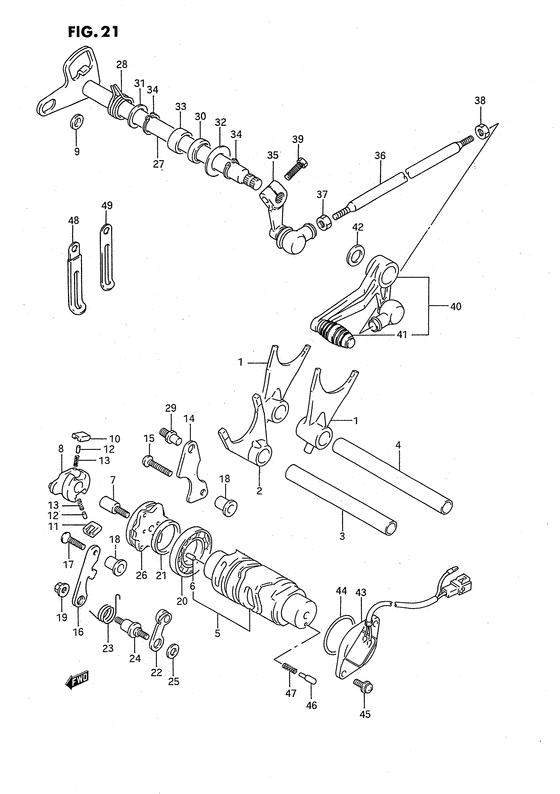

Gear shifting Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25211-17E00-000
Fork, gear shifting no.1
|
25211-17E00-000 |
— | ||
| replacement | |||||
|
1
|
1
25211-17E02-000 FORK,GEAR SHIFT |
25211-17E02-000 |
from US $59.28 |
||
|
2
|
2
25231-17E00-000
Fork, gear shifting no.3
|
25231-17E00-000 |
— | ||
| replacement | |||||
|
2
|
2
25231-35F00-000 FORK,GEAR SHIFT NO.3 |
25231-35F00-000 |
from US $68.64 |
||
|
3
|
3
25411-26D01-000 SHAFT,GEAR SHIFT FORKShaft, fork (l:110); |
25411-26D01-000 |
from US $12.07 |
||
|
4
|
4
25411-27A00-000 SHAFT,GEAR SHIFT FORK(L:128)Shaft, gear shift fork (l:128) Shaft, fork (l:128); |
25411-27A00-000 |
from US $15.12 |
||
|
5
|
5
25310-17E01-000
Cam, gear shifting
|
25310-17E01-000 |
— | ||
| replacement | |||||
|
5
|
5
25310-17E02-000 CAM,GEAR SHIFT |
25310-17E02-000 |
from US $207.76 |
||
|
6
|
6
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
7
|
7
25312-12C00-000 PIN,SHIFT CAM DRIVEN GEARStopper, shift cam Pin, shift cam driven gear; |
25312-12C00-000 |
from US $4.23 |
||
|
8
|
8
25322-33C00-000
Shifter, cam
|
25322-33C00-000 |
— | ||
| replacement | |||||
|
8
|
8
25322-33C01-000 SHIFTER,GEAR SHIFT CAMShifter, cam |
25322-33C01-000 |
from US $40.85 |
||
|
9
|
9
09180-07014-000 SPACER(7X10X5)Roller |
09180-07014-000 |
from US $6.58 |
||
|
10
|
10
25323-34201-000 PAWL,GEAR SHIFT NO.1Pawl, no.1 Pawl, no.1; |
25323-34201-000 |
from US $6.23 |
||
|
11
|
11
25324-34201-000 PAWL,GEAR SHIFT NO.2Pawl, no.2 Pawl, no.2; |
25324-34201-000 |
from US $6.23 |
||
|
12
|
12
09261-05003-000 PIN(5X8)Pin |
09261-05003-000 |
from US $1.22 |
||
|
13
|
13
09440-04003-000 SPRINGSpring; |
09440-04003-000 |
from US $1.06 |
||
|
14
|
14
25331-26D00-000
LIFTER,GEAR SHIFT PAWL
|
25331-26D00-000 |
— | ||
|
15
|
15
02112-06303-000
Screw
Screw; |
02112-06303-000 |
— | ||
| replacements | |||||
|
15
|
15
02112-0630B-000 SCREWScrew; |
02112-0630B-000 |
US $0.76 |
||
|
15
|
15
02112-0630A-000 SCREWScrew; |
02112-0630A-000 |
from US $0.80 |
||
|
16
|
16
25341-17E00-000
GUIDE,GEAR SHIFT CAM
|
25341-17E00-000 |
— | ||
|
17
|
17
02122-06303-000
Screw
|
02122-06303-000 |
— | ||
| replacement | |||||
|
17
|
17
02122-0630B-000 SCREW |
02122-0630B-000 |
from US $3.25 |
||
|
18
|
18
09180-06202-000
SPACER(6.1X10X16)
|
09180-06202-000 |
— | ||
|
19
|
19
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
19
|
19
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
20
|
20
09262-25006-000 BEARING(25X47X8)Bearing (25x47x8) Bearing (25x47x8); |
09262-25006-000 |
from US $14.08 |
||
|
21
|
21
09160-25059-000 WASHER(25X32X3)Washer (25x32x3); |
09160-25059-000 |
from US $1.60 |
||
|
22
|
22
25350-26D01-000 STOPPER,GEAR SHIFT CAMStopper, shift cam |
25350-26D01-000 |
from US $10.08 |
||
|
23
|
23
25355-26D10-000
Spring
|
25355-26D10-000 |
— | ||
| replacement | |||||
|
23
|
23
25355-26D21-000 SPRING,STOPPER ARM |
25355-26D21-000 |
from US $4.20 |
||
|
24
|
24
25356-12C00-000 SUPPORT,CAM STOPPER ARMSupport, cam stopper Support, stopper; |
25356-12C00-000 |
from US $7.84 |
||
|
25
|
25
08211-06141-000 WASHERWasher |
08211-06141-000 |
from US $2.52 |
||
|
26
|
26
25380-12B00-000
Plate comp,gear
|
25380-12B00-000 |
— | ||
|
27
|
27
25510-17E10-000
SHAFT,GEAR SHIFT
|
25510-17E10-000 |
— | ||
|
28
|
28
09444-20002-000
Spring
|
09444-20002-000 |
— | ||
| replacement | |||||
|
28
|
28
09444-20003-000 SPRING |
09444-20003-000 |
from US $9.55 |
||
|
29
|
29
25671-01000-000
Change arm stop
Stopper, arm; |
25671-01000-000 |
— | ||
| replacement | |||||
|
29
|
29
25671-01011-000 STOPPER,GEAR SHIFT ARMStopper, arm; |
25671-01011-000 |
from US $1.92 |
||
|
30
|
30
09283-14006-000 SEAL,OIL(14X22X6) |
09283-14006-000 |
from US $3.74 |
||
|
31
|
31
08211-14221-000 Washer, upper (t:1.0) |
08211-14221-000 |
US $2.38 |
||
| replacement | |||||
|
31
|
31
09181-14167-000 SHIM(14X22X1)Washer, gear shift rh |
09181-14167-000 |
from US $1.60 |
||
|
32
|
32
09160-14016-000 WASHER(14X29X0.8)Washer, gear shift lh Washer, lh; |
09160-14016-000 |
from US $1.67 |
||
|
33
|
33
09263-14027-000 BEARING(14X20X12) |
09263-14027-000 |
from US $4.39 |
||
|
34
|
34
08331-31146-000
Circlip
|
08331-31146-000 |
— | ||
| replacement | |||||
|
34
|
34
08331-3114A-000 CIRCLIPCirclip, sub t/m gr shift |
08331-3114A-000 |
from US $0.91 |
||
|
35
|
35
25520-22A00-000
ARM,GEAR SHIFT LINK
Arm, gear shift link; |
25520-22A00-000 |
— | ||
| replacement | |||||
|
35
|
35
25520-22A01-000 Arm,gear Shift LinkArm, gear shift link; |
25520-22A01-000 |
from US $33.30 |
||
|
36
|
36
25525-17E10-000
Rod, gear shift link (l:235)
|
25525-17E10-000 |
— | ||
| replacement | |||||
|
36
|
36
25525-17E11-000 ROD,GEAR SHIFT LINK |
25525-17E11-000 |
from US $16.03 |
||
|
37
|
37
09140-06011-000 NUTNut Nut; |
09140-06011-000 |
from US $1.60 |
||
|
38
|
38
08310-00067-000 NUT |
08310-00067-000 |
from US $0.76 |
||
|
39
|
39
01500-06207-000 BOLT |
01500-06207-000 |
from US $0.76 |
||
|
40
|
40
25600-17C03-000
Lever assy, gear shifting
|
25600-17C03-000 |
— | ||
| replacements | |||||
|
40
|
40
25600-33E00-000
LEVER ASSY,GEAR SHIFT
|
25600-33E00-000 |
— | ||
|
40
|
40
25600-33E01-000 Lever Assy,gear Shift |
25600-33E01-000 |
from US $192.78 |
||
|
41
|
41
25652-16500-000
RUBBER,GEAR SHIFT PEDAL
Cover; |
25652-16500-000 |
— | ||
| replacement | |||||
|
41
|
41
25652-16510-000 Rubber,gear Shift PedalCover; |
25652-16510-000 |
from US $3.34 |
||
|
42
|
42
09160-18022-000 WASHER(18X24X1)Washer (18x24x1); |
09160-18022-000 |
from US $1.37 |
||
|
43
|
43
37730-31E00-000
Body, gear shifting switch
Body, gear shifting switch; |
37730-31E00-000 |
— | ||
| replacement | |||||
|
43
|
43
37730-31E01-000
BASE ASSY,GEAR SHIFT TERMINAL
Body, gear shifting switch; |
37730-31E01-000 |
— | ||
|
44
|
44
09280-35006-000 O RING(D:2.4,ID:35.5)O-ring, gear shift sw O ring (d:2.4,id:35.5); |
09280-35006-000 |
from US $2.08 |
||
|
45
|
45
02112-75163-000
Screw
|
02112-75163-000 |
— | ||
| replacements | |||||
|
45
|
45
02112-7516B-000 SCREW |
02112-7516B-000 |
from US $0.96 |
||
|
45
|
45
02112-7516A-000 SCREWScrew, gear shift |
02112-7516A-000 |
from US $0.96 |
||
|
46
|
46
09209-05011-000 PIN(5X15.5)Contact Contact; |
09209-05011-000 |
from US $1.51 |
||
|
47
|
47
09440-04010-000 SPRINGSpring; |
09440-04010-000 |
from US $1.06 |
||
|
48
|
48
09404-06401-000
Clamp, oil hose
|
09404-06401-000 |
— | ||
| replacements | |||||
|
48
|
48
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
48
|
48
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
|
48
|
48
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
48
|
48
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
49
|
49
09404-06426-000
Clamp (l:95)
|
09404-06426-000 |
— | ||
| replacements | |||||
|
49
|
49
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
49
|
49
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
49
|
49
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
49
|
49
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
