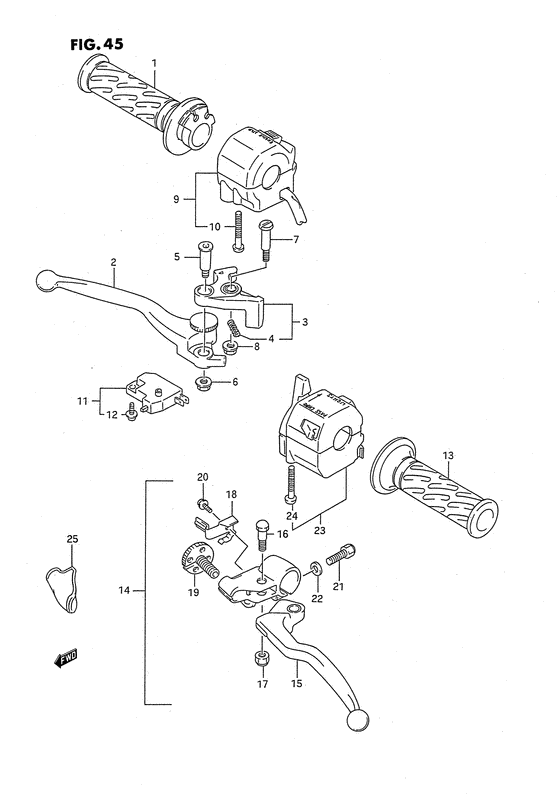

Handle switch Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-22D01-000
Grip, throttle
|
57110-22D01-000 |
— | ||
| replacement | |||||
|
1
|
1
57110-22D03-000 GRIP,THROTTLE |
57110-22D03-000 |
from US $30.40 |
||
|
2
|
2
57420-32C00-000 LEVER,ADJUSTLever, adjust Lever, adjust; |
57420-32C00-000 |
from US $35.72 |
||
|
3
|
3
57430-40C00-000
Knocker
|
57430-40C00-000 |
— | ||
| replacement | |||||
|
3
|
3
57430-40C10-000 RNOCKER |
57430-40C10-000 |
from US $37.90 |
||
|
4
|
4
57438-32C00-000 SPRING |
57438-32C00-000 |
from US $3.53 |
||
|
5
|
5
57437-32C00-000
Bolt
|
57437-32C00-000 |
— | ||
| replacement | |||||
|
5
|
5
57437-32C01-000 BOLT,LEVER |
57437-32C01-000 |
from US $5.59 |
||
|
6
|
6
08319-31065-000
Nut
|
08319-31065-000 |
— | ||
| replacement | |||||
|
6
|
6
08319-3106A-000 NUT |
08319-3106A-000 |
from US $1.44 |
||
|
7
|
7
57431-17C00-000 BOLT,LEVER PIVOTBolt, pivot Bolt, lever; |
57431-17C00-000 |
from US $6.56 |
||
|
8
|
8
08316-16064-000
Nut
|
08316-16064-000 |
— | ||
| replacement | |||||
|
8
|
8
08316-1006B-000 NUT |
08316-1006B-000 |
from US $0.76 |
||
|
9
|
9
37200-17E12-000
Switch assy, handle rh
|
37200-17E12-000 |
— | ||
| replacement | |||||
|
9
|
9
37200-26E10-000
SWITCH ASSY,HANDLE,R
|
37200-26E10-000 |
— | ||
|
10
|
10
02112-05455-000
Screw
|
02112-05455-000 |
— | ||
| replacement | |||||
|
10
|
10
02112-0545B-000 SCREW |
02112-0545B-000 |
from US $2.08 |
||
|
11
|
11
57460-17C00-000
Switch assy, stop
Switch assy, stop; |
57460-17C00-000 |
— | ||
| replacements | |||||
|
11
|
11
57460-14J01-000
SWITCH ASSY,FR BRAKE
Switch assy, stop; |
57460-14J01-000 |
— | ||
|
11
|
11
57460-14J02-000 Switch Assy,stopSwitch assy, stop; |
57460-14J02-000 |
US $51.90 |
||
|
12
|
12
57465-17C00-000 SCREW |
57465-17C00-000 |
from US $1.52 |
||
|
13
|
13
57211-22D00-000
Grip,l
|
57211-22D00-000 |
— | ||
| replacement | |||||
|
13
|
13
57211-22D02-291 GRIP,L(BLACK) |
57211-22D02-291 |
from US $11.10 |
||
|
14
|
14
57500-32C01-000
Lever assy,clutch
|
57500-32C01-000 |
— | ||
|
15
|
15
57620-27A31-000 LEVER,CLUTCHLever, clutch; |
57620-27A31-000 |
from US $22.80 |
||
|
16
|
16
57431-49110-000 BOLT,LEVER PIVOTBolt, pivot |
57431-49110-000 |
from US $6.16 |
||
|
17
|
17
08319-21065-000
Nut
|
08319-21065-000 |
— | ||
| replacement | |||||
|
17
|
17
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
18
|
18
57644-20A02-000
ADJUST,SPRING
|
57644-20A02-000 |
— | ||
|
19
|
19
57641-20A03-000
Adjuster,lock
Nut, lock; |
57641-20A03-000 |
— | ||
| replacement | |||||
|
19
|
19
57641-33E21-000 NUT,ADJUSTERNut, lock; |
57641-33E21-000 |
from US $25.84 |
||
|
20
|
20
02112-74083-000
Screw
|
02112-74083-000 |
— | ||
| replacement | |||||
|
20
|
20
02112-7408B-000 SCREW |
02112-7408B-000 |
from US $0.91 |
||
|
21
|
21
01204-06204-000 BOLT |
01204-06204-000 |
from US $3.71 |
||
|
22
|
22
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
22
|
22
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
23
|
23
37400-17E11-000
Switch assy, handle lh
|
37400-17E11-000 |
— | ||
| replacement | |||||
|
23
|
23
37400-17E20-000
SWITCH ASSY,HANDLE,L
|
37400-17E20-000 |
— | ||
|
24
|
24
02112-05455-000
Screw
|
02112-05455-000 |
— | ||
| replacement | |||||
|
24
|
24
02112-0545B-000 SCREW |
02112-0545B-000 |
from US $2.08 |
||
|
25
|
25
57661-20A01-000
COVER,CLUTCH LEVER
|
57661-20A01-000 |
— | ||
