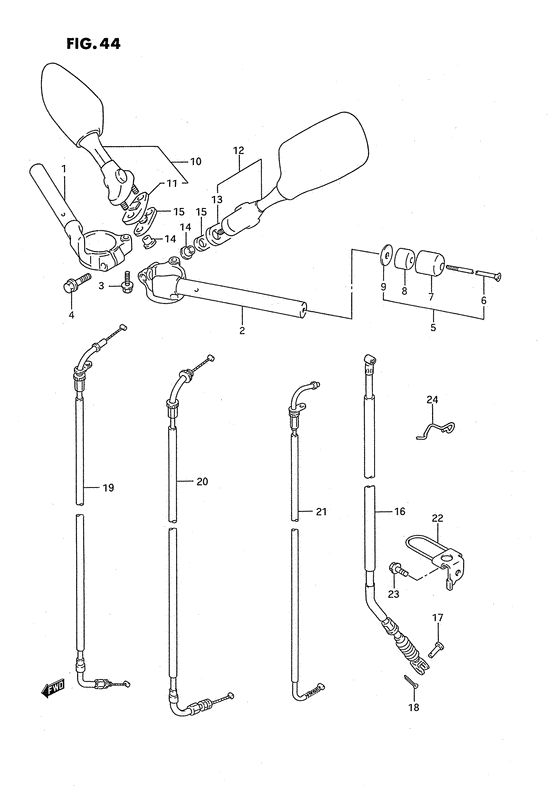

Handlebar Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-17E10-000
Handlebar, rh
|
56111-17E10-000 |
— | ||
| replacement | |||||
|
1
|
1
56111-17E12-000
HANDLEBAR,R
|
56111-17E12-000 |
— | ||
|
2
|
2
56151-17E10-000
Handlebar, lh
|
56151-17E10-000 |
— | ||
|
3
|
3
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
3
|
3
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
4
|
4
09103-08269-000 BOLT(8X30)Bolt (8x30) Bolt (8x30); |
09103-08269-000 |
from US $4.13 |
||
|
5
|
5
56200-19810-000
Balancer set, handlebar
|
56200-19810-000 |
— | ||
| replacement | |||||
|
5
|
5
56200-12813-000
BALANCER SET,HANDLEBAR
|
56200-12813-000 |
— | ||
|
6
|
6
02122-06503-000
Screw
|
02122-06503-000 |
— | ||
| replacement | |||||
|
6
|
6
02122-0650B-000 SCREWScrew, lower |
02122-0650B-000 |
from US $4.34 |
||
|
7
|
7
56274-05350-000
Cap (black)
|
56274-05350-000 |
— | ||
| replacement | |||||
|
7
|
7
56274-31300-000 CAP,BALANCER |
56274-31300-000 |
US $116.66 |
||
|
7
|
7
56274-31300-000 CAP,BALANCER |
56274-31300-000 |
US $116.66 |
||
|
8
|
8
56271-49420-000 BALANCER,HANDLE |
56271-49420-000 |
from US $18.95 |
||
|
9
|
9
56275-34400-000 Spacer |
56275-34400-000 |
US $3.33 |
||
| replacement | |||||
|
9
|
9
56275-34401-000 SPACER,BALANCER |
56275-34401-000 |
from US $2.61 |
||
|
10
|
10
56500-41C01-84N
Mirror assy, rear view rh (black)
|
56500-41C01-84N |
— | ||
| replacements | |||||
|
10
|
10
56500-19D10-84N
MIRROR ASSY,RR VIEW,R
|
56500-19D10-84N |
— | ||
|
10
|
10
56528-41C00-000
GASKET,RR VIEW MIRROR,R
|
56528-41C00-000 |
— | ||
|
11
|
11
56528-41C00-000
GASKET,RR VIEW MIRROR,R
|
56528-41C00-000 |
— | ||
|
12
|
12
56600-41C01-84N
Mirror assy, rear view lh (black)
|
56600-41C01-84N |
— | ||
| replacements | |||||
|
12
|
12
56600-19D10-84N
MIRROR ASSY,RR VIEW,L
|
56600-19D10-84N |
— | ||
|
12
|
12
56628-41C00-000
GASKET,RR VIEW MIRROR,L
|
56628-41C00-000 |
— | ||
|
13
|
13
56628-41C00-000
GASKET,RR VIEW MIRROR,L
|
56628-41C00-000 |
— | ||
|
14
|
14
56619-12C00-000 NUT,RR VIEW MIRRORNut, view mirror |
56619-12C00-000 |
from US $5.92 |
||
|
15
|
15
94576-41C00-000
CUSHION,RR VIEW MIRRORR
|
94576-41C00-000 |
— | ||
|
16
|
16
58200-17E11-000
CABLE ASSY,CLUTCH
|
58200-17E11-000 |
— | ||
|
17
|
17
09200-06011-000
PIN(L:15)
Pin; |
09200-06011-000 |
— | ||
|
18
|
18
04111-20158-000
20 x 15 cotter
Pin, cotter; |
04111-20158-000 |
— | ||
| replacement | |||||
|
18
|
18
04111-2015A-000 PINPin, cotter; |
04111-2015A-000 |
from US $0.76 |
||
|
19
|
19
58300-17E41-000
Cable assy, throttle no.1
|
58300-17E41-000 |
— | ||
|
20
|
20
58300-17E51-000
Cable assy, throttle no.2
|
58300-17E51-000 |
— | ||
|
21
|
21
58410-17E00-000 CABLE,STARTER |
58410-17E00-000 |
from US $32.20 |
||
|
22
|
22
58620-17E00-000
Guide, clutch cable
|
58620-17E00-000 |
— | ||
| replacement | |||||
|
22
|
22
58620-17E01-000
Guide,clutch cable
|
58620-17E01-000 |
— | ||
|
23
|
23
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
23
|
23
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
23
|
23
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
24
|
24
58621-17E10-000
Guide,clutch ca
|
58621-17E10-000 |
— | ||
