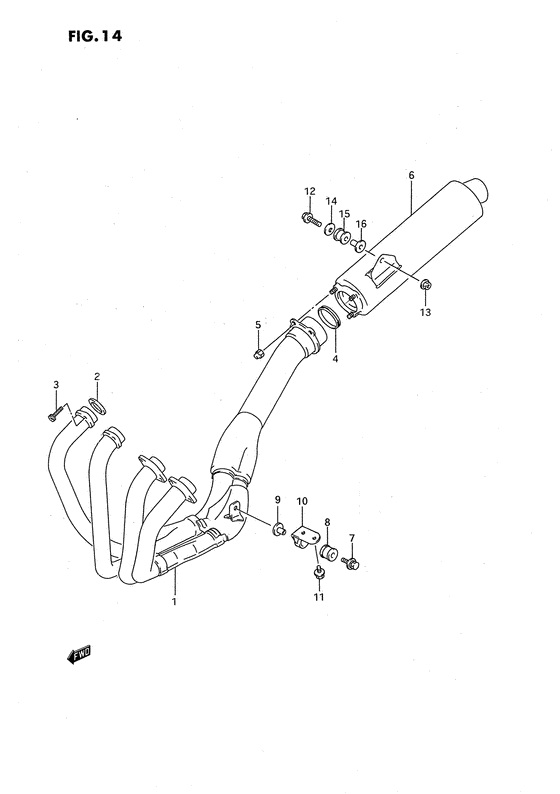

Muffler Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14100-17EA0-000
Pipe, exhaust
|
14100-17EA0-000 |
— | ||
|
2
|
2
14181-17E00-000 GASKET,EXHAUST PIPEGasket, exhaust pipe Gasket, exhaust pipe; |
14181-17E00-000 |
from US $12.96 |
||
|
3
|
3
07130-08253-000
Bolt
|
07130-08253-000 |
— | ||
| replacement | |||||
|
3
|
3
07130-0825B-000 Bolt |
07130-0825B-000 |
from US $1.28 |
||
|
4
|
4
14181-31E00-000 GASKET,MUFFLER JOINTGasket, muffler joint |
14181-31E00-000 |
from US $4.71 |
||
|
5
|
5
09159-08101-000 Nut, muffler joint |
09159-08101-000 |
US $3.12 |
||
| replacement | |||||
|
5
|
5
09159-08116-000 NUT |
09159-08116-000 |
from US $10.34 |
||
|
6
|
6
14310-17EA0-000
Body, muffler
|
14310-17EA0-000 |
— | ||
|
7
|
7
09118-08152-000
Bolt, premuffler support lh
|
09118-08152-000 |
— | ||
| replacement | |||||
|
7
|
7
09118-08152-A05 BOLT(8X45) |
09118-08152-A05 |
from US $8.38 |
||
|
8
|
8
09320-12048-000 CUSHION |
09320-12048-000 |
from US $4.64 |
||
|
9
|
9
09180-08152-000 SPACER(8.6X12X24.2)Spacer, muffler support |
09180-08152-000 |
from US $2.74 |
||
|
10
|
10
14770-17EA0-000
Damper
|
14770-17EA0-000 |
— | ||
|
11
|
11
09100-08240-000 BOLT(8X20)Bolt (8x20) |
09100-08240-000 |
from US $3.33 |
||
| replacement | |||||
|
11
|
11
09100-08299-000 BOLT(8X20) |
09100-08299-000 |
from US $5.68 |
||
|
12
|
12
01550-08457-000 BoltBolt, cyl head no.5 |
01550-08457-000 |
from US $1.06 |
||
|
13
|
13
08361-25088-000
Nut
|
08361-25088-000 |
— | ||
| replacement | |||||
|
13
|
13
08361-2508A-000 NUT |
08361-2508A-000 |
from US $0.80 |
||
|
14
|
14
09160-08106-000 Washer |
09160-08106-000 |
US $1.31 |
||
| replacements | |||||
|
14
|
14
09160-08146-000 WASHER(8.5X33X1.5)Washer, muffler support |
09160-08146-000 |
from US $1.52 |
||
|
14
|
14
09160-08140-000
Washer
|
09160-08140-000 |
— | ||
|
15
|
15
09320-12049-000 CUSHION |
09320-12049-000 |
from US $6.54 |
||
|
16
|
16
09180-08156-000 SPACER(8.6X12X27.1) |
09180-08156-000 |
from US $2.56 |
||
