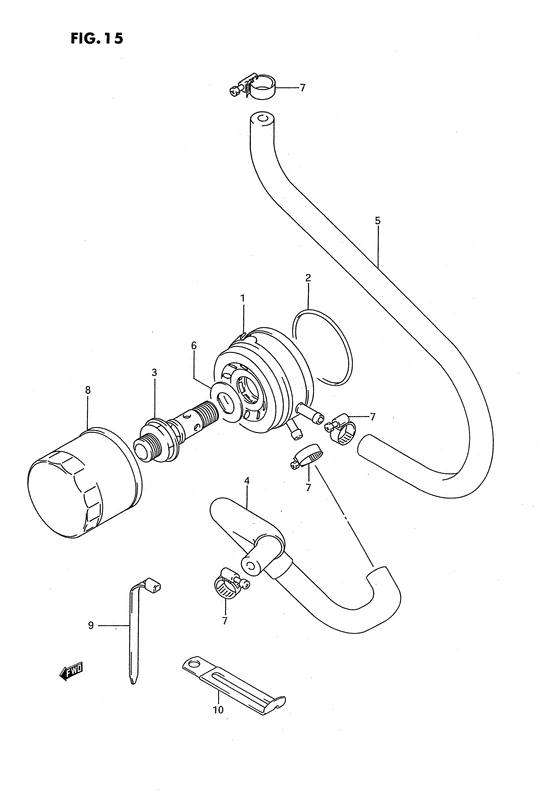

Oil cooler - oil filter Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16600-17E00-000
COOLER ASSY,OIL
|
16600-17E00-000 |
— | ||
|
2
|
2
09280-64003-000 O RING(D:3.1,ID:63.9)O ring (d:3.1 id:63.9) O ring (d:3.1,id:63.9); |
09280-64003-000 |
from US $2.74 |
||
|
3
|
3
16591-33C00-000
Bolt,oil cooler
|
16591-33C00-000 |
— | ||
|
4
|
4
16461-17E00-000
HOSE,OIL COOLER WATER IN
|
16461-17E00-000 |
— | ||
|
5
|
5
16471-17E02-000
Hose, oil cooler,water out
|
16471-17E02-000 |
— | ||
|
6
|
6
08221-22355-000 SHIMWasher (id:22,od:35,t:0.5) |
08221-22355-000 |
from US $2.87 |
||
|
7
|
7
09401-13410-000
Clip
|
09401-13410-000 |
— | ||
| replacement | |||||
|
7
|
7
09401-12414-000 CLIP |
09401-12414-000 |
from US $1.60 |
||
|
8
|
8
16510-06B01-000
Filter assy, engine oil
|
16510-06B01-000 |
— | ||
| replacement | |||||
|
8
|
8
16510-07J10-000 FILTER ASSY,ENGINE OIL |
16510-07J10-000 |
from US $17.68 |
||
|
9
|
9
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
10
|
10
09404-06402-000
Clamp, hose (l:60)
T:0.7 |
09404-06402-000 |
— | ||
| replacements | |||||
|
10
|
10
09404-06432-000
CLAMP(L:65)
T:0.7 |
09404-06432-000 |
— | ||
|
10
|
10
09404-06206-000
CLAMP(L:45)
T:0.7 |
09404-06206-000 |
— | ||
|
10
|
10
09404-06039-000 Clamp(L:65)T:0.7 |
09404-06039-000 |
from US $1.82 |
||
|
10
|
10
09404-06031-000 Clamp,rsvr Tank Ovfl HoseT:0.7 |
09404-06031-000 |
from US $1.37 |
||
