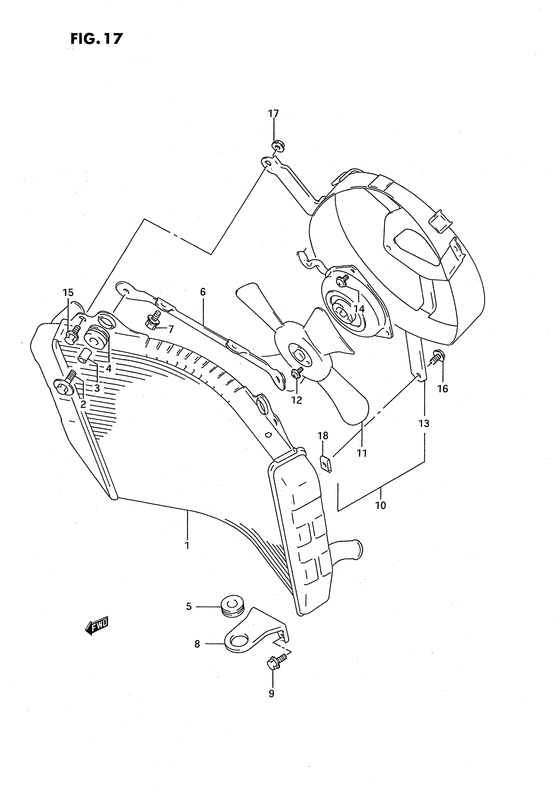

Radiator Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17710-17E00-000
RADIATOR ASSY,WATER
|
17710-17E00-000 |
— | ||
|
2
|
2
09116-06147-000 BOLT(6X25)Bolt, side |
09116-06147-000 |
from US $1.52 |
||
|
3
|
3
09180-07004-000 SPACER(6.5X10.5X12)Spacer, control lever Spacer (6.5x10.5x12); |
09180-07004-000 |
from US $3.35 |
||
|
4
|
4
17787-19A00-000 CUSHION,RADIATOR LWRCushion, lower Cushion, radiator upper; |
17787-19A00-000 |
from US $2.24 |
||
|
5
|
5
09320-12053-000
CUSHION
Cushion, radiator lower; |
09320-12053-000 |
— | ||
| replacement | |||||
|
5
|
5
09320-12092-000 CushionCushion, radiator lower; |
09320-12092-000 |
from US $5.39 |
||
|
6
|
6
17740-17E00-000
Bracket comp,ra
|
17740-17E00-000 |
— | ||
|
7
|
7
01580-06123-000
Bolt
|
01580-06123-000 |
— | ||
| replacements | |||||
|
7
|
7
01580-0612B-000 Bolt |
01580-0612B-000 |
US $0.96 |
||
|
7
|
7
01580-0612A-000 Bolt |
01580-0612A-000 |
from US $0.91 |
||
|
8
|
8
17751-17E00-000
Bracket,radiato
|
17751-17E00-000 |
— | ||
|
9
|
9
01580-06163-000
Bolt
|
01580-06163-000 |
— | ||
| replacement | |||||
|
9
|
9
01580-0616A-000 BOLT |
01580-0616A-000 |
from US $0.96 |
||
|
10
|
10
17800-17E02-000
Fan assy,radiat
|
17800-17E02-000 |
— | ||
|
11
|
11
17820-17E00-000
FAN
|
17820-17E00-000 |
— | ||
|
12
|
12
02112-04063-000
Screw
|
02112-04063-000 |
— | ||
| replacement | |||||
|
12
|
12
02112-0406B-000 SCREW |
02112-0406B-000 |
from US $0.76 |
||
|
13
|
13
17770-17E00-000
Shroud
|
17770-17E00-000 |
— | ||
|
14
|
14
02112-15083-000
Screw
|
02112-15083-000 |
— | ||
| replacement | |||||
|
14
|
14
02142-0508A-000 SCREWScrew, cap |
02142-0508A-000 |
from US $0.76 |
||
|
15
|
15
01550-06123-000
Bolt
|
01550-06123-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0612B-000 BOLTBolt, clamp |
01550-0612B-000 |
from US $0.76 |
||
|
15
|
15
01550-0612A-000 BOLT |
01550-0612A-000 |
from US $0.76 |
||
|
16
|
16
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
16
|
16
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
16
|
16
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
17
|
17
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
17
|
17
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
18
|
18
17762-39A00-000
Nut,radiator co
|
17762-39A00-000 |
— | ||
| replacement | |||||
|
18
|
18
09148-06015-000 NUT |
09148-06015-000 |
from US $2.03 |
||
