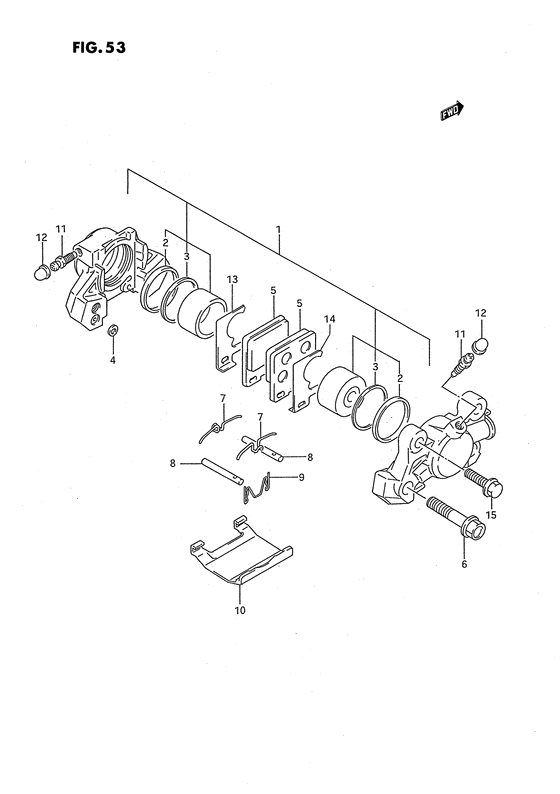

Rear caliper Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
|
69100-21E01-000
Caliper assy,re
|
69100-21E01-000 |
— | ||
| replacements | |||||
|
|
69100-21850-000 PAD & SHIM SET |
69100-21850-000 |
US $75.07 |
||
|
|
69100-21E01-999
Caliper assy,rear
|
69100-21E01-999 |
— | ||
|
1
|
1
69100-32810-000
Piston set
|
69100-32810-000 |
— | ||
| replacement | |||||
|
1
|
1
69100-05851-000 PISTON SET |
69100-05851-000 |
from US $80.77 |
||
|
2
|
2
59107-18410-000
Piston seal
Seal; |
59107-18410-000 |
— | ||
| replacement | |||||
|
2
|
2
69107-05CF0-000 SEAL,PISTONSeal; |
69107-05CF0-000 |
from US $4.64 |
||
|
3
|
3
69108-32B00-000 SEAL,WIPERBoot |
69108-32B00-000 |
from US $10.60 |
||
|
4
|
4
69107-34200-000 SEAL,JOINT |
69107-34200-000 |
from US $14.43 |
||
|
5
|
5
69130-21E00-000
Pad
|
69130-21E00-000 |
— | ||
| replacement | |||||
|
5
|
5
69100-21820-000 Pad set |
69100-21820-000 |
from US $57.26 |
||
|
6
|
6
59145-17C00-000
Bolt
|
59145-17C00-000 |
— | ||
|
7
|
7
59143-16700-000 SPRINGSpring |
59143-16700-000 |
from US $2.82 |
||
|
8
|
8
69141-46E01-000 PIN,PADPin |
69141-46E01-000 |
from US $6.92 |
||
|
9
|
9
69142-46E01-000 CLIP,PAD PINClip |
69142-46E01-000 |
from US $9.64 |
||
|
10
|
10
59151-16701-000 COVER |
59151-16701-000 |
from US $14.96 |
||
|
11
|
11
59121-18410-000 BLEEDERBleeder; |
59121-18410-000 |
from US $7.14 |
||
|
12
|
12
59122-18410-000
Cap, bleeder plug
|
59122-18410-000 |
— | ||
| replacement | |||||
|
12
|
12
55156-66310-000 CAP,BLEEDER PLUGCap, bleeder plug |
55156-66310-000 |
from US $1.98 |
||
|
13
|
13
59371-20C00-000 SHIM,INNER |
59371-20C00-000 |
from US $10.74 |
||
|
14
|
14
59381-20C00-000 SHIM,OUTER |
59381-20C00-000 |
from US $10.74 |
||
|
15
|
15
01550-08303-000
Bolt
|
01550-08303-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0830B-000 Bolt |
01550-0830B-000 |
from US $1.06 |
||
|
15
|
15
01550-0830A-000 BOLTBolt, mount oil seal cover |
01550-0830A-000 |
from US $1.12 |
||
