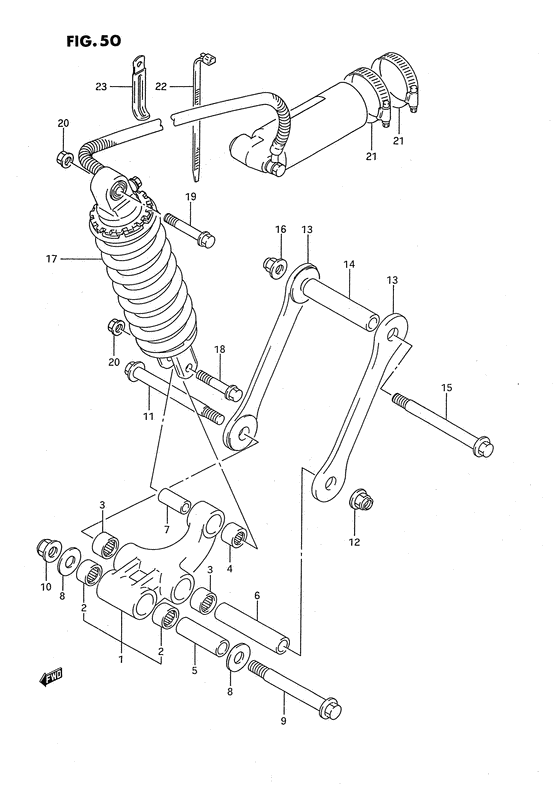

Rear cushion lever Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
62600-17811-000
Lever set,rear
|
62600-17811-000 |
— | ||
|
2
|
2
09263-20071-000 BEARING(20X27X23.5)Bearing, front; |
09263-20071-000 |
from US $12.32 |
||
|
3
|
3
09263-17039-000
BEARING(17X24X20)
Bearing, center; |
09263-17039-000 |
— | ||
| replacement | |||||
|
3
|
3
09263-17058-000 BearingBearing, center; |
09263-17058-000 |
from US $10.34 |
||
|
4
|
4
09263-17034-000
BEARING(17X24X26)
Bearing, rear; |
09263-17034-000 |
— | ||
| replacement | |||||
|
4
|
4
09263-17057-000 BearingBearing, rear; |
09263-17057-000 |
from US $12.46 |
||
|
5
|
5
62317-17C00-000
SPACER,RR CUSHION LEVER
Spacer, front; |
62317-17C00-000 |
— | ||
|
6
|
6
09180-12122-000 SPACER(12X17X85)Spacer, center (12x17x85) Spacer, center; |
09180-12122-000 |
from US $14.59 |
||
|
7
|
7
62684-40A10-000 SPACER,RR CUSHION LEVERSpacer, front (10x17x30) Spacer, rear; |
62684-40A10-000 |
from US $6.84 |
||
|
8
|
8
08211-14323-000 WASHERWasher, front; |
08211-14323-000 |
from US $1.68 |
||
|
9
|
9
62621-17C00-000 SHAFT,RR CUSHION LEVER FRBolt, rod (14x112) Bolt, front; |
62621-17C00-000 |
from US $10.82 |
||
|
10
|
10
08319-31148-000
Nut
|
08319-31148-000 |
— | ||
| replacement | |||||
|
10
|
10
08319-3114A-000 NUT |
08319-3114A-000 |
from US $6.08 |
||
|
11
|
11
09103-12041-000 BOLT(12X118)Bolt, bracket (12x118) Bolt, center; |
09103-12041-000 |
from US $16.92 |
||
|
12
|
12
08319-31128-000
Nut 12mm
Nut; |
08319-31128-000 |
— | ||
| replacement | |||||
|
12
|
12
08319-3112A-000 NUTNut; |
08319-3112A-000 |
from US $1.98 |
||
|
13
|
13
62640-17E10-000
Rod,rear cushio
|
62640-17E10-000 |
— | ||
|
14
|
14
09180-12122-000 SPACER(12X17X85)Spacer, center (12x17x85) Spacer, rod; |
09180-12122-000 |
from US $14.59 |
||
|
15
|
15
09103-12041-000 BOLT(12X118)Bolt, bracket (12x118) Bolt, rod; |
09103-12041-000 |
from US $16.92 |
||
|
16
|
16
08319-31128-000
Nut 12mm
Nut; |
08319-31128-000 |
— | ||
| replacement | |||||
|
16
|
16
08319-3112A-000 NUTNut; |
08319-3112A-000 |
from US $1.98 |
||
|
17
|
17
62100-17E30-000
Absorber assy, rear shock
|
62100-17E30-000 |
— | ||
| replacement | |||||
|
17
|
17
62100-17E31-000
New Genuine Part
|
62100-17E31-000 |
— | ||
|
18
|
18
09103-10101-000 BOLT(10X54)Bolt, front (10x54) Bolt, lower; |
09103-10101-000 |
from US $5.46 |
||
|
19
|
19
09103-10032-000
BOLT(10X75)
Bolt, upper; |
09103-10032-000 |
— | ||
|
20
|
20
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
21
|
21
09402-60502-000 CLAMPClamp, tank |
09402-60502-000 |
US $66.60 |
||
|
22
|
22
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
22
|
22
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
23
|
23
09404-08402-000
Clamp
|
09404-08402-000 |
— | ||
| replacement | |||||
|
23
|
23
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
