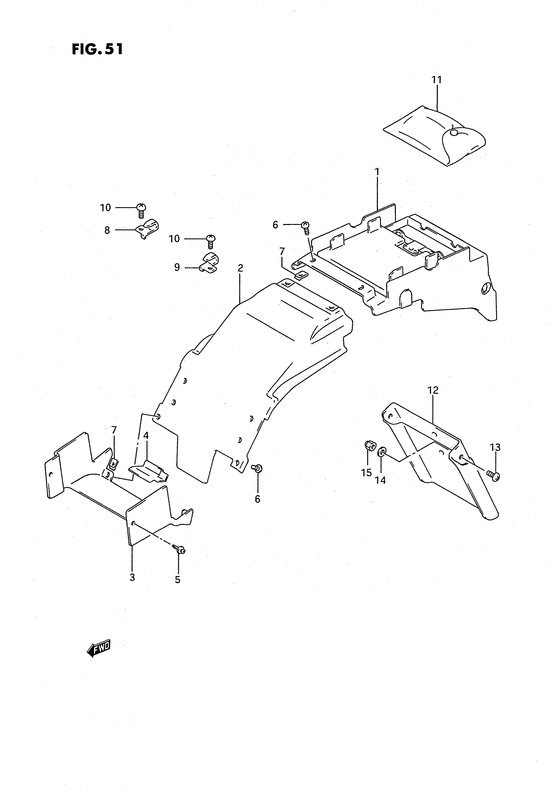

Rear fender Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
63110-17E00-000
Fender comp,rea
E4 |
63110-17E00-000 |
— | ||
|
1
|
1
63110-17E20-000
Fender, rear upper
E22 |
63110-17E20-000 |
— | ||
|
2
|
2
63114-17E10-000
Fender,rear upp
|
63114-17E10-000 |
— | ||
|
3
|
3
63113-17E10-000
FENDER,RR UPR FR NO.1
Fender, rear front; |
63113-17E10-000 |
— | ||
|
4
|
4
63411-17E00-000
Mud guard,rear
Mudguard, rear fender; |
63411-17E00-000 |
— | ||
|
5
|
5
09409-06322-000 CLIP |
09409-06322-000 |
from US $1.40 |
||
| replacement | |||||
|
5
|
5
09409-06322-5PK CLIP(BLACK)Clip (black) |
09409-06322-5PK |
from US $1.58 |
||
|
6
|
6
02142-05123-000
Screw 5x12
Screw; |
02142-05123-000 |
— | ||
| replacement | |||||
|
6
|
6
02142-0512A-000 SCREWScrew, lower Screw; |
02142-0512A-000 |
from US $0.80 |
||
|
7
|
7
94484-32B00-000
Nut
|
94484-32B00-000 |
— | ||
| replacement | |||||
|
7
|
7
94484-24F00-000 NUT,COWL |
94484-24F00-000 |
from US $1.67 |
||
|
8
|
8
95721-17E00-000
HOLDER,HELMET,R
|
95721-17E00-000 |
— | ||
|
9
|
9
95731-17E00-000
Holder,helmet,l
|
95731-17E00-000 |
— | ||
|
10
|
10
02142-06123-000
Screw
Screw; |
02142-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
10
|
10
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
11
|
11
09800-21035-000 TOOL ASSY |
09800-21035-000 |
US $117.48 |
||
| replacement | |||||
|
11
|
11
09800-21085-000 Tool Assy |
09800-21085-000 |
US $121.60 |
||
|
12
|
12
63311-17E50-000
Extension, rear fender
E22 |
63311-17E50-000 |
— | ||
|
13
|
13
02142-06163-000
Screw
Screw; E22 |
02142-06163-000 |
— | ||
| replacement | |||||
|
13
|
13
02142-0616A-000 SCREWScrew; E22 |
02142-0616A-000 |
from US $0.76 |
||
|
14
|
14
09160-06006-000
Washer
E22 |
09160-06006-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-06084-000 WASHER(6.5X18X1.6)E22 |
09160-06084-000 |
from US $0.76 |
||
|
15
|
15
08319-21066-000
Nut
E22 |
08319-21066-000 |
— | ||
| replacement | |||||
|
15
|
15
08319-2106A-000 NUTE22 |
08319-2106A-000 |
from US $1.12 |
||
