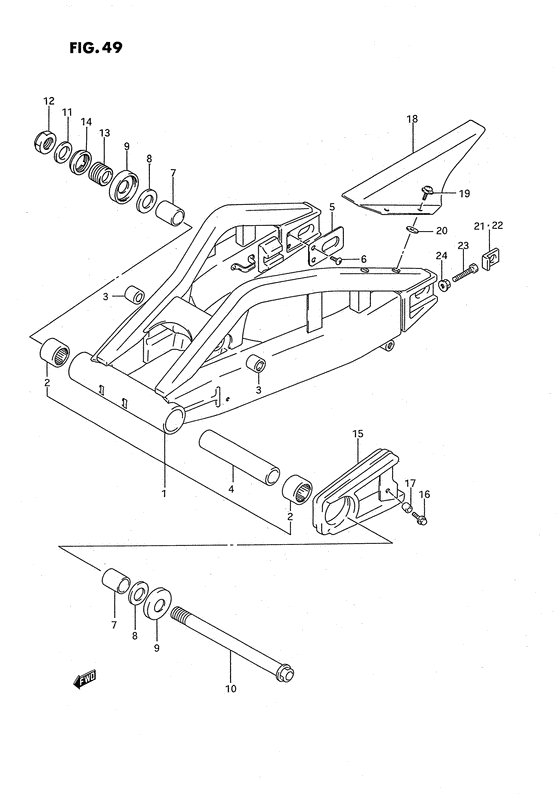

Rear swinging arm Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-17E11-000
Swingingarm ass
|
61000-17E11-000 |
— | ||
|
2
|
2
09263-30040-000 BEARING(30X40X25)Bearing, prop shaft Bearing, pivot; |
09263-30040-000 |
from US $20.52 |
||
|
3
|
3
09263-17039-000
BEARING(17X24X20)
Bearing, rod; |
09263-17039-000 |
— | ||
| replacement | |||||
|
3
|
3
09263-17058-000 BearingBearing, rod; |
09263-17058-000 |
from US $10.34 |
||
|
4
|
4
09180-25099-000
Spacer,25.4x31.
Spacer, center; |
09180-25099-000 |
— | ||
| replacement | |||||
|
4
|
4
09180-25099-XC0
Spacer,25.4x31.8x157.9
Spacer, center; |
09180-25099-XC0 |
— | ||
|
5
|
5
61124-17E10-000 PLATE,RR SWING ARM BRKTPlate, swinging arm Plate, bracket; |
61124-17E10-000 |
from US $7.45 |
||
|
6
|
6
02142-06103-000
Screw
Screw; |
02142-06103-000 |
— | ||
| replacements | |||||
|
6
|
6
02142-0610B-000 SCREWStopper, cl rlse cam shaft Screw; |
02142-0610B-000 |
from US $0.76 |
||
|
6
|
6
02142-0610A-000 SCREWScrew; |
02142-0610A-000 |
from US $0.80 |
||
|
7
|
7
61251-17E10-000
Spacer,rr swgar
|
61251-17E10-000 |
— | ||
| replacement | |||||
|
7
|
7
61251-17E20-000 SPACER,RR SWGARM PIVOT BEARING |
61251-17E20-000 |
from US $11.26 |
||
|
8
|
8
08211-25481-000 WASHERWasher, thrust; |
08211-25481-000 |
from US $1.82 |
||
|
9
|
9
61262-17E10-000
DUST SEAL,RR SWGARM PIVOT
Seal, dust; |
61262-17E10-000 |
— | ||
| replacement | |||||
|
9
|
9
61262-17E11-000 Seal,dustSeal, dust; |
61262-17E11-000 |
from US $6.51 |
||
|
10
|
10
61211-17E10-000
Shaft,rr swgarm
|
61211-17E10-000 |
— | ||
|
11
|
11
09160-25070-000 WASHER(25.2X42X3.2) |
09160-25070-000 |
from US $2.28 |
||
|
12
|
12
09159-25001-000
Nut
|
09159-25001-000 |
— | ||
| replacement | |||||
|
12
|
12
09159-25003-000 NUT |
09159-25003-000 |
from US $25.08 |
||
|
13
|
13
61213-17E10-000
Bolt,rr swgarm
|
61213-17E10-000 |
— | ||
| replacement | |||||
|
13
|
13
61213-17E1V-000
Bolt,rr swgarm pivot
|
61213-17E1V-000 |
— | ||
|
14
|
14
61214-17E10-000
Nut,rr swgarm p
|
61214-17E10-000 |
— | ||
| replacement | |||||
|
14
|
14
61214-17E1V-000 NUT,RR SWGARM PIVOT BOLT |
61214-17E1V-000 |
US $28.89 |
||
|
15
|
15
61273-17E11-000
BUFFER,CHAIN TOUCH DEFENSE
|
61273-17E11-000 |
— | ||
|
16
|
16
09116-06111-000 BoltBolt (6x20) |
09116-06111-000 |
from US $2.89 |
||
| replacement | |||||
|
16
|
16
09116-06152-000 BOLT(6X20) |
09116-06152-000 |
from US $1.44 |
||
|
17
|
17
09180-06002-000
Spacer (6.8x10x7)
|
09180-06002-000 |
— | ||
| replacement | |||||
|
17
|
17
09180-06283-000 SPACER(6.5X10X7)Spacer (6.5x10x7) |
09180-06283-000 |
from US $1.52 |
||
|
18
|
18
61311-17E10-000
CASE,CHAIN
|
61311-17E10-000 |
— | ||
|
19
|
19
09136-06022-000 SCREW(6X20)Screw, fender & brace Screw; |
09136-06022-000 |
from US $3.21 |
||
|
20
|
20
09160-06006-000
Washer
|
09160-06006-000 |
— | ||
| replacement | |||||
|
20
|
20
09160-06084-000 WASHER(6.5X18X1.6) |
09160-06084-000 |
from US $0.76 |
||
|
21
|
21
61446-17E10-000 Washer,chain adAdjuster, chain lh Washer, chain adjuster lh; Lh |
61446-17E10-000 |
US $44.15 |
||
| replacement | |||||
|
21
|
21
61446-17E11-000 WASHER,CHAIN ADJUSTER,LWasher, chain adjuster lh; Lh |
61446-17E11-000 |
from US $23.55 |
||
|
22
|
22
61446-27C20-000 Washer,chain adAdjuster, chain rh Washer, chain adjuster rh; Rh |
61446-27C20-000 |
US $29.98 |
||
| replacement | |||||
|
22
|
22
61446-27C21-000 WASHER,CHAIN ADJUSTER,LWasher, chain adjuster rh; Rh |
61446-27C21-000 |
from US $23.55 |
||
|
23
|
23
09100-08287-000 BOLT(8X50)Bolt (8x50); |
09100-08287-000 |
from US $1.52 |
||
|
24
|
24
08316-10083-000
Nut
|
08316-10083-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-1008B-000 NUT |
08316-1008B-000 |
from US $0.76 |
||
