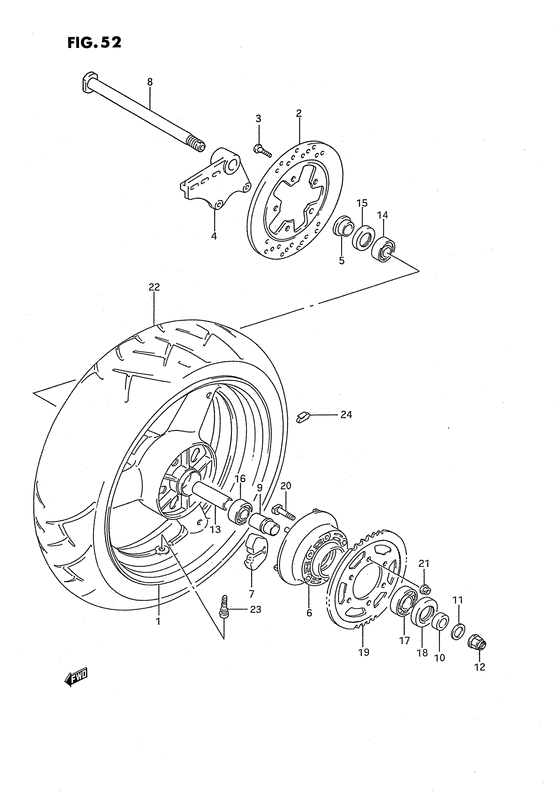

Rear wheel Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
64111-17E10-1MJ
Wheel, rear (17xmt5.50) (blue)
|
64111-17E10-1MJ |
— | ||
| replacement | |||||
|
1
|
1
64111-17E11-1MJ
WHEEL,RR(MT5.50X17)
|
64111-17E11-1MJ |
— | ||
|
2
|
2
69211-21E00-000 DISC,RR BRAKE |
69211-21E00-000 |
from US $416 |
||
|
3
|
3
09106-08125-000
Bolt (8x33)
Bolt; |
09106-08125-000 |
— | ||
| replacement | |||||
|
3
|
3
09106-08148-000 BOLT(8X33)Bolt; |
09106-08148-000 |
from US $1.98 |
||
|
4
|
4
69721-17E10-000
Bracket,rear ca
|
69721-17E10-000 |
— | ||
|
5
|
5
64741-17E00-000 SPACER,RR AXLE,RSpacer, rear axle rh Spacer, rh; |
64741-17E00-000 |
from US $29.27 |
||
|
6
|
6
64611-17E00-000
DRUM,RR SPROCKET
Drum, sprocket; |
64611-17E00-000 |
— | ||
|
7
|
7
64651-17E00-000 ABSORBER,RR HUB SHOCKAbsorber, rear hub shock Shock absorber, drum; |
64651-17E00-000 |
from US $16.80 |
||
|
8
|
8
64711-17E20-000
Axle, rear
|
64711-17E20-000 |
— | ||
| replacement | |||||
|
8
|
8
64711-17E30-000 AXLE,RR |
64711-17E30-000 |
from US $84.27 |
||
|
9
|
9
64733-48B00-000 RETAINER,RR HUB BEARINGRetainer, rear hub bearing Retainer, drum; |
64733-48B00-000 |
from US $17.37 |
||
|
10
|
10
64751-46E00-000 SPACER,RR AXLE,LSpacer, rear axle lh |
64751-46E00-000 |
from US $14.87 |
||
|
11
|
11
09160-18026-000 Washer (18.2x28x2.6) |
09160-18026-000 |
US $2.33 |
||
| replacement | |||||
|
11
|
11
09160-18030-000 WASHER(18.5X28X2.6)Gasket |
09160-18030-000 |
from US $1.22 |
||
|
12
|
12
09159-18007-000 NUT |
09159-18007-000 |
from US $22.59 |
||
|
13
|
13
64731-40C00-000 SPACER,RR WHEEL HUB BEARINGSpacer, rear wheel hub bearing |
64731-40C00-000 |
from US $16.67 |
||
|
14
|
14
09262-20114-000 BEARING(20X47X14)Bearing, rh (20x47x14) Bearing, rh; |
09262-20114-000 |
from US $25.21 |
||
|
15
|
15
09285-28001-000
SEAL,OIL(28X47X7)
Seal, bearing oil rh; |
09285-28001-000 |
— | ||
| replacement | |||||
|
15
|
15
09285-28004-000 OIL SEAL28x52x16 Seal, bearing oil rh; |
09285-28004-000 |
from US $9.73 |
||
|
16
|
16
09262-20042-000 BEARING(20X47X14)Bearing, lh (20x47x14) Bearing, lh; |
09262-20042-000 |
from US $16.72 |
||
|
17
|
17
09262-25073-000 BEARING(25X62X17)Bearing (25x62x17) Bearing, drum; |
09262-25073-000 |
from US $14.59 |
||
|
18
|
18
09285-35001-000 SEAL,OIL(35X62X8) |
09285-35001-000 |
from US $7.76 |
||
|
19
|
19
64511-17E10-000
Sprocket, rear (nt:41)
Sprocket, rear (nt:41); |
64511-17E10-000 |
— | ||
|
20
|
20
09119-10037-000 BoltBolt (10x42) |
09119-10037-000 |
from US $5.88 |
||
|
21
|
21
08319-31107-000 NUT |
08319-31107-000 |
from US $1.98 |
||
|
22
|
22
65110-17E50-000
Tire,rear,180/5
Tire, rear (180/55 zr17 d204)) (dunlop); |
65110-17E50-000 |
— | ||
|
23
|
23
43130-24A11-000
Valve assy, wheel rim (tr412)
|
43130-24A11-000 |
— | ||
| replacement | |||||
|
23
|
23
43130-24A00-000 VALVE ASSY, WHEEL RIM(TR412)Valve assy, wheel rim (tr412) |
43130-24A00-000 |
from US $4.41 |
||
|
24
|
24
55411-00A00-000
Balancer, wheel (10g)
Balancer (10g); |
55411-00A00-000 |
— | ||
| replacement | |||||
|
24
|
24
55411-17G00-000 BALANCER,WHEEL(10G)Balanceer, wheel (no. 1) Balancer (10g); |
55411-17G00-000 |
from US $2.56 |
||
|
24
|
24
55412-00A01-000
Balancer, wheel (20g)
|
55412-00A01-000 |
— | ||
| replacement | |||||
|
24
|
24
55412-17G00-000 BALANCER,WHEEL(20G)Balanceer, wheel (no. 2) |
55412-17G00-000 |
from US $2.56 |
||
|
24
|
24
55413-00A01-000
Balancer, wheel (30g)
|
55413-00A01-000 |
— | ||
