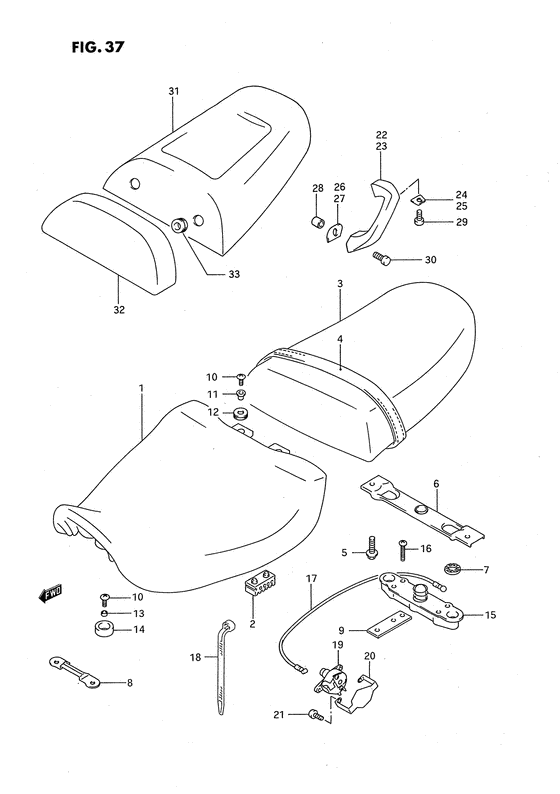

Seat Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
45100-17E10-58R
Seat assy (black)
|
45100-17E10-58R |
— | ||
| replacement | |||||
|
1
|
1
45100-17E11-58R
New Genuine Part
|
45100-17E11-58R |
— | ||
|
2
|
2
45149-31300-000 CUSHION,SEAT(40X20X15) |
45149-31300-000 |
from US $4.56 |
||
|
3
|
3
45300-17E20-5FM
Seat assy,pilli
Seat assy, pillion (blue); |
45300-17E20-5FM |
— | ||
| replacement | |||||
|
3
|
3
45300-17E10-58R
SEAT ASSY,PILLION
Seat assy, pillion (blue); |
45300-17E10-58R |
— | ||
|
4
|
4
45180-17E00-5FM
Band comp,seat
Band, seat (blue); |
45180-17E00-5FM |
— | ||
|
5
|
5
01550-06203-000
Bolt
Bolt, seat band; |
01550-06203-000 |
— | ||
| replacement | |||||
|
5
|
5
01550-0620B-000 BOLTBolt, inspection cap Bolt, seat band; |
01550-0620B-000 |
from US $0.76 |
||
|
6
|
6
45210-22D01-000
Striker, seat lock
|
45210-22D01-000 |
— | ||
|
7
|
7
45213-31300-000 CUSHIONCushion, boss; |
45213-31300-000 |
from US $1.76 |
||
|
8
|
8
45119-17E00-000 PLATE,SEAT FR HOOKPlate, seat front |
45119-17E00-000 |
from US $9.38 |
||
|
9
|
9
45210-17E00-000
Bracket comp,se
|
45210-17E00-000 |
— | ||
|
10
|
10
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
10
|
10
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
11
|
11
09169-06064-000 WASHERWasher; |
09169-06064-000 |
from US $5.78 |
||
|
12
|
12
94433-26B00-000
CUSHION
Cushion, seat front; |
94433-26B00-000 |
— | ||
| replacement | |||||
|
12
|
12
94433-26B01-000 CushionCushion, seat front; |
94433-26B01-000 |
US $5.41 |
||
|
13
|
13
09180-06053-000
Spacer
|
09180-06053-000 |
— | ||
| replacement | |||||
|
13
|
13
09180-06309-000 SPACER(6.5X10X5)Spacer, guide |
09180-06309-000 |
from US $1.52 |
||
|
14
|
14
45149-04A00-000 CUSHION,TAIL COVER UPRCushion, upper Cushion, seat support; |
45149-04A00-000 |
from US $1.52 |
||
|
15
|
15
45220-13601-000 LOCK ASSY,SEAT STRIKERLock assy, seat striker Bracket, seat support rear; |
45220-13601-000 |
from US $50.78 |
||
|
16
|
16
02112-06353-000
Screw
Screw; |
02112-06353-000 |
— | ||
| replacement | |||||
|
16
|
16
02112-0635B-000 SCREWScrew; |
02112-0635B-000 |
from US $0.77 |
||
|
17
|
17
45280-17E00-000 CABLE,SEAT LOCK |
45280-17E00-000 |
from US $12.51 |
||
|
18
|
18
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
18
|
18
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
19
|
19
95700-12851-000
Lock set, helmet
|
95700-12851-000 |
— | ||
| replacement | |||||
|
19
|
19
95700-12853-000 LOCK SET,SEAT |
95700-12853-000 |
from US $88.32 |
||
|
20
|
20
45289-45D01-000
PLATE,SEAT LOCK GUARD
Plate, seat lock guard; |
45289-45D01-000 |
— | ||
|
21
|
21
09139-06075-000 SCREW(6X12)Bolt Screw; |
09139-06075-000 |
US $14.70 |
||
|
22
|
22
46211-17E00-0JW HANDLE,PILLION RIDER,RHandle, pillion rh (white); E22 |
46211-17E00-0JW |
US $145.73 |
||
|
23
|
23
46221-17E00-0JW HANDLE,PILLION RIDER,LHandle, pillion lh (white); E22 |
46221-17E00-0JW |
US $145.73 |
||
|
24
|
24
46236-17E00-000
Cushion, upper rh
Cushion, upper rh; E22 |
46236-17E00-000 |
— | ||
|
25
|
25
46237-17E00-000 CUSHION,PILLION HANDLE UPR,LCushion, upper lh; E22 |
46237-17E00-000 |
US $5.30 |
||
|
26
|
26
46238-17E00-000
CUSHION,PILLION HANDLE LWR,R
E22 |
46238-17E00-000 |
— | ||
|
27
|
27
46239-17E00-000
Cushion, lower lh
Cushion, lower lh; E22 |
46239-17E00-000 |
— | ||
|
28
|
28
01550-08203-000
Bolt
Bolt, upper; E22 |
01550-08203-000 |
— | ||
| replacements | |||||
|
28
|
28
01550-0820B-000 BoltBolt, upper; E22 |
01550-0820B-000 |
from US $0.91 |
||
|
28
|
28
01550-0820A-000 BOLTBolt, funnel bracket Bolt, upper; E22 |
01550-0820A-000 |
from US $0.96 |
||
|
29
|
29
07130-08453-000
Bolt
Bolt, lower; E22 |
07130-08453-000 |
— | ||
| replacement | |||||
|
29
|
29
07130-0845B-000 BOLTBolt, muffler support Bolt, lower; E22 |
07130-0845B-000 |
from US $1.37 |
||
|
30
|
30
09180-08173-000 SPACER(8.6X16X20)Spacer, handle grip end Spacer, lower; E22 |
09180-08173-000 |
from US $7.77 |
||
|
31
|
31
45500-17870-0JW
Box set, seat tail (white)
Opt |
45500-17870-0JW |
— | ||
| replacement | |||||
|
31
|
31
45500-17871-0JW
BOX SET,SEAT TAIL(WHITE)
Opt |
45500-17871-0JW |
— | ||
|
32
|
32
46220-17E00-58R
Seat tail cvr p
Backrest, seat (black); Opt |
46220-17E00-58R |
— | ||
|
33
|
33
09320-12031-000 CUSHIONOpt |
09320-12031-000 |
from US $1.92 |
||
