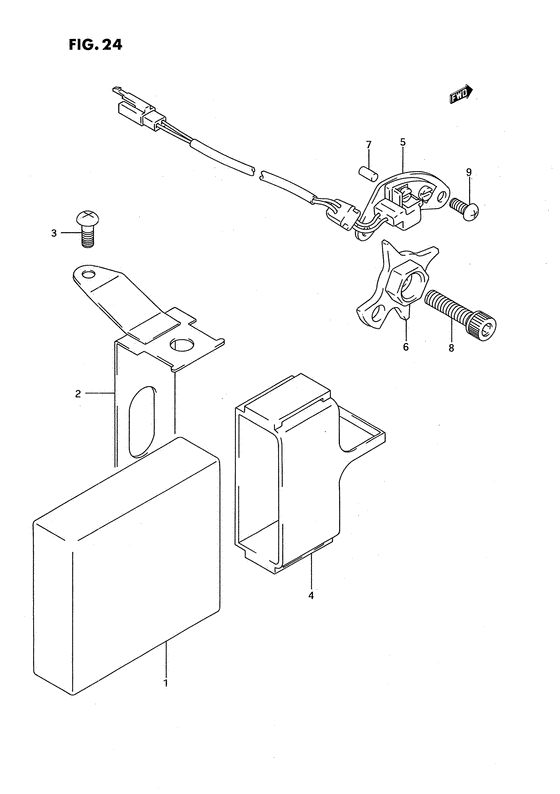

Signal generator Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32900-17EE0-000
Igniter assy
E4 |
32900-17EE0-000 |
— | ||
|
1
|
1
32900-17EF0-000
Igniter assy
E22 |
32900-17EF0-000 |
— | ||
|
2
|
2
32931-17E11-000
Bracket
|
32931-17E11-000 |
— | ||
|
3
|
3
02142-06163-000
Screw
Screw; |
02142-06163-000 |
— | ||
| replacement | |||||
|
3
|
3
02142-0616A-000 SCREWScrew; |
02142-0616A-000 |
from US $0.76 |
||
|
4
|
4
32980-17E00-000
Cushion
|
32980-17E00-000 |
— | ||
|
5
|
5
33110-17E00-000
STARTER,SIGNAL GENERATOR
|
33110-17E00-000 |
— | ||
|
6
|
6
33120-17E20-000
ROTOR,SIGNAL GENERATOR
|
33120-17E20-000 |
— | ||
|
7
|
7
04221-04089-000 PINPin, bal sprocket driven Pin; |
04221-04089-000 |
from US $0.76 |
||
|
8
|
8
07130-08303-000
Bolt, lower
|
07130-08303-000 |
— | ||
| replacement | |||||
|
8
|
8
07130-0830A-000 BOLT (chrome) |
07130-0830A-000 |
from US $2.65 |
||
|
9
|
9
02142-05103-000
Screw 5x10
Screw; |
02142-05103-000 |
— | ||
| replacement | |||||
|
9
|
9
02142-0510B-000 SCREWBolt Screw; |
02142-0510B-000 |
from US $0.76 |
||
