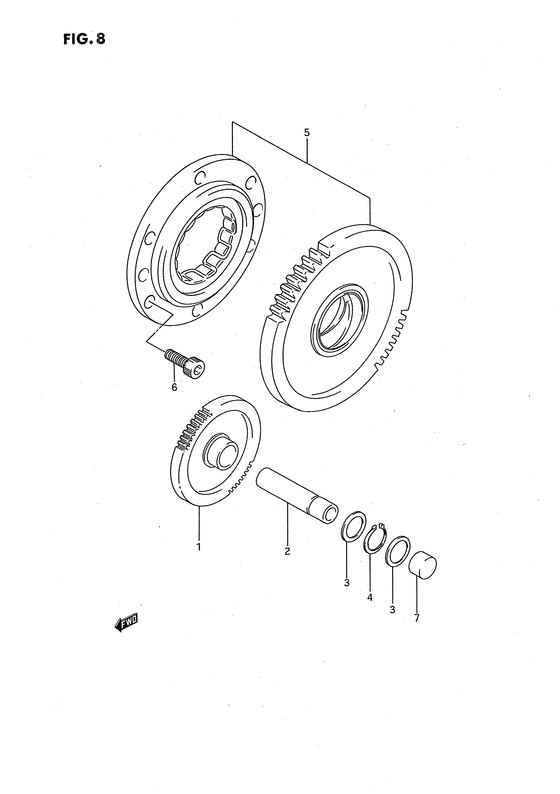

Starter clutch Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12611-21E00-000
Gear,starter id
Gear, starter idle (nt:12/56); |
12611-21E00-000 |
— | ||
|
2
|
2
12616-17E00-000 SHAFT,STARTER IDLE GEARShaft, starter idle gear |
12616-17E00-000 |
US $9.20 |
||
|
3
|
3
08221-12185-000 Washer,t:05Washer, lower (t:0.5) |
08221-12185-000 |
US $1.93 |
||
| replacement | |||||
|
3
|
3
09181-12130-000 SHIM(12X18X0.5)Washer, lower (t:0.5) |
09181-12130-000 |
from US $3.25 |
||
|
4
|
4
08331-31126-000
Circlip
|
08331-31126-000 |
— | ||
| replacement | |||||
|
4
|
4
08331-3112A-000 CIRCLIP |
08331-3112A-000 |
from US $0.91 |
||
|
5
|
5
12600-21810-000
Clutch Set, Starter
|
12600-21810-000 |
— | ||
| replacement | |||||
|
5
|
5
12600-21811-000
Clutch set, sta
|
12600-21811-000 |
— | ||
|
6
|
6
07130-06123-000
Bolt
|
07130-06123-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0612A-000 BOLT |
07130-0612A-000 |
from US $0.96 |
||
|
7
|
7
09241-12006-000
PLUG
|
09241-12006-000 |
— | ||
