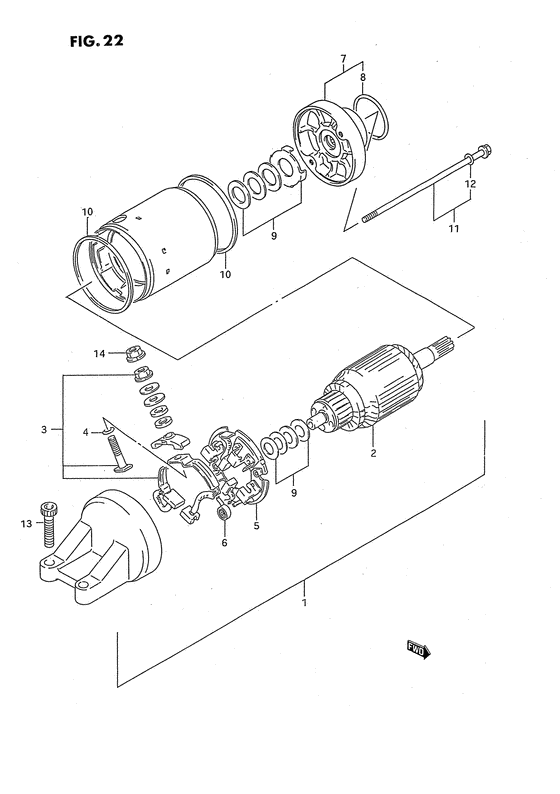

Starting motor Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31100-46E00-000
Motor assy,star
Motor, starting; |
31100-46E00-000 |
— | ||
|
2
|
2
31311-19C02-000
Armature
|
31311-19C02-000 |
— | ||
|
3
|
3
31130-19B10-000 TERMINAL SET,BRUSH,PLUSTerminal set, brush (+) |
31130-19B10-000 |
from US $20.84 |
||
|
4
|
4
31143-49040-000 O RINGO ring |
31143-49040-000 |
from US $2.08 |
||
|
5
|
5
31132-46E00-000 BRUSH,HOLDER SETBrush, holder set |
31132-46E00-000 |
from US $38.27 |
||
|
6
|
6
31135-31300-000 SPRING,BRUSHSpring, brush Spring, brush; |
31135-31300-000 |
from US $2.91 |
||
|
7
|
7
31150-46E00-000
Bracket assy,fr
|
31150-46E00-000 |
— | ||
|
8
|
8
31156-48B00-000 O RING |
31156-48B00-000 |
from US $4.05 |
||
|
9
|
9
31170-19B10-000 WASHER SETWasher set Washer set; |
31170-19B10-000 |
from US $6.15 |
||
|
10
|
10
31264-31300-000 O RING |
31264-31300-000 |
from US $4.71 |
||
| replacement | |||||
|
10
|
10
31264-32E00-000 SQUARE RINGO ring |
31264-32E00-000 |
US $10.01 |
||
|
11
|
11
31280-19B10-000 BOLT SET,STARTING MOTORBolt set Bolt assy; |
31280-19B10-000 |
from US $7.51 |
||
|
12
|
12
31143-49040-000 O RINGO ring |
31143-49040-000 |
from US $2.08 |
||
|
13
|
13
07120-06253-000
Bolt, center
|
07120-06253-000 |
— | ||
| replacement | |||||
|
13
|
13
07120-0625A-000 BOLTBolt, cylinder head (l25) |
07120-0625A-000 |
from US $0.91 |
||
|
14
|
14
08361-35066-000
Nut
|
08361-35066-000 |
— | ||
| replacement | |||||
|
14
|
14
08361-3506A-000 NUT |
08361-3506A-000 |
from US $0.77 |
||
