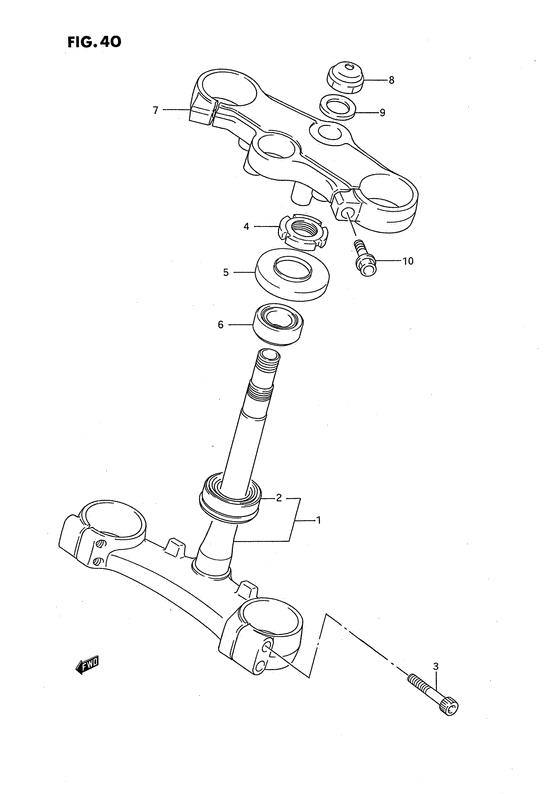

Steering stem Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51410-17E20-000
STEM,STEERING
|
51410-17E20-000 |
— | ||
|
2
|
2
09265-30009-000
BEARING(30X55X17)
|
09265-30009-000 |
— | ||
| replacement | |||||
|
2
|
2
09265-30034-000 Bearing |
09265-30034-000 |
from US $31.92 |
||
|
3
|
3
01550-08407-000 BOLTBolt, lower; |
01550-08407-000 |
from US $1.12 |
||
|
4
|
4
51631-28000-000 NUT,STEERING STEM(25X44X10)Nut, stem Nut, steering stem; |
51631-28000-000 |
from US $8.36 |
||
|
5
|
5
09285-34009-000
SEAL,OIL(34X69X11.9)
|
09285-34009-000 |
— | ||
| replacement | |||||
|
5
|
5
09285-34013-000 Seal |
09285-34013-000 |
from US $15.81 |
||
|
6
|
6
09265-25008-000
Bearing (25x47x15)
|
09265-25008-000 |
— | ||
| replacement | |||||
|
6
|
6
09265-25019-000 BEARING(25X47X15)Bearing (25x47x15) |
09265-25019-000 |
from US $25.84 |
||
|
7
|
7
51311-17E20-000
HEAD,STEERING STEM
|
51311-17E20-000 |
— | ||
|
8
|
8
51353-28A10-000 NUT |
51353-28A10-000 |
from US $20.42 |
||
|
9
|
9
51356-24B01-000 WASHER(22.5X32X1.6) |
51356-24B01-000 |
from US $6.16 |
||
|
10
|
10
01550-08407-000 BOLTBolt, upper; |
01550-08407-000 |
from US $1.12 |
||
