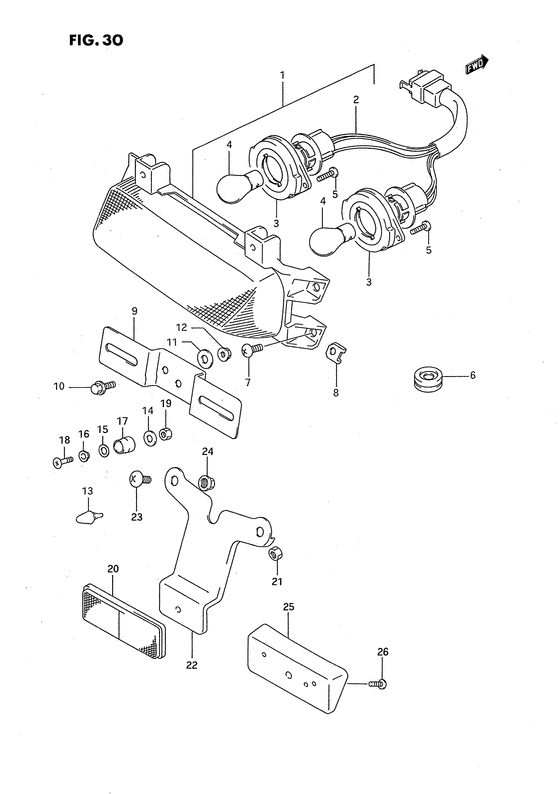

Tail lamp Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35710-17E00-000
Lamp assy, rear combination
|
35710-17E00-000 |
— | ||
|
2
|
2
35718-17E00-000
SOCKET & CORD ASSY
|
35718-17E00-000 |
— | ||
|
3
|
3
35765-48B21-000 CUSHION |
35765-48B21-000 |
from US $8.10 |
||
|
4
|
4
09471-12083-000 BULB(12V21/5W) |
09471-12083-000 |
from US $4.75 |
||
| replacement | |||||
|
4
|
4
09471-12128-000 BULB(12V21/5W,BF141-49642A) |
09471-12128-000 |
from US $7.20 |
||
|
5
|
5
03211-04123-000
Screw
|
03211-04123-000 |
— | ||
| replacement | |||||
|
5
|
5
03211-0412A-000 SCREW |
03211-0412A-000 |
from US $3.04 |
||
|
6
|
6
09308-07013-000
GROMMET
Grommet; |
09308-07013-000 |
— | ||
|
7
|
7
02142-05123-000
Screw 5x12
Screw; |
02142-05123-000 |
— | ||
| replacement | |||||
|
7
|
7
02142-0512A-000 SCREWScrew, lower Screw; |
02142-0512A-000 |
from US $0.80 |
||
|
8
|
8
09148-05021-000 NUTNut, fitting |
09148-05021-000 |
from US $0.96 |
||
|
9
|
9
35927-17E00-000
BRACKET,LICENSE PLATE
|
35927-17E00-000 |
— | ||
|
10
|
10
01550-06163-000
Bolt
Bolt; |
01550-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0616B-000 BOLTBolt; |
01550-0616B-000 |
from US $0.76 |
||
|
10
|
10
01550-0616A-000 BOLTBolt; |
01550-0616A-000 |
from US $0.76 |
||
|
11
|
11
09160-06088-000 WASHER(6.5X20X1.6)Washer, upper |
09160-06088-000 |
from US $0.91 |
||
|
12
|
12
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
12
|
12
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
13
|
13
09321-06028-000
CUSHION
|
09321-06028-000 |
— | ||
| replacement | |||||
|
13
|
13
09321-06038-000 Cushion |
09321-06038-000 |
from US $2.57 |
||
|
13
|
13
09321-06026-000 CUSHIONE22 |
09321-06026-000 |
from US $1.60 |
||
|
14
|
14
09160-06006-000
Washer
E22 |
09160-06006-000 |
— | ||
| replacement | |||||
|
14
|
14
09160-06084-000 WASHER(6.5X18X1.6)E22 |
09160-06084-000 |
from US $0.76 |
||
|
15
|
15
09160-06079-000 WASHER(6.5X16X1.2)Washer, cushion; E22 |
09160-06079-000 |
from US $0.77 |
||
| replacement | |||||
|
15
|
15
09160-06052-000 WASHER(6.5X16X1.2)Washer (6.5x16x1.2) Washer, cushion; E22 |
09160-06052-000 |
from US $1.28 |
||
|
16
|
16
09169-06032-000
Washer
Washer, cushion; E22 |
09169-06032-000 |
— | ||
| replacement | |||||
|
16
|
16
09169-06071-000 WASHERWasher, rr side Washer, cushion; E22 |
09169-06071-000 |
from US $0.96 |
||
|
17
|
17
09320-08058-000
Cushion
E22 |
09320-08058-000 |
— | ||
|
18
|
18
02142-06203-000
Screw
E22 |
02142-06203-000 |
— | ||
| replacement | |||||
|
18
|
18
02142-0620A-000 SCREWE22 |
02142-0620A-000 |
from US $0.68 |
||
|
19
|
19
08319-21066-000
Nut
E22 |
08319-21066-000 |
— | ||
| replacement | |||||
|
19
|
19
08319-2106A-000 NUTE22 |
08319-2106A-000 |
from US $1.12 |
||
|
20
|
20
35970-00A21-000
Reflex reflecto
Reflector, rear; |
35970-00A21-000 |
— | ||
| replacement | |||||
|
20
|
20
35970-00A10-000 REFLEX REFLECTOR,RRReflector, rear side Reflector, rear; |
35970-00A10-000 |
US $19.62 |
||
|
21
|
21
08310-00053-000
Nut
|
08310-00053-000 |
— | ||
| replacement | |||||
|
21
|
21
08310-0005A-000 NUT |
08310-0005A-000 |
from US $0.80 |
||
|
21
|
21
08316-10053-000
Nut
E22 |
08316-10053-000 |
— | ||
| replacement | |||||
|
21
|
21
08316-1005A-000 NUTE22 |
08316-1005A-000 |
from US $0.77 |
||
|
22
|
22
35974-18D00-000
Bracket,rear rr
|
35974-18D00-000 |
— | ||
| replacement | |||||
|
22
|
22
35974-01D00-000 BRACKET,RR RRBracket, rear reflex reflector |
35974-01D00-000 |
from US $3.31 |
||
|
23
|
23
02142-06123-000
Screw
Screw; |
02142-06123-000 |
— | ||
| replacements | |||||
|
23
|
23
02142-0612B-000 SCREWScrew; |
02142-0612B-000 |
from US $0.76 |
||
|
23
|
23
02142-0612A-000 SCREWScrew; |
02142-0612A-000 |
from US $0.80 |
||
|
24
|
24
08316-20063-000
Nut
|
08316-20063-000 |
— | ||
| replacement | |||||
|
24
|
24
08316-2006A-000 NUT |
08316-2006A-000 |
from US $0.76 |
||
|
25
|
25
35977-18D00-000
SPACER,RR RR
Spacer, rear reflector; E22 |
35977-18D00-000 |
— | ||
|
26
|
26
03541-04123-000
Screw
E22 |
03541-04123-000 |
— | ||
| replacements | |||||
|
26
|
26
03541-0412B-000 SCREWScrew, plate E22 |
03541-0412B-000 |
from US $0.80 |
||
|
26
|
26
03541-0412A-000 SCREWScrew, speedometer E22 |
03541-0412A-000 |
from US $0.80 |
||
