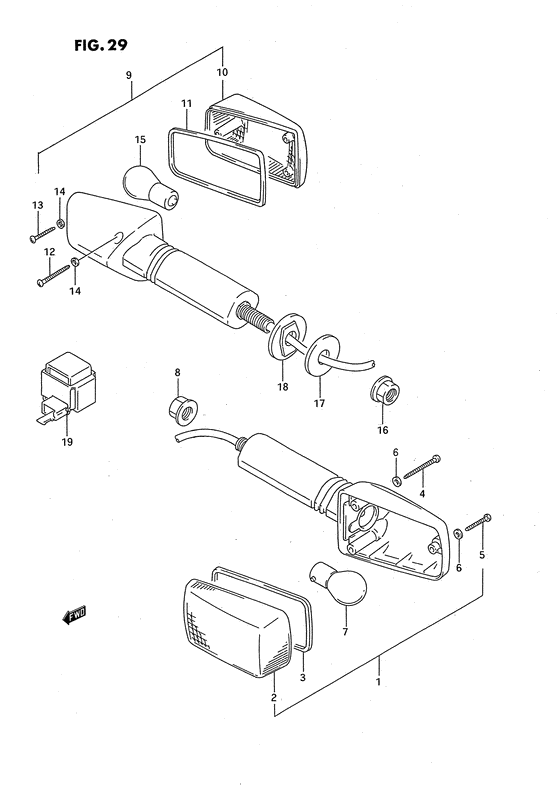

Turnsignal lamp Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35601-29E10-000
Lamp assy, front turnsignal
|
35601-29E10-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-29E30-000 LAMP ASSY,FR TURN SIGNALLamp assy, front turnsignal |
35601-29E30-000 |
from US $52.80 |
||
|
1
|
1
35601-29EA0-000
Lamp assy, front turnsignal
E22 |
35601-29EA0-000 |
— | ||
| replacement | |||||
|
1
|
1
35601-29EC0-000 LAMP ASSY,FR TURN SIGNALLamp assy, front turn signal E22 |
35601-29EC0-000 |
from US $98.80 |
||
|
2
|
2
35612-17C20-000 LENSLens, front turn signal |
35612-17C20-000 |
from US $7.68 |
||
|
3
|
3
35613-27A00-000 GASKET |
35613-27A00-000 |
from US $2.58 |
||
|
4
|
4
35623-27A00-000 SCREW(3X30)Tapping screw; |
35623-27A00-000 |
from US $0.85 |
||
|
5
|
5
35725-40511-000 SCREWTapping screw; |
35725-40511-000 |
from US $0.92 |
||
|
6
|
6
35627-27A02-000 GASKET |
35627-27A02-000 |
from US $0.77 |
||
|
7
|
7
09471-12045-000 BULB(12V21W)Bulb (12v,21w); |
09471-12045-000 |
from US $2.54 |
||
|
8
|
8
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
8
|
8
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
8
|
8
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
9
|
9
35603-21E30-000 LAMP ASSY,RR TURNSIGNALLamp assy, rear turnsignal Lamp assy, rear turnsignal; |
35603-21E30-000 |
from US $129.90 |
||
|
9
|
9
35603-21EC0-000
LAMP ASSY,RR TURNSIGNAL
Lamp assy, rear turnsignal; |
35603-21EC0-000 |
— | ||
|
10
|
10
35652-17C20-000 LENSLens, rear turn signal |
35652-17C20-000 |
from US $9.50 |
||
|
11
|
11
35613-27A00-000 GASKET |
35613-27A00-000 |
from US $2.58 |
||
|
12
|
12
35623-27A00-000 SCREW(3X30)Tapping screw; |
35623-27A00-000 |
from US $0.85 |
||
|
13
|
13
35725-40511-000 SCREWTapping screw; |
35725-40511-000 |
from US $0.92 |
||
|
14
|
14
35627-27A02-000 GASKET |
35627-27A02-000 |
from US $0.77 |
||
|
15
|
15
09471-12045-000 BULB(12V21W)Bulb (12v,21w); |
09471-12045-000 |
from US $2.54 |
||
|
16
|
16
08310-00103-000
Nut
|
08310-00103-000 |
— | ||
| replacements | |||||
|
16
|
16
08310-0010B-000 NUT |
08310-0010B-000 |
from US $0.80 |
||
|
16
|
16
08310-0010A-000 NUT |
08310-0010A-000 |
from US $0.80 |
||
|
17
|
17
09160-10501-000 WASHER(10.5X30X2.3)Washer, upper, outer |
09160-10501-000 |
from US $1.08 |
||
|
18
|
18
35695-17C00-000 SPACER,RR TURNSIGNAL |
35695-17C00-000 |
from US $1.82 |
||
|
19
|
19
38610-45D01-000 TURN SIGNAL LAMP RELAY ASSY (TL-67)Relay assy, turn signal Relay assy, turnsignal; |
38610-45D01-000 |
from US $64 |
||
