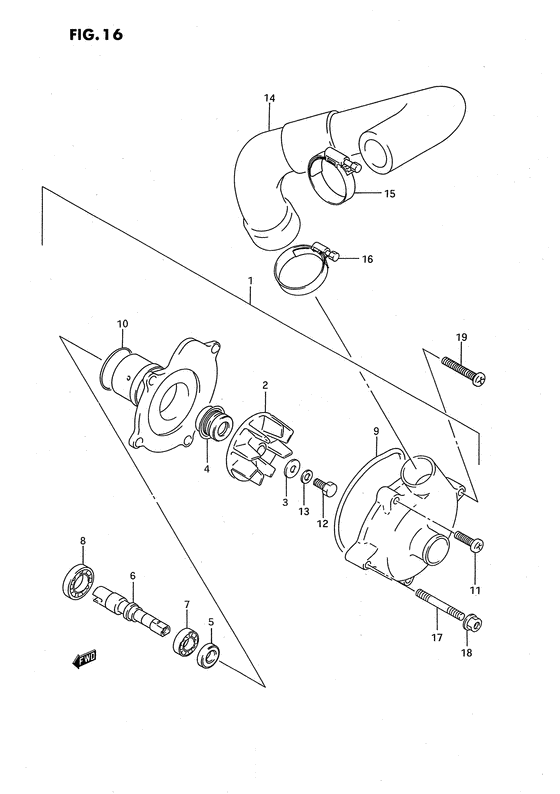

Water pump Diagram Suzuki GSX-R750
- Year
- 1994
- Model code
- GSX-R750SPR(E4) R
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-17E01-000
PUMP ASSY,WATER
|
17400-17E01-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-17E02-000
Pump Assy,water
|
17400-17E02-000 |
— | ||
|
2
|
2
17491-17E00-000
Impeller, water pump
|
17491-17E00-000 |
— | ||
| replacement | |||||
|
2
|
2
17491-17E01-000 IMPELLER |
17491-17E01-000 |
from US $29.60 |
||
|
3
|
3
09168-06025-000 GASKET(6X15X2.2)Gasket |
09168-06025-000 |
from US $1.22 |
||
|
4
|
4
17470-46A00-000
Seal, water pump mechanical
|
17470-46A00-000 |
— | ||
| replacements | |||||
|
4
|
4
17470-02F00-000
SEAL,MECHANICAL
|
17470-02F00-000 |
— | ||
|
4
|
4
17470-02F11-000 Seal,mechanical |
17470-02F11-000 |
from US $18.25 |
||
|
5
|
5
17461-38A00-000
Oil seal
|
17461-38A00-000 |
— | ||
| replacement | |||||
|
5
|
5
09283-10004-000 SEAL,OIL(10X21X5)Oil seal (10x21x5) |
09283-10004-000 |
from US $2.28 |
||
|
6
|
6
17511-17E01-000
SHAFT
|
17511-17E01-000 |
— | ||
|
7
|
7
09262-10014-000 BEARING(10X26X8)Bearing (10x26x8); |
09262-10014-000 |
from US $8.64 |
||
|
8
|
8
09262-12001-000 BEARING(12X28X8)Bearing (12x28x8); |
09262-12001-000 |
from US $10.64 |
||
|
9
|
9
17418-33400-000 O RING |
17418-33400-000 |
US $6.97 |
||
| replacement | |||||
|
9
|
9
17418-33401-000 O Ring |
17418-33401-000 |
from US $4.10 |
||
|
10
|
10
17435-33400-000 O RING,WATER PUMP HOLDER |
17435-33400-000 |
from US $9.42 |
||
|
11
|
11
02112-06163-000
Screw
Screw; |
02112-06163-000 |
— | ||
| replacements | |||||
|
11
|
11
02112-0616B-000 SCREWScrew; |
02112-0616B-000 |
from US $0.80 |
||
|
11
|
11
02112-0616A-000 SCREWScrew; |
02112-0616A-000 |
from US $0.76 |
||
|
12
|
12
09100-06099-000 BOLT(6X13)Bolt (6x13) Bolt (6x13); |
09100-06099-000 |
from US $1.28 |
||
|
13
|
13
09164-06006-000 WASHERWasher (6.3x12x1) Lock washer; |
09164-06006-000 |
from US $1.06 |
||
|
14
|
14
17854-17E01-000
HOSE,WATER PUMP OUTLET
|
17854-17E01-000 |
— | ||
|
15
|
15
09402-30502-000
Clamp
|
09402-30502-000 |
— | ||
| replacement | |||||
|
15
|
15
09402-32511-000 CLAMP |
09402-32511-000 |
from US $6.08 |
||
|
16
|
16
09402-33502-000
Clamp
|
09402-33502-000 |
— | ||
| replacement | |||||
|
16
|
16
09402-38511-000 CLAMP |
09402-38511-000 |
from US $4.06 |
||
|
17
|
17
09108-06117-000
BOLT,STUD
|
09108-06117-000 |
— | ||
|
18
|
18
08316-10063-000
Nut
Nut; |
08316-10063-000 |
— | ||
| replacement | |||||
|
18
|
18
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.76 |
||
|
19
|
19
02112-06353-000
Screw
Screw; |
02112-06353-000 |
— | ||
| replacement | |||||
|
19
|
19
02112-0635B-000 SCREWScrew; |
02112-0635B-000 |
from US $0.77 |
||
