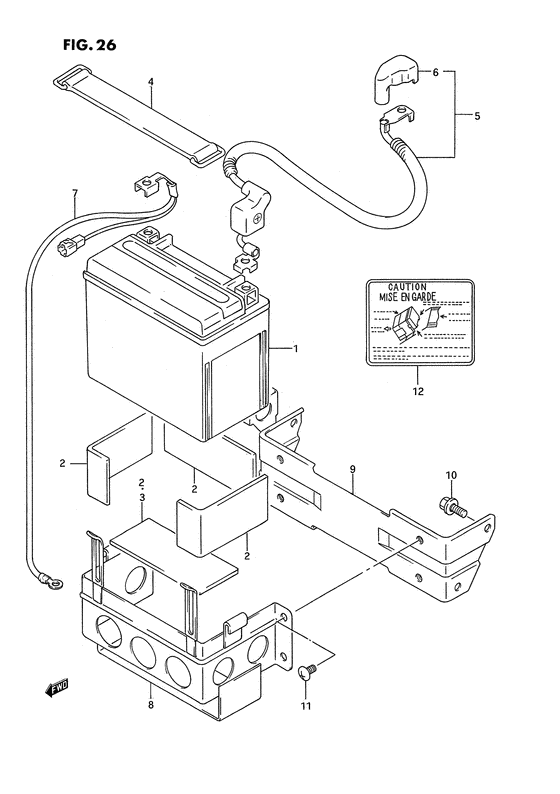

Battery Diagram Suzuki GSX-R750
- Year
- 1992
- Model code
- GSX-R750WN(E2) N
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33610-17E10-000 BATTERY ASSY(YTX12-BS,12V10AH)Battery (ytx12-bs,12v,10ah); Model n/p |
33610-17E10-000 |
from US $161.91 |
||
|
1
|
1
33610-32C10-000 BATTERY ASSY(YTX9-BS,12V8AH)Battery assy (xtx12-bs,12v 8ah) Model r/s |
33610-32C10-000 |
from US $153.46 |
||
| replacements | |||||
|
1
|
1
33610-33E21-000
BATTERY ASSY(FTX9-BS,12V8.4AH)
Model r/s |
33610-33E21-000 |
— | ||
|
1
|
1
33610-33E22-000 Battery Assy(Ftx9-Bs,12V8.4Ah)Model r/s |
33610-33E22-000 |
US $493.12 |
||
|
1
|
1
33610-07D10-000
Battery (ytx12-bs,12v,10ah)
Battery (ytx12-bs,12v,10ah); Model n/p e24 |
33610-07D10-000 |
— | ||
| replacements | |||||
|
1
|
1
33610-48E21-000
BATTERY(FTX12-BS,12V10.5AH)
Battery (ytx12-bs,12v,10ah); Model n/p e24 |
33610-48E21-000 |
— | ||
|
1
|
1
33610-17E10-000 BATTERY ASSY(YTX12-BS,12V10AH)Battery (ytx12-bs,12v,10ah); Model n/p e24 |
33610-17E10-000 |
from US $161.91 |
||
|
1
|
1
33610-48E22-000 Battery(Ftx12-Bs,12V10.5Ah)Battery (ytx12-bs,12v,10ah); Model n/p e24 |
33610-48E22-000 |
US $603.52 |
||
|
1
|
1
33610-07D90-000
Battery (ft4l-bs-r,12v,3ah)
Battery (ft4l-bs-r,12v,3ah); Opt,model s e22 |
33610-07D90-000 |
— | ||
|
2
|
2
33651-37000-000 PROTECTOR(170X95X3.0)Protector (20x130x3) Cushion; Cut as required profile, (50x115) |
33651-37000-000 |
from US $4.41 |
||
|
3
|
3
33652-47D00-000
Protector, battery
|
33652-47D00-000 |
— | ||
| replacement | |||||
|
3
|
3
33652-47D01-000 CUSHION,BATTERYProtector (45x90x28) |
33652-47D01-000 |
US $7.18 |
||
|
4
|
4
09462-00015-000 BAND |
09462-00015-000 |
from US $4.90 |
||
|
4
|
4
09462-00040-000 BANDBand, battery Opt,model s e22 |
09462-00040-000 |
from US $8.99 |
||
|
5
|
5
33820-17E00-000
Lead wire (+)
Model n/p |
33820-17E00-000 |
— | ||
| replacement | |||||
|
5
|
5
33820-17E01-000
Wire,battery pl
Model n/p |
33820-17E01-000 |
— | ||
|
5
|
5
33820-17E01-000
Wire,battery pl
Lead wire (+); Model r/s |
33820-17E01-000 |
— | ||
|
6
|
6
33624-01D10-000 CAP,STARTER RELAY TERMINALCap, starter relay Cap, terminal; Model n/p |
33624-01D10-000 |
US $2.38 |
||
|
6
|
6
33624-33C10-000
Cap battery plu
Cap, terminal; Model r/s |
33624-33C10-000 |
— | ||
|
7
|
7
33860-46E00-000
WIRE,BATTERY MINUS
Lead wire (-); |
33860-46E00-000 |
— | ||
|
8
|
8
41540-17E10-000
Hldr comp,batry
Model n/p, |
41540-17E10-000 |
— | ||
|
8
|
8
41540-17E50-000
Holder, battery
Model r/s |
41540-17E50-000 |
— | ||
| replacement | |||||
|
8
|
8
41540-17E61-000
HOLDER,BATTERY
Model r/s |
41540-17E61-000 |
— | ||
|
9
|
9
41560-17E00-000
BRACKET,BATTERY HOLDER
Model n/p |
41560-17E00-000 |
— | ||
|
9
|
9
41560-17E50-000
Bracket comp,ba
Model r/s |
41560-17E50-000 |
— | ||
|
10
|
10
01114-06168-000
Bolt
Model n/p |
01114-06168-000 |
— | ||
| replacement | |||||
|
10
|
10
01550-06167-000 BOLTModel n/p |
01550-06167-000 |
from US $0.68 |
||
|
10
|
10
01550-06163-000
Bolt
Bolt; Model r/s |
01550-06163-000 |
— | ||
| replacements | |||||
|
10
|
10
01550-0616B-000 BOLTBolt; Model r/s |
01550-0616B-000 |
from US $0.76 |
||
|
10
|
10
01550-0616A-000 BOLTBolt; Model r/s |
01550-0616A-000 |
from US $0.76 |
||
|
11
|
11
02142-06127-000 SCREWModel n/p |
02142-06127-000 |
from US $0.76 |
||
|
11
|
11
02142-06123-000
Screw
Screw; Model r/s |
02142-06123-000 |
— | ||
| replacements | |||||
|
11
|
11
02142-0612B-000 SCREWScrew; Model r/s |
02142-0612B-000 |
from US $0.76 |
||
|
11
|
11
02142-0612A-000 SCREWScrew; Model r/s |
02142-0612A-000 |
from US $0.80 |
||
|
12
|
12
33690-17E00-000
Plate, battery caution
|
33690-17E00-000 |
— | ||
