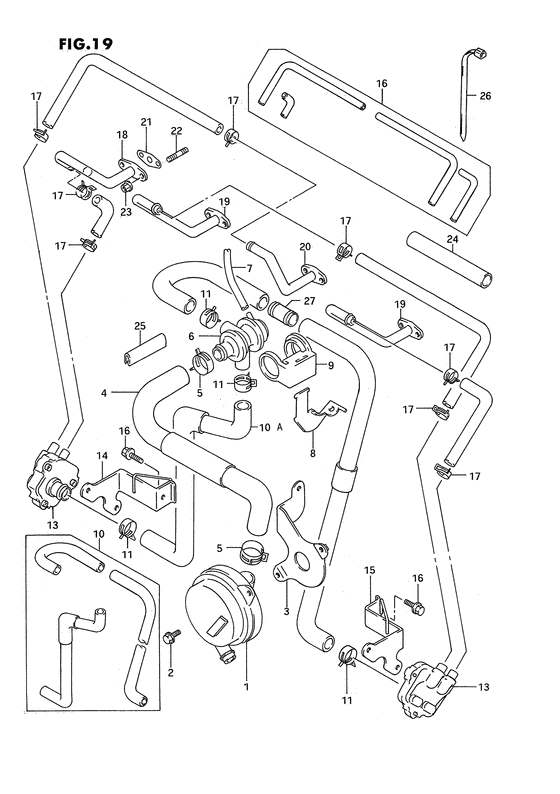

Second air (E18, e39) Diagram Suzuki GSX-R750
- Year
- 1992
- Model code
- GSX-R750WN(E2) N
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18700-06B03-000
Cleaner assy, 2nd air
Model n/p |
18700-06B03-000 |
— | ||
| replacement | |||||
|
1
|
1
18700-17C03-000
Cleaner assy, 2nd air
Model n/p |
18700-17C03-000 |
— | ||
|
1
|
1
18700-06B04-000
Cleaner assy, 2nd air
Model r/s |
18700-06B04-000 |
— | ||
| replacement | |||||
|
1
|
1
18700-17C03-000
Cleaner assy, 2nd air
Model r/s |
18700-17C03-000 |
— | ||
|
2
|
2
01517-06125-000
Bolt
Model n/p |
01517-06125-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BOLTBolt, clamp Model n/p |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 BOLTModel n/p |
01550-0612A-000 |
from US $0.76 |
||
|
2
|
2
01550-06123-000
Bolt
Model r/s |
01550-06123-000 |
— | ||
| replacements | |||||
|
2
|
2
01550-0612B-000 BOLTBolt, clamp Model r/s |
01550-0612B-000 |
from US $0.76 |
||
|
2
|
2
01550-0612A-000 BOLTModel r/s |
01550-0612A-000 |
from US $0.76 |
||
|
3
|
3
18750-17E00-000
Bracket,2nd cle
|
18750-17E00-000 |
— | ||
|
4
|
4
18550-17E00-000
Hose, 2nd air cleaner
|
18550-17E00-000 |
— | ||
|
5
|
5
09401-26402-000
Clamp(ca)
|
09401-26402-000 |
— | ||
| replacement | |||||
|
5
|
5
09401-26408-000 CLIP |
09401-26408-000 |
US $1.68 |
||
|
6
|
6
18510-06B00-000
VALVE ASSY,2ND AIR SWITCHING
|
18510-06B00-000 |
— | ||
|
7
|
7
09359-45852-600
HOSE(4.5X8.5X600)
Hose, vacuum; L:600->00 |
09359-45852-600 |
— | ||
| replacement | |||||
|
7
|
7
09359-45855-600 Hose(4.5X8.5X300)Hose, vacuum; L:600->00 |
09359-45855-600 |
US $9.64 |
||
|
8
|
8
18741-17E00-000
Bracket,2nd air
|
18741-17E00-000 |
— | ||
|
9
|
9
18487-01D00-000
CUSHION,2ND AIR VALVE
Cushion, 2nd air valve; |
18487-01D00-000 |
— | ||
|
10
|
10
18420-17820-000
Hose set,2nd ai
|
18420-17820-000 |
— | ||
|
10A
|
10A
18490-17E00-000
Hose,2nd air va
~f.no.gr7bb-102061, ~f.no.gr7bc-100471 |
18490-17E00-000 |
— | ||
|
11
|
11
09401-21401-000
(ca) clip
Model n/p |
09401-21401-000 |
— | ||
| replacement | |||||
|
11
|
11
09401-20405-000 CLIPClip, tank Model n/p |
09401-20405-000 |
from US $5.56 |
||
|
11
|
11
09401-21403-000
Clip (ca only)
Model r/s |
09401-21403-000 |
— | ||
| replacement | |||||
|
11
|
11
09401-20405-000 CLIPClip, tank Model r/s |
09401-20405-000 |
from US $5.56 |
||
|
12
|
12
18450-48B00-000
VALVE ASSY,2ND AIR REED
|
18450-48B00-000 |
— | ||
|
13
|
13
18720-17E01-000
Bracket,reed va
|
18720-17E01-000 |
— | ||
|
14
|
14
18730-17E01-000
Bracket, reed valve lh
Model n/p |
18730-17E01-000 |
— | ||
| replacement | |||||
|
14
|
14
18730-17E02-000
Bracket,comp,re
Model n/p |
18730-17E02-000 |
— | ||
|
14
|
14
18730-17E02-000
Bracket,comp,re
Model r/s |
18730-17E02-000 |
— | ||
|
15
|
15
01517-06164-000
Bolt, front fender side
Model n/p |
01517-06164-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 BOLTModel n/p |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 BOLTModel n/p |
01550-0616A-000 |
from US $0.76 |
||
|
15
|
15
01550-06163-000
Bolt
Bolt; Model r/s |
01550-06163-000 |
— | ||
| replacements | |||||
|
15
|
15
01550-0616B-000 BOLTBolt; Model r/s |
01550-0616B-000 |
from US $0.76 |
||
|
15
|
15
01550-0616A-000 BOLTBolt; Model r/s |
01550-0616A-000 |
from US $0.76 |
||
|
16
|
16
18410-17840-000
Hose set, 2nd a
|
18410-17840-000 |
— | ||
|
17
|
17
09401-13408-000
Clip
Model n/p |
09401-13408-000 |
— | ||
| replacement | |||||
|
17
|
17
09401-13417-000 CLIPModel n/p |
09401-13417-000 |
from US $1.60 |
||
|
17
|
17
09401-13413-000 ClipClip, air hose no.1 Model r/s |
09401-13413-000 |
US $2.15 |
||
| replacement | |||||
|
17
|
17
09401-13417-000 CLIPModel r/s |
09401-13417-000 |
from US $1.60 |
||
|
18
|
18
18440-17E00-000
Pipe,2nd air no
|
18440-17E00-000 |
— | ||
|
18
|
18
18440-17E01-000
(ca)pipe,2nd ai
F.no.gr7bb-102062~, f.no.gr7bc-100472~ |
18440-17E01-000 |
— | ||
|
19
|
19
18410-17E00-000
Pipe,2nd air no
|
18410-17E00-000 |
— | ||
|
19
|
19
18410-17E01-000
Pipe,2nd air no
F.no.gr7bb-102062~, f.no.gr7bc-100472~ |
18410-17E01-000 |
— | ||
|
20
|
20
18420-17E00-000
Pipe,2nd air no
|
18420-17E00-000 |
— | ||
|
21
|
21
18441-45C00-000
Gasket
Gasket, 2nd air pipe (na); |
18441-45C00-000 |
— | ||
| replacement | |||||
|
21
|
21
18441-45C01-000 GASKET,2ND AIR PIPEGasket, 2nd air pipe (na); |
18441-45C01-000 |
from US $2.28 |
||
|
22
|
22
01421-06125-000
Stud bolt
Model n/p |
01421-06125-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-0612A-000 BOLT,STUDModel n/p |
01421-0612A-000 |
from US $1.12 |
||
|
22
|
22
01421-06163-000
Bolt
Stud bolt; Model r |
01421-06163-000 |
— | ||
| replacement | |||||
|
22
|
22
01421-0616A-000 BOLT,STUDStud bolt; Model r |
01421-0616A-000 |
from US $1.07 |
||
|
23
|
23
08316-16064-000
Nut
Model n/p |
08316-16064-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUTModel n/p |
08316-1006B-000 |
from US $0.76 |
||
|
23
|
23
08316-10063-000
Nut
Nut; Model r |
08316-10063-000 |
— | ||
| replacement | |||||
|
23
|
23
08316-1006B-000 NUTNut; Model r |
08316-1006B-000 |
from US $0.76 |
||
|
24
|
24
44311-38B02-000 Protector, hoseModel n/p |
44311-38B02-000 |
US $17.33 |
||
| replacement | |||||
|
24
|
24
44311-17E01-000 TUBE,FUEL HOSETube, fuel hose Model n/p |
44311-17E01-000 |
from US $10.03 |
||
|
24
|
24
44311-17E00-000
Tube,fuel hose
Model r |
44311-17E00-000 |
— | ||
| replacement | |||||
|
24
|
24
44311-17E01-000 TUBE,FUEL HOSETube, fuel hose Model r |
44311-17E01-000 |
from US $10.03 |
||
|
25
|
25
44552-24B00-000 MOLDING,FUEL TANK RRProtector, control cable Molding, hose; L:110->0 |
44552-24B00-000 |
from US $2.02 |
||
|
26
|
26
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
27
|
27
18432-17E00-000
Union,2nd air v
F.no.gr7bb-102062~, f.no.gr7bc-100472~ |
18432-17E00-000 |
— | ||
