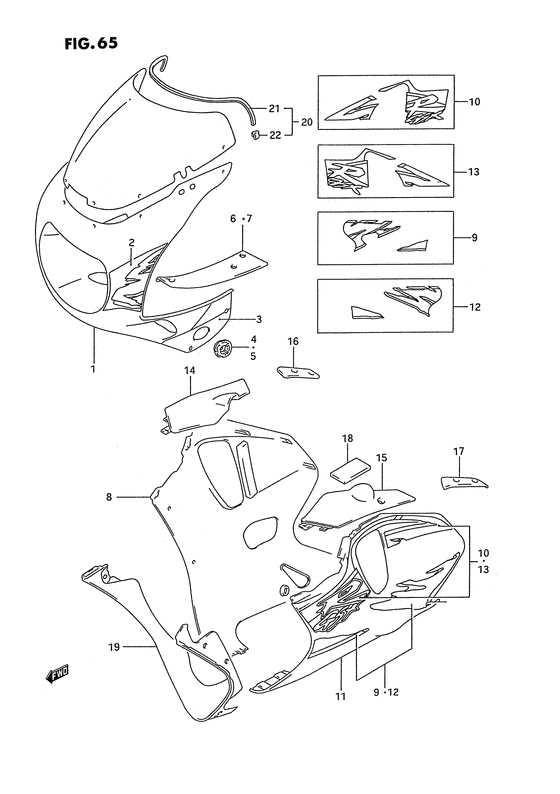

Cowling body (Model s d4a) Diagram Suzuki GSX-R750
- Year
- 1993
- Model code
- GSX-R750WP(E2) P
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94400-17EH0-33J
Cowling assy, body (black)
|
94400-17EH0-33J |
— | ||
| replacement | |||||
|
1
|
1
94400-17EH1-33J
COWLING ASSY,BODY
|
94400-17EH1-33J |
— | ||
|
2
|
2
68270-17E50-D6G
TAPE SET,COWL BODY FR
|
68270-17E50-D6G |
— | ||
|
3
|
3
68280-17E30-D6H
TAPE SET,COWL BODY SIDE
|
68280-17E30-D6H |
— | ||
|
4
|
4
94416-17E20-000
Plate,turnsigna
|
94416-17E20-000 |
— | ||
| replacement | |||||
|
4
|
4
94416-17E21-000
Plate,turnsigna
|
94416-17E21-000 |
— | ||
|
5
|
5
94417-17E20-000
Plate, turnsignal lh
|
94417-17E20-000 |
— | ||
| replacement | |||||
|
5
|
5
94417-17E21-000
Plate,turnsigna
|
94417-17E21-000 |
— | ||
|
6
|
6
94415-17E20-000 Panel,upper,rPanel, upper rh |
94415-17E20-000 |
US $30.31 |
||
| replacement | |||||
|
6
|
6
94415-17E21-000 PANEL,COWLING UPR,R |
94415-17E21-000 |
from US $17.88 |
||
|
7
|
7
94425-17E20-000 Panel,upper,lPanel, upper lh |
94425-17E20-000 |
US $30.31 |
||
| replacement | |||||
|
7
|
7
94425-17E21-000 PANEL,COWLING UPR,L |
94425-17E21-000 |
from US $17.88 |
||
|
8
|
8
94407-17EG0-Y22
Cowling assy, under rh (purple)
|
94407-17EG0-Y22 |
— | ||
| replacement | |||||
|
8
|
8
94407-17EG1-Y22
Cowling assy,un
|
94407-17EG1-Y22 |
— | ||
|
9
|
9
68180-17E80-D6F
Tape set,cowl u
|
68180-17E80-D6F |
— | ||
|
10
|
10
68180-17E90-Y81
Tape set,cowlin
|
68180-17E90-Y81 |
— | ||
|
11
|
11
94408-17EG0-Y22
Cowling assy, under lh (purple)
|
94408-17EG0-Y22 |
— | ||
| replacement | |||||
|
11
|
11
94408-17EG1-Y22
COWLING ASSY,UNDER,L
|
94408-17EG1-Y22 |
— | ||
|
12
|
12
68190-17E80-D6F
Tape set,cowl u
|
68190-17E80-D6F |
— | ||
|
13
|
13
68190-17E90-Y81
Tape set,cowlin
|
68190-17E90-Y81 |
— | ||
|
14
|
14
94416-17E10-000
PANEL,LWR FR,R
|
94416-17E10-000 |
— | ||
|
15
|
15
94426-17E10-000
PANEL,LWR FR,L
|
94426-17E10-000 |
— | ||
|
16
|
16
94436-17E00-000 PANEL,LWR RR,RPanel, lower rear rh |
94436-17E00-000 |
from US $16.01 |
||
|
17
|
17
94446-17E00-000 PANEL,LWR RR,LPanel, lower rear lh |
94446-17E00-000 |
from US $16.01 |
||
|
18
|
18
69732-17C01-000
Cushion, hose side
|
69732-17C01-000 |
— | ||
| replacement | |||||
|
18
|
18
47451-38A01-000 CUSHION,TOOL HOLDERCushion, no.2 |
47451-38A01-000 |
from US $2.39 |
||
|
19
|
19
94498-17E00-019
COWLING,UNDER CTR
Cowling, under center (black); |
94498-17E00-019 |
— | ||
|
20
|
20
94610-17E30-000
Screen set,wind
|
94610-17E30-000 |
— | ||
|
21
|
21
94631-33C01-000 MOLDINGL:700->00 |
94631-33C01-000 |
from US $9.31 |
||
|
22
|
22
94637-21E00-000 CLIP,WINDSCREEN MOLDING |
94637-21E00-000 |
from US $4.23 |
||
