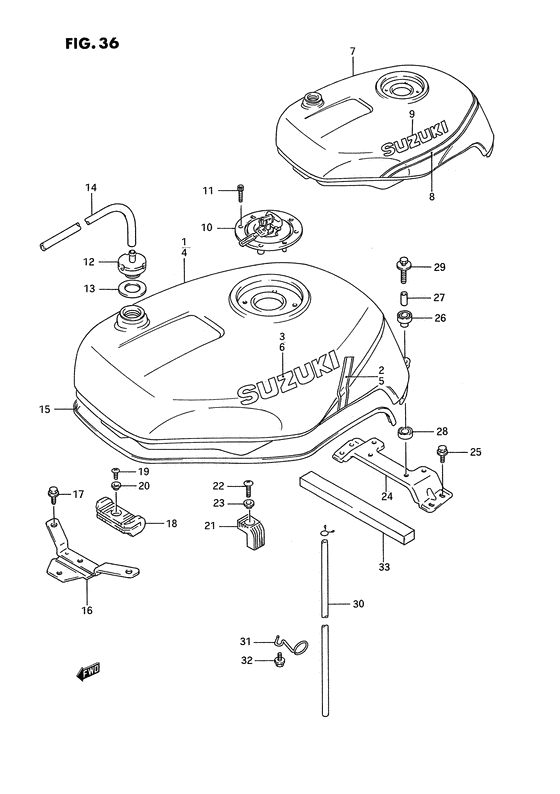

Fuel tank (Model n) Diagram Suzuki GSX-R750
- Year
- 1993
- Model code
- GSX-R750WP(E2) P
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
44100-17E00-L97
Tank assy, fuel
|
44100-17E00-L97 |
— | ||
|
1
|
1
44100-17E00-3WC
Tank assy, fuel
|
44100-17E00-3WC |
— | ||
| replacement | |||||
|
1
|
1
44100-17E22-3WC
TANK ASSY,FUEL
|
44100-17E22-3WC |
— | ||
|
1
|
1
44100-17E20-L97
Tank assy, fuel
E22 |
44100-17E20-L97 |
— | ||
|
1
|
1
44100-17E20-3WC
Tank assy, fuel
E22 |
44100-17E20-3WC |
— | ||
| replacement | |||||
|
1
|
1
44100-17E22-3WC
TANK ASSY,FUEL
E22 |
44100-17E22-3WC |
— | ||
|
2
|
2
68110-17E00-M09
Tape, fuel tank
For 3wc |
68110-17E00-M09 |
— | ||
| replacement | |||||
|
2
|
2
68110-17E01-M09
TAPE SET,FUEL TANK
For 3wc |
68110-17E01-M09 |
— | ||
|
2
|
2
68110-17E00-N61
Tape, fuel tank
For l97 |
68110-17E00-N61 |
— | ||
| replacement | |||||
|
2
|
2
68110-17E01-N61
TAPE SET,FUEL TANK
For l97 |
68110-17E01-N61 |
— | ||
|
3
|
3
68181-32B00-0JW
EMBLEM,FUEL TANK(WHITE)
Emblem (white); For l97 |
68181-32B00-0JW |
— | ||
|
3
|
3
68181-32B00-33J EMBLEM,FUEL TANKEmblem (black) Emblem (black); For 3wc |
68181-32B00-33J |
US $12.51 |
||
|
4
|
4
44100-17E60-M18
Tank assy, fuel
|
44100-17E60-M18 |
— | ||
|
4
|
4
44100-17E70-M18
Tank assy, fuel
E22 |
44100-17E70-M18 |
— | ||
|
5
|
5
68110-17E10-N59
Tape set, fuel tank
|
68110-17E10-N59 |
— | ||
| replacement | |||||
|
5
|
5
68110-17E11-N59
Tape set,fuel tank
|
68110-17E11-N59 |
— | ||
|
6
|
6
68181-32B00-0JW
EMBLEM,FUEL TANK(WHITE)
Emblem (white); |
68181-32B00-0JW |
— | ||
|
7
|
7
44100-17E90-L99
Tank assy, fuel
E2,e34 |
44100-17E90-L99 |
— | ||
| replacement | |||||
|
7
|
7
44100-17E92-L99
TANK ASSY,FUEL
E2,e34 |
44100-17E92-L99 |
— | ||
|
8
|
8
68115-17E00-M07
Tape, fuel tank
E2,e34 |
68115-17E00-M07 |
— | ||
|
9
|
9
68111-12C00-0JW
Emblem (white)
Emblem (white); E2,e34 |
68111-12C00-0JW |
— | ||
| replacement | |||||
|
9
|
9
68111-12C30-0JW EMBLEM,FUEL TANKEmblem (white); E2,e34 |
68111-12C30-0JW |
from US $28.97 |
||
|
10
|
10
44201-01851-000
Cap assy, fuel tank
|
44201-01851-000 |
— | ||
| replacement | |||||
|
10
|
10
44201-01852-000
CAP SET,FUEL TANK
|
44201-01852-000 |
— | ||
|
11
|
11
09106-05017-000 BOLT(5X20) |
09106-05017-000 |
from US $1.06 |
||
|
12
|
12
44240-06B10-000 PLUG,FUEL TANK BREATHERPlug,breather |
44240-06B10-000 |
from US $25.21 |
||
|
13
|
13
09168-12012-000 GASKET(12.5X20X2.5) |
09168-12012-000 |
from US $1.12 |
||
|
14
|
14
09352-50823-600
HOSE(5X8.2X600)
Hose, breather (l:600->70); |
09352-50823-600 |
— | ||
| replacements | |||||
|
14
|
14
44420-44AR0-000 HOSE SET,FUELHose, breather (l:600->70); |
44420-44AR0-000 |
US $11.95 |
||
|
14
|
14
09352-50005-600 Hose(5X8.2X600)Hose, breather (l:600->70); |
09352-50005-600 |
US $4.10 |
||
|
15
|
15
68241-17E00-000
Molding, fuel tank
|
68241-17E00-000 |
— | ||
| replacement | |||||
|
15
|
15
68241-04X50-00B MOLDING |
68241-04X50-00B |
from US $15.96 |
||
|
16
|
16
44520-17E03-000
Bracket,fuel ta
|
44520-17E03-000 |
— | ||
|
17
|
17
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
18
|
18
44511-41C00-000
CUSHION,FUEL TANK FR
|
44511-41C00-000 |
— | ||
|
19
|
19
02142-05104-000
Screw
|
02142-05104-000 |
— | ||
| replacement | |||||
|
19
|
19
02142-0510B-000 SCREWBolt |
02142-0510B-000 |
from US $0.76 |
||
|
20
|
20
09169-05012-000 WASHER |
09169-05012-000 |
from US $3.25 |
||
|
21
|
21
44545-33C00-000
Cushion, side
|
44545-33C00-000 |
— | ||
| replacement | |||||
|
21
|
21
44545-33C01-000
CUSHION,TANK SIDE
|
44545-33C01-000 |
— | ||
|
22
|
22
02142-06207-000 SCREW |
02142-06207-000 |
from US $0.80 |
||
|
23
|
23
09169-06051-000
Washer
|
09169-06051-000 |
— | ||
| replacements | |||||
|
23
|
23
09169-06055-000 WASHER |
09169-06055-000 |
from US $0.91 |
||
|
23
|
23
09169-06045-000 WASHER |
09169-06045-000 |
from US $0.96 |
||
|
24
|
24
44530-17E00-000
Bracket, fuel tank rear
|
44530-17E00-000 |
— | ||
| replacement | |||||
|
24
|
24
44530-17E02-000
Bracket, fuel tank rear
|
44530-17E02-000 |
— | ||
|
25
|
25
01550-06167-000 BOLT |
01550-06167-000 |
from US $0.68 |
||
|
26
|
26
09320-10038-000 CUSHIONCushion, lower Cushion, rear upper; |
09320-10038-000 |
from US $1.08 |
||
|
27
|
27
09180-06072-000
Spacer (6.4x9x18)
|
09180-06072-000 |
— | ||
| replacement | |||||
|
27
|
27
09180-06271-000 SPACER(6.5X9X18)Spacer (6.5x9x18) |
09180-06271-000 |
from US $1.51 |
||
|
28
|
28
09320-14017-000 CUSHIONCushion, rear upper Cushion, rear lower; |
09320-14017-000 |
from US $1.12 |
||
|
29
|
29
01500-06353-000
Bolt
|
01500-06353-000 |
— | ||
| replacements | |||||
|
29
|
29
01500-0635B-000 Bolt |
01500-0635B-000 |
from US $0.76 |
||
|
29
|
29
01500-0635A-000 Bolt |
01500-0635A-000 |
from US $3.47 |
||
|
30
|
30
09352-50823-00B
HOSE(5X8.2X2000)
Hose, water drain (l:2000->30); |
09352-50823-00B |
— | ||
| replacement | |||||
|
30
|
30
09352-50005-00B Hose(5X8.2X2000)Hose, water drain (l:2000->30); |
09352-50005-00B |
from US $9.27 |
||
|
31
|
31
44481-17E01-000
Guide,drain hos
|
44481-17E01-000 |
— | ||
|
32
|
32
01550-06127-000 BOLTBolt, rect |
01550-06127-000 |
from US $0.68 |
||
|
33
|
33
13841-17E00-000
CUSHION,AIR SEAL
|
13841-17E00-000 |
— | ||
