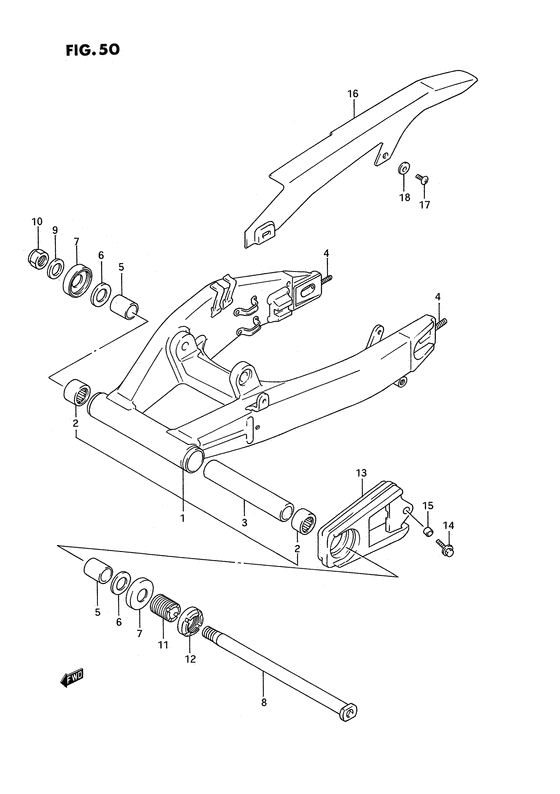

Rear swinging arm (Model n/p) Diagram Suzuki GSX-R750
- Year
- 1993
- Model code
- GSX-R750WP(E2) P
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
61000-17E00-000
SWINGINGARM ASSY,RR
|
61000-17E00-000 |
— | ||
|
2
|
2
09263-25024-000 BEARING(25X33X30)Bearing Bearing, pivot; |
09263-25024-000 |
from US $34.99 |
||
|
3
|
3
61282-17C00-000 SPACER,RR SWGARM PIVOT CTRSpacer,center |
61282-17C00-000 |
from US $15.05 |
||
|
4
|
4
61431-40C00-000
Stud,chain adju
Bolt, stud; |
61431-40C00-000 |
— | ||
| replacement | |||||
|
4
|
4
09108-08261-000 BOLT,STUDBolt, stud; |
09108-08261-000 |
from US $2.13 |
||
|
5
|
5
61251-17C00-000 SPACER,RR SWGARM PIVOT BERRINGSpacer, pivot bearing |
61251-17C00-000 |
from US $47.52 |
||
|
6
|
6
08211-20381-000 WASHERThrust washer (t:1) Washer, thrust (t:1); |
08211-20381-000 |
from US $1.68 |
||
|
7
|
7
61262-17C00-000
DUST SEAL,RR SWGARM PIVOT
Seal, dust; |
61262-17C00-000 |
— | ||
| replacement | |||||
|
7
|
7
61262-17C01-000 Dust Seal,rr Swgarm PivotSeal, dust; |
61262-17C01-000 |
from US $10.98 |
||
|
8
|
8
61211-17E01-000
Shaft,rear swin
|
61211-17E01-000 |
— | ||
|
9
|
9
08322-11188-000
Washer
|
08322-11188-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0118B-000 WASHER |
08322-0118B-000 |
from US $3.69 |
||
|
10
|
10
09159-18007-000 NUT |
09159-18007-000 |
from US $22.59 |
||
|
11
|
11
61213-40C30-000 BOLT,RR SWGARM PIVOTBolt, pivot |
61213-40C30-000 |
US $48.21 |
||
|
12
|
12
61214-40C30-000
Nut, pivot
|
61214-40C30-000 |
— | ||
| replacement | |||||
|
12
|
12
61214-40C31-000 NUT,RR SWGARM PIVOT BOLT |
61214-40C31-000 |
from US $27.97 |
||
|
13
|
13
61273-17E01-000
Buffer, chain touch defense
|
61273-17E01-000 |
— | ||
| replacements | |||||
|
13
|
13
61273-17E02-000
BUFFER,CHAIN TOUCH DEFENSE
|
61273-17E02-000 |
— | ||
|
13
|
13
61273-17E03-000
Buffer,chain Touch Defense
|
61273-17E03-000 |
— | ||
|
14
|
14
09116-06111-000 BoltBolt (6x20) |
09116-06111-000 |
from US $2.89 |
||
| replacement | |||||
|
14
|
14
09116-06152-000 BOLT(6X20) |
09116-06152-000 |
from US $1.44 |
||
|
15
|
15
09180-06002-000
Spacer (6.8x10x7)
|
09180-06002-000 |
— | ||
| replacement | |||||
|
15
|
15
09180-06283-000 SPACER(6.5X10X7)Spacer (6.5x10x7) |
09180-06283-000 |
from US $1.52 |
||
|
16
|
16
61310-17E00-000
CASE,CHAIN
|
61310-17E00-000 |
— | ||
|
17
|
17
02142-06104-000
Screw
|
02142-06104-000 |
— | ||
| replacements | |||||
|
17
|
17
02142-0610B-000 SCREWStopper, cl rlse cam shaft |
02142-0610B-000 |
from US $0.76 |
||
|
17
|
17
02142-0610A-000 SCREW |
02142-0610A-000 |
from US $0.80 |
||
|
18
|
18
09169-06026-000 WASHERWasher; |
09169-06026-000 |
from US $1.12 |
||
