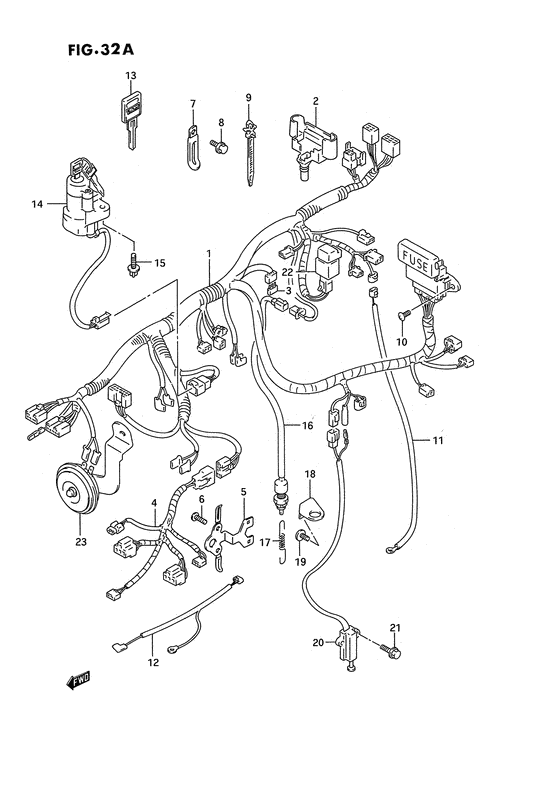

Wiring harness (Model r/s) Diagram Suzuki GSX-R750
- Year
- 1993
- Model code
- GSX-R750WP(E2) P
- Engine Capacity
- 750
- Model
- GSX-R750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
36610-17E20-000
HARNESS,WIRING NO.1
|
36610-17E20-000 |
— | ||
|
2
|
2
31861-17E20-000
CAP,STARTER RELAY
|
31861-17E20-000 |
— | ||
|
3
|
3
36611-38A00-000
Diode
|
36611-38A00-000 |
— | ||
| replacement | |||||
|
3
|
3
36611-38A10-000 DIODE |
36611-38A10-000 |
from US $7.14 |
||
|
4
|
4
36620-17E00-000
Harness,wiring,
|
36620-17E00-000 |
— | ||
|
5
|
5
36680-17E20-000
Holder comp,cou
Holder, cupler no.1; |
36680-17E20-000 |
— | ||
|
6
|
6
03541-05083-000
Screw 5 x 8
|
03541-05083-000 |
— | ||
| replacement | |||||
|
6
|
6
03541-0508A-000 SCREW |
03541-0508A-000 |
from US $2.21 |
||
|
7
|
7
09404-06206-000
CLAMP(L:45)
|
09404-06206-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
7
|
7
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
7
|
7
09404-06031-000 Clamp,rsvr Tank Ovfl Hose |
09404-06031-000 |
from US $1.37 |
||
|
7
|
7
09404-06413-000
Clamp throttle
Clamp (l:55); |
09404-06413-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06432-000
CLAMP(L:65)
Clamp (l:55); |
09404-06432-000 |
— | ||
|
7
|
7
09404-06039-000 Clamp(L:65)Clamp (l:55); |
09404-06039-000 |
from US $1.82 |
||
|
7
|
7
09404-06426-000
Clamp (l:95)
|
09404-06426-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
7
|
7
09404-06433-000
CLAMP(L:80)
|
09404-06433-000 |
— | ||
|
7
|
7
09404-06436-000 Clamp(L:80) |
09404-06436-000 |
from US $2.13 |
||
|
7
|
7
09404-06036-000 Clamp(L:80) |
09404-06036-000 |
from US $1.82 |
||
|
7
|
7
09404-06429-000 CLAMP(L:45)Clamp, coil lead wire |
09404-06429-000 |
from US $1.52 |
||
|
7
|
7
09404-06431-000
CLAMP(L:65)
|
09404-06431-000 |
— | ||
| replacements | |||||
|
7
|
7
09404-06432-000
CLAMP(L:65)
|
09404-06432-000 |
— | ||
|
7
|
7
09404-06039-000 Clamp(L:65) |
09404-06039-000 |
from US $1.82 |
||
|
7
|
7
09404-06038-000 Clamp(L:65) |
09404-06038-000 |
from US $2.40 |
||
|
7
|
7
09404-06434-000
CLAMP(L:80 T:1.0)
|
09404-06434-000 |
— | ||
|
7
|
7
09404-08418-000
CLAMP(L:65)
|
09404-08418-000 |
— | ||
| replacement | |||||
|
7
|
7
09404-08421-000 Clamp(L:65) |
09404-08421-000 |
from US $1.12 |
||
|
7
|
7
09404-08420-000 CLAMP(L:120 T:1.0) |
09404-08420-000 |
from US $2.08 |
||
|
8
|
8
01550-06103-000
Bolt, front
|
01550-06103-000 |
— | ||
| replacements | |||||
|
8
|
8
01550-0610B-000 BoltBolt |
01550-0610B-000 |
from US $0.80 |
||
|
8
|
8
01550-0610A-000 BOLT |
01550-0610A-000 |
from US $0.80 |
||
|
9
|
9
09407-11402-000 CLAMP(L:90) |
09407-11402-000 |
from US $1.75 |
||
| replacement | |||||
|
9
|
9
09407-17402-000 CLAMP |
09407-17402-000 |
from US $1.98 |
||
|
9
|
9
09407-14403-000 CLAMP(L:125)Clamp, spark plug cap |
09407-14403-000 |
from US $2.08 |
||
|
9
|
9
09407-18403-000
Clamp, switch wire
|
09407-18403-000 |
— | ||
| replacement | |||||
|
9
|
9
09407-18402-000 CLAMP(L:165)Clamp (l:165) |
09407-18402-000 |
from US $1.98 |
||
|
9
|
9
09407-25401-000 CLAMP(L:235)Clamp (l:235) |
09407-25401-000 |
from US $2.08 |
||
|
10
|
10
02142-06123-000
Screw
Screw, box; |
02142-06123-000 |
— | ||
| replacements | |||||
|
10
|
10
02142-0612B-000 SCREWScrew, box; |
02142-0612B-000 |
from US $0.76 |
||
|
10
|
10
02142-0612A-000 SCREWScrew, box; |
02142-0612A-000 |
from US $0.80 |
||
|
11
|
11
36852-46E10-000
Wire,water temp
|
36852-46E10-000 |
— | ||
|
12
|
12
36851-17E10-000 WIRE,OIL PRESSURE SWITCH LEADWire, pressure switch reed Wire, oil switch lead; |
36851-17E10-000 |
from US $10.97 |
||
|
13
|
13
37146-18E00-000
Key, blank
Opt |
37146-18E00-000 |
— | ||
| replacement | |||||
|
13
|
13
37146-33E00-000 KEY,BLANKOpt |
37146-33E00-000 |
from US $27.28 |
||
|
14
|
14
37100-18E00-000
Switch assy, ignition
Model r |
37100-18E00-000 |
— | ||
| replacement | |||||
|
14
|
14
37100-46E21-000
LOCK ASSY,STEERING
Model r |
37100-46E21-000 |
— | ||
|
14
|
14
37100-18E01-000
Switch assy, ignition
Model s |
37100-18E01-000 |
— | ||
| replacement | |||||
|
14
|
14
37100-46E21-000
LOCK ASSY,STEERING
Model s |
37100-46E21-000 |
— | ||
|
14
|
14
37100-18E10-000
Switch assy, ignition
Model r e24 |
37100-18E10-000 |
— | ||
| replacement | |||||
|
14
|
14
37100-46E11-000
LOCK ASSY,STEERING
Model r e24 |
37100-46E11-000 |
— | ||
|
14
|
14
37100-18E11-000
Switch assy, ignition
Model s e24 |
37100-18E11-000 |
— | ||
| replacement | |||||
|
14
|
14
37100-46E11-000
LOCK ASSY,STEERING
Model s e24 |
37100-46E11-000 |
— | ||
|
15
|
15
09119-08082-000
Bolt,m8x20
|
09119-08082-000 |
— | ||
| replacement | |||||
|
15
|
15
37152-17K00-000 BOLT,STEERING LOCK |
37152-17K00-000 |
from US $1.94 |
||
|
16
|
16
37740-24A00-000 SWITCH ASSY,STOP LAMPSwitch assy, stop lamp Switch assy, stop lamp; |
37740-24A00-000 |
from US $14.78 |
||
|
17
|
17
09443-06012-000 SPRINGSpring, stop lamp switch |
09443-06012-000 |
from US $5.07 |
||
|
18
|
18
43250-33C00-000
Bracket,stop la
Bracket, switch; |
43250-33C00-000 |
— | ||
|
19
|
19
09139-06027-000 SCREW(6X12) |
09139-06027-000 |
from US $1.82 |
||
|
20
|
20
37840-12D00-000
Switch, side stand
|
37840-12D00-000 |
— | ||
| replacements | |||||
|
20
|
20
37840-12X50-000
SWITCH ASSY,SIDE STAND WARNING
|
37840-12X50-000 |
— | ||
|
20
|
20
37840-12X51-000 Switch Assy,Side Stand |
37840-12X51-000 |
US $60.35 |
||
|
21
|
21
01550-06203-000
Bolt
|
01550-06203-000 |
— | ||
| replacement | |||||
|
21
|
21
01550-0620B-000 BOLTBolt, inspection cap |
01550-0620B-000 |
from US $0.76 |
||
|
22
|
22
38740-24B10-000
Relay assy, side stand
|
38740-24B10-000 |
— | ||
| replacement | |||||
|
22
|
22
38740-24X50-000 RELAY ASSYRelay, neutral start |
38740-24X50-000 |
from US $25.08 |
||
|
23
|
23
38502-17E11-000 Horn assy, low |
38502-17E11-000 |
US $109.20 |
||
| replacement | |||||
|
23
|
23
38502-17E12-000 HORN ASSYHorn assy, low |
38502-17E12-000 |
from US $66.61 |
||
|
23
|
23
38501-17E10-000
Horn assy, high
E25,e34,e37,e39 |
38501-17E10-000 |
— | ||
| replacement | |||||
|
23
|
23
38501-17E11-000
HORN ASSY
E25,e34,e37,e39 |
38501-17E11-000 |
— | ||
