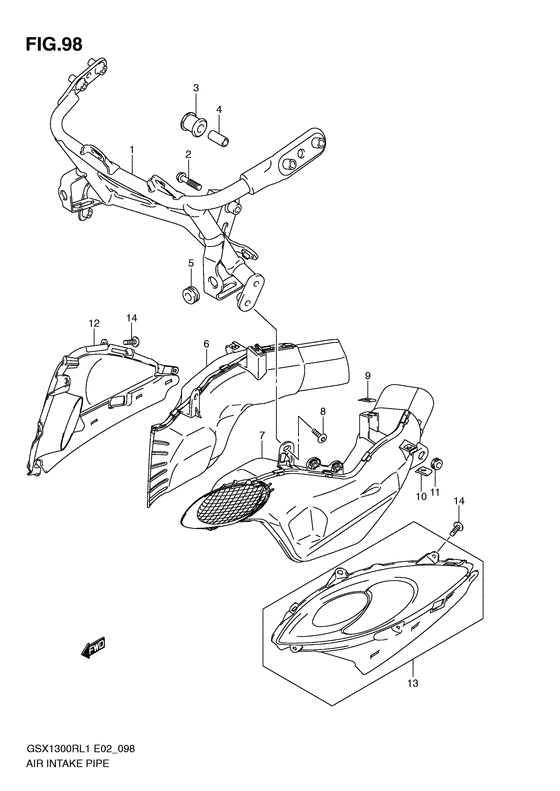

Air intake pipe Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
94510-15H00-000
Brace, cowling
|
94510-15H00-000 |
— | ||
| replacement | |||||
|
1
|
1
94510-15H01-000 BRACE COMP,COWLING |
94510-15H01-000 |
from US $509.39 |
||
|
2
|
2
09103-08367-000 BOLT(8X40)Bolt, brace; |
09103-08367-000 |
from US $5.17 |
||
|
3
|
3
94541-41C00-000 CUSHION,COWLING BRACECushion, cowling brace Cushion, upper; |
94541-41C00-000 |
from US $3.04 |
||
|
4
|
4
09180-08215-000 SPACER(8.6X12.2X26.5)Spacer (8.6x12.2x26.5); |
09180-08215-000 |
from US $6.70 |
||
|
5
|
5
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
6
|
6
94420-15H00-000
Pipe, intake rh
|
94420-15H00-000 |
— | ||
| replacement | |||||
|
6
|
6
94420-15H01-000 PIPE,AIR INTAKE,R |
94420-15H01-000 |
from US $69.16 |
||
|
7
|
7
94430-15H00-000
Pipe, intake lh
|
94430-15H00-000 |
— | ||
| replacement | |||||
|
7
|
7
94430-15H01-000 PIPE,AIR INTAKE,L |
94430-15H01-000 |
from US $65.60 |
||
|
8
|
8
94423-15H00-000 SCREW,INTAKE PIPE & BRACE |
94423-15H00-000 |
from US $3.02 |
||
|
9
|
9
94484-24F00-000 NUT,COWLNut, meter panel; |
94484-24F00-000 |
from US $1.67 |
||
|
10
|
10
09148-05038-000 NUTNut, inner |
09148-05038-000 |
from US $0.91 |
||
|
11
|
11
09320-08028-000 CUSHIONGrommet |
09320-08028-000 |
from US $2.13 |
||
|
12
|
12
94671-15H00-YAY
COVER,INTAKE,R
Cover, intake rh (black); |
94671-15H00-YAY |
— | ||
| replacement | |||||
|
12
|
12
94671-15H01-YAY Cover,intake,rCover, intake rh (black); |
94671-15H01-YAY |
from US $217.12 |
||
|
12
|
12
94671-15H00-YKZ
COVER,INTAKE,R(BLUE)
Cover, intake rh (blue); |
94671-15H00-YKZ |
— | ||
| replacement | |||||
|
12
|
12
94671-15H01-YKZ Cover,intake,rCover, intake rh (blue); |
94671-15H01-YKZ |
from US $217.12 |
||
|
12
|
12
94671-15H00-YPA
COVER,INTAKE,R(WHITE)
Cover, intake rh (white); |
94671-15H00-YPA |
— | ||
| replacement | |||||
|
12
|
12
94671-15H01-YPA Cover,intake,rCover, intake rh (white); |
94671-15H01-YPA |
from US $217.12 |
||
|
13
|
13
94681-15H00-YAY COVER,INTAKE,LCover, intake lh (black); |
94681-15H00-YAY |
from US $217.12 |
||
|
13
|
13
94681-15H00-YKZ COVER,INTAKE,L(BLUE)Cover, intake lh (blue); |
94681-15H00-YKZ |
US $273.60 |
||
| replacement | |||||
|
13
|
13
94681-15H01-YKZ Cover,intake,lCover, intake lh (blue); |
94681-15H01-YKZ |
from US $290.90 |
||
|
13
|
13
94681-15H00-YPA COVER,INTAKE,L(WHITE)Cover, intake lh (white); |
94681-15H00-YPA |
US $273.60 |
||
| replacement | |||||
|
13
|
13
94681-15H01-YPA Cover,intake,lCover, intake lh (white); |
94681-15H01-YPA |
from US $268.41 |
||
|
14
|
14
09132-05053-000 SCREW(5X16)Screw (5x16); |
09132-05053-000 |
from US $0.76 |
||
