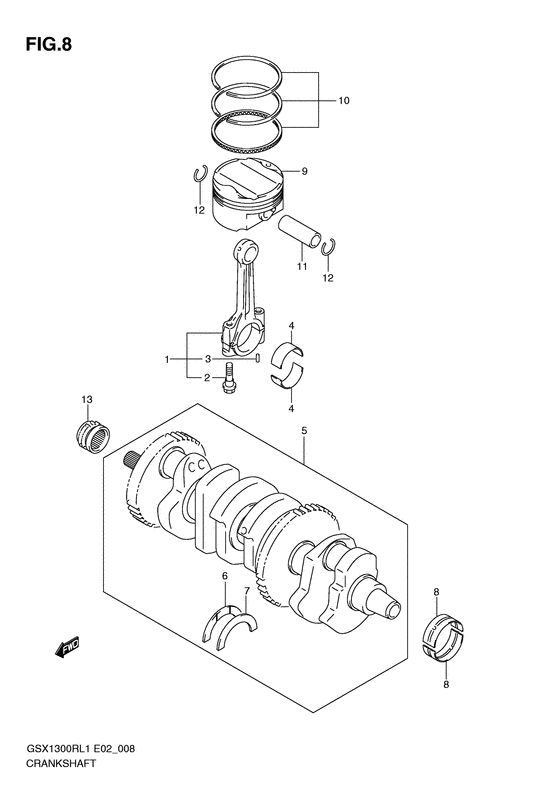

Crankshaft Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12160-15H00-000 CONNECTING ROD ASSY |
12160-15H00-000 |
from US $130.64 |
||
|
2
|
2
12163-24F10-000 BOLT,CONNECTING ROD |
12163-24F10-000 |
from US $4.40 |
||
|
3
|
3
04221-04089-000 PINPin, bal sprocket driven Pin, connrod; |
04221-04089-000 |
from US $0.76 |
||
|
4
|
4
12164-46E01-0A0 BEARING,CRANK PIN (Green)Bearing, crank pin (green); |
12164-46E01-0A0 |
from US $14.40 |
||
|
4
|
4
12164-46E01-0B0 Bearing, crank pin (black)Bearing, crank pin (black); |
12164-46E01-0B0 |
from US $14.40 |
||
|
4
|
4
12164-46E01-0C0 Bearing, crank pin (brown)Bearing, crank pin (brown); |
12164-46E01-0C0 |
from US $14.40 |
||
|
4
|
4
12164-46E01-0D0 Bearing, crank pin (yellow)Bearing, crank pin (yellow); |
12164-46E01-0D0 |
from US $14.40 |
||
|
5
|
5
12000-15810-000 CRANKSHAFT SET |
12000-15810-000 |
from US $1,561.76 |
||
|
6
|
6
12228-24F00-0D0 BEARING,CRANK THRUST,LBearing, thrust rh (green); |
12228-24F00-0D0 |
from US $4.80 |
||
|
7
|
7
12228-24F00-0A0 BEARING,CRANK THRUST,LBearing, thrust lh (red); |
12228-24F00-0A0 |
from US $6.29 |
||
|
7
|
7
12228-24F00-0B0 BEARING,CRANK THRUST,LBearing, thrust lh (black); |
12228-24F00-0B0 |
from US $6.29 |
||
|
7
|
7
12228-24F00-0C0 BEARING,CRANK THRUST,LBearing, thrust lh (blue); |
12228-24F00-0C0 |
from US $6.29 |
||
|
7
|
7
12228-24F00-0D0 BEARING,CRANK THRUST,LBearing, thrust lh (green); |
12228-24F00-0D0 |
from US $4.80 |
||
|
7
|
7
12228-24F00-0E0 BEARING,CRANK THRUST,LBearing, thrust lh (yellow); |
12228-24F00-0E0 |
from US $6.29 |
||
|
7
|
7
12228-24F00-0F0 BEARING,CRANK THRUST,LBearing, thrust lh (white); |
12228-24F00-0F0 |
from US $6.29 |
||
|
8
|
8
12229-15H00-0A0
Bearing, crankshaft (green)
Bearing, crankshaft (green); |
12229-15H00-0A0 |
— | ||
| replacement | |||||
|
8
|
8
12229-15H10-0A0 Bearing,crankshaftBearing, crankshaft (green); |
12229-15H10-0A0 |
from US $8.96 |
||
|
8
|
8
12229-15H00-0B0
Bearing, crankshaft (black)
Bearing, crankshaft (black); |
12229-15H00-0B0 |
— | ||
| replacement | |||||
|
8
|
8
12229-15H10-0B0 Bearing,crankshaftBearing, crankshaft (black); |
12229-15H10-0B0 |
from US $8.51 |
||
|
8
|
8
12229-15H00-0C0
Bearing, crankshaft (brown)
Bearing, crankshaft (brown); |
12229-15H00-0C0 |
— | ||
| replacement | |||||
|
8
|
8
12229-15H10-0C0 Bearing,crankshaftBearing, crankshaft (brown); |
12229-15H10-0C0 |
from US $8.51 |
||
|
8
|
8
12229-15H00-0D0
Bearing, crankshaft (yellow)
Bearing, crankshaft (yellow); |
12229-15H00-0D0 |
— | ||
| replacement | |||||
|
8
|
8
12229-15H10-0D0 Bearing,crankshaftBearing, crankshaft (yellow); |
12229-15H10-0D0 |
from US $9.86 |
||
|
8
|
8
12229-15H00-0E0
Bearing, crankshaft (blue)
Bearing, crankshaft (blue); |
12229-15H00-0E0 |
— | ||
| replacement | |||||
|
8
|
8
12229-15H10-0E0 Bearing,crankshaftBearing, crankshaft (blue); |
12229-15H10-0E0 |
from US $8.96 |
||
|
9
|
9
12111-15H00-0F0 PISTON |
12111-15H00-0F0 |
US $284.21 |
||
|
10
|
10
12140-15H00-000 RING SET,PISTON |
12140-15H00-000 |
from US $89.76 |
||
|
11
|
11
12151-07D00-000 PIN,PISTONPin, piston |
12151-07D00-000 |
from US $14.45 |
||
|
12
|
12
09381-18003-000 CIRCLIP |
09381-18003-000 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
09381-18005-000 CIRCLIP |
09381-18005-000 |
from US $1.12 |
||
|
13
|
13
12731-24F10-000 SPROCKET,CAM CHAIN DRIVE |
12731-24F10-000 |
from US $31.46 |
||
