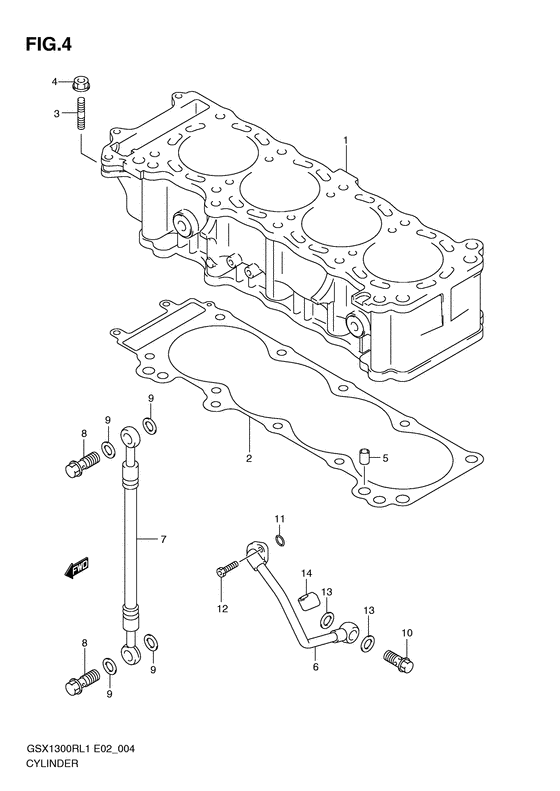

Cylinder Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11210-15H00-0F0 CYLINDER |
11210-15H00-0F0 |
from US $1,792 |
||
|
2
|
2
11241-15H00-000 GASKET,CYLINDERGasket, cylinder |
11241-15H00-000 |
from US $27.36 |
||
|
3
|
3
01421-0625B-000 BOLT,STUDStud bolt; |
01421-0625B-000 |
from US $3.15 |
||
|
4
|
4
08316-1006B-000 NUTNut; |
08316-1006B-000 |
from US $0.80 |
||
|
5
|
5
04211-11169-000 PINPin, dowel Pin; |
04211-11169-000 |
from US $1.06 |
||
|
6
|
6
11280-24F00-000 PIPE,CRANKCASE OIL |
11280-24F00-000 |
from US $34.22 |
||
|
7
|
7
11282-24F00-000 HOSE,CYLINDER HEAD OIL |
11282-24F00-000 |
from US $57 |
||
|
8
|
8
09360-10062-000 UNIONBolt, upper Union; |
09360-10062-000 |
from US $4.96 |
||
|
9
|
9
09168-10007-000 GASKET(10.1X16X1)Gasket, parking pawl Gasket (10.1x16x1); |
09168-10007-000 |
from US $1.76 |
||
|
10
|
10
09360-14012-000 BOLT,14X27Bolt, union (14x27) Union; |
09360-14012-000 |
from US $5.58 |
||
|
11
|
11
09280-12012-000 O RING(D:2.4,ID:11.8)O ring (d:2.4 id:11.8) O ring (d:2.4,id:11.8); |
09280-12012-000 |
from US $3.42 |
||
|
12
|
12
09106-06073-000 BOLT(6X16)Bolt, lower Bolt (6x16); |
09106-06073-000 |
from US $1.76 |
||
|
13
|
13
09168-14015-000 GASKET(14X20X1.5)Gasket, oil hose union Gasket (14x20x1.5); |
09168-14015-000 |
from US $1.19 |
||
|
14
|
14
11283-24F00-000 CUSHION,CRANKCASE OIL PIPE |
11283-24F00-000 |
from US $4.27 |
