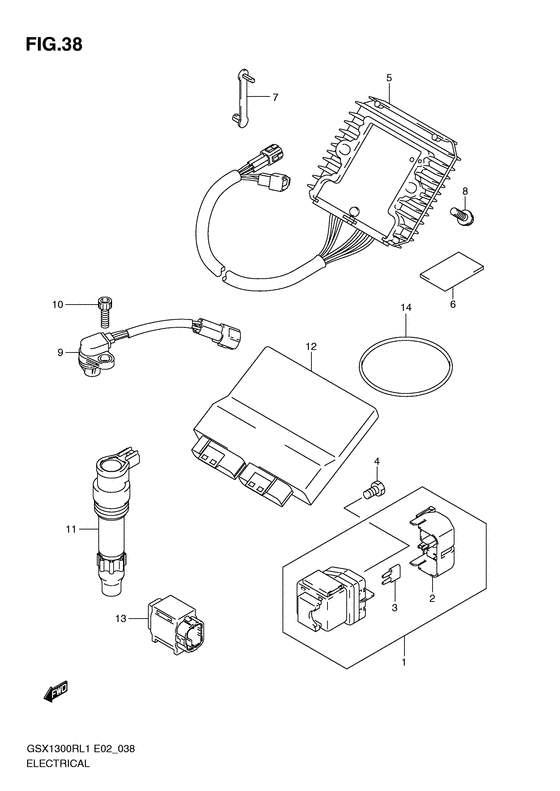

Electrical (Gsx1300rl1 e14) Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31800-44G00-000 RELAY ASSY,STARTING MOTOR |
31800-44G00-000 |
from US $68.64 |
||
|
2
|
2
31861-38G00-000 COVERCover, starter relay Cover, rectifier; |
31861-38G00-000 |
from US $2.43 |
||
|
3
|
3
09481-30501-000 FUSE(30A)Fuse (30a); |
09481-30501-000 |
from US $1.08 |
||
|
4
|
4
09128-06013-000 SCREW(6X8)Screw Screw (6x8); |
09128-06013-000 |
from US $1.94 |
||
|
5
|
5
32800-15H10-000
Rectifier Assy
|
32800-15H10-000 |
— | ||
| replacement | |||||
|
5
|
5
32800-15H11-000 Rectifier Assy |
32800-15H11-000 |
from US $263.12 |
||
|
6
|
6
33652-36000-000 CUSHION(30X50X3)Protector, cdi (30x50x3.0) Protector (30x50x3); |
33652-36000-000 |
from US $1.35 |
||
|
7
|
7
36651-48E00-000 CLAMP(L:63)Clamp, wiring harness Clamp, rectifier lead; |
36651-48E00-000 |
from US $1.92 |
||
|
8
|
8
02162-0625A-000 SCREW |
02162-0625A-000 |
from US $0.76 |
||
|
9
|
9
33220-01H00-000
SENSOR ASSY,CAM POSITION
|
33220-01H00-000 |
— | ||
| replacement | |||||
|
9
|
9
33220-01H01-000 Sensor Assy,cam Position |
33220-01H01-000 |
from US $64.20 |
||
|
10
|
10
07130-0616A-000 BoltBolt, piston jet valve |
07130-0616A-000 |
from US $0.96 |
||
| replacement | |||||
|
10
|
10
07130-0616B-000 Bolt |
07130-0616B-000 |
from US $0.91 |
||
|
11
|
11
33410-24F10-000
COIL ASSY,IGNITION
|
33410-24F10-000 |
— | ||
| replacement | |||||
|
11
|
11
33410-24F11-000 Coil Assy,ignition |
33410-24F11-000 |
from US $126.72 |
||
|
12
|
12
32920-15H50-000
CONTROL UNIT,FI
|
32920-15H50-000 |
— | ||
| replacement | |||||
|
12
|
12
32920-15H51-000 Control Unit,fi |
32920-15H51-000 |
US $1,310.64 |
||
|
13
|
13
33960-06G10-000 SENSOR ASSY,FUEL CUT |
33960-06G10-000 |
from US $60.04 |
||
|
14
|
14
09280-76005-000 O RING(D:3.5,ID:76)Band (d:3.5 id:76) O ring (d:3.5,id;76); |
09280-76005-000 |
from US $6.70 |
||
