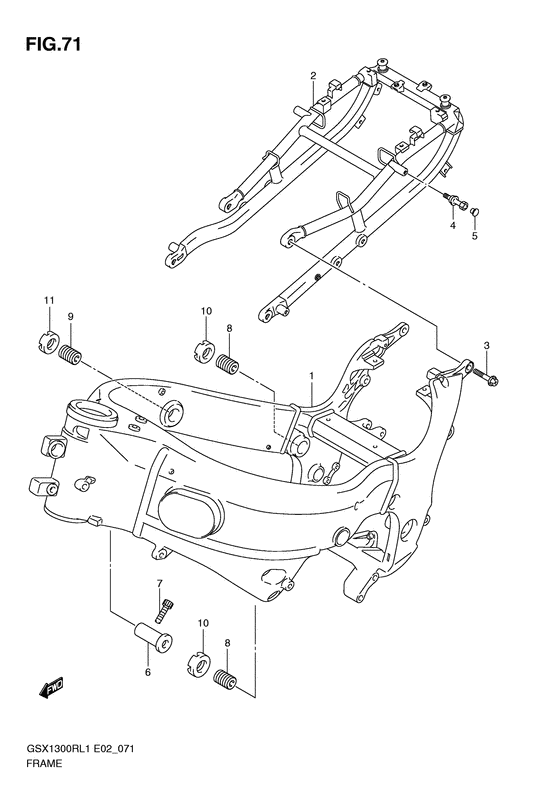

Frame Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-15H04-YAP
Frame
Frame (black); |
41100-15H04-YAP |
— | ||
| replacement | |||||
|
1
|
1
41100-15H13-YAP FRAME(BLACK)Frame (black); |
41100-15H13-YAP |
from US $3,625.76 |
||
|
2
|
2
41200-15H00-000
Rail, seat
|
41200-15H00-000 |
— | ||
| replacement | |||||
|
2
|
2
41200-15H13-000 RAIL COMP,SEAT |
41200-15H13-000 |
from US $788.20 |
||
|
3
|
3
09103-10296-000 BOLT(10X30)Bolt, seat rail Bolt (10x30); |
09103-10296-000 |
from US $2.75 |
||
|
4
|
4
46315-24F01-000 HOOK,SEAT RAIL |
46315-24F01-000 |
from US $26.40 |
||
|
5
|
5
09250-05009-000 CAP(OD:10)Cap, inlet case |
09250-05009-000 |
from US $1.06 |
||
|
6
|
6
41911-33E10-000 SPACER,ENGINE MTGSpacer, engine mount; |
41911-33E10-000 |
from US $12.81 |
||
|
7
|
7
09106-08105-000 BOLT(8X30)Bolt (8x30); |
09106-08105-000 |
from US $1.68 |
||
|
8
|
8
41921-15H00-000 Bolt, crankcase adjustBolt, crankcase adjust; |
41921-15H00-000 |
US $45.43 |
||
| replacement | |||||
|
8
|
8
41921-15H20-000 BOLT,CRANK CASE ADJUSTBolt, crankcase adjust; |
41921-15H20-000 |
from US $28.34 |
||
|
9
|
9
41921-15H10-000 Bolt, crankcase adjustBolt, crankcase adjust; |
41921-15H10-000 |
US $34.13 |
||
| replacement | |||||
|
9
|
9
41921-15H30-000 BOLT,CRANK CASE ADJUSTBolt, crankcase adjust; |
41921-15H30-000 |
from US $21.34 |
||
|
10
|
10
41922-19F11-000
Nut, crank case adjust
|
41922-19F11-000 |
— | ||
| replacement | |||||
|
10
|
10
41922-19F12-000 NUT,CRANK CASE ADJUST |
41922-19F12-000 |
from US $15.71 |
||
|
11
|
11
41922-33E10-000 Nut, crank case adjust lh |
41922-33E10-000 |
US $18.17 |
||
| replacement | |||||
|
11
|
11
41922-33E30-000 NUT,CRANK CASE ADJUST BOLT |
41922-33E30-000 |
from US $11.04 |
||
