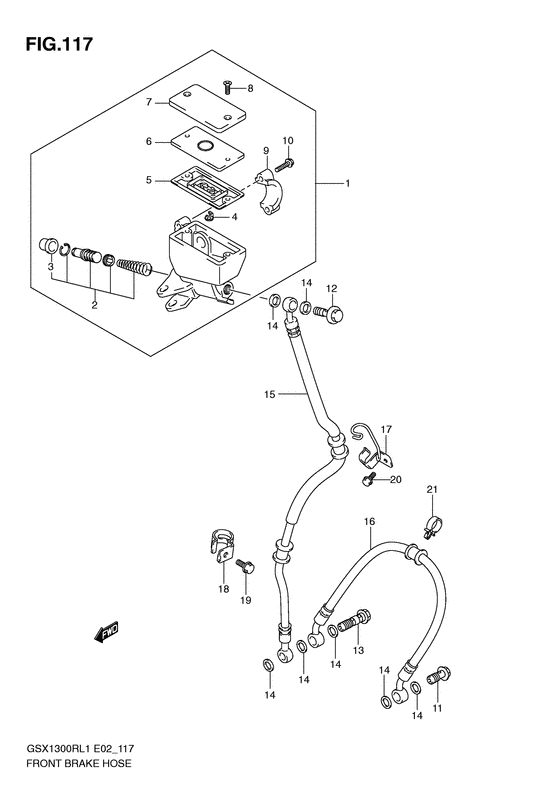

Front brake hose Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
59600-24F10-000 CYLINDER ASSY,FR MASTER |
59600-24F10-000 |
from US $357.07 |
||
|
2
|
2
59600-24810-000 PISTON & CUP SET |
59600-24810-000 |
from US $50.16 |
||
|
3
|
3
59666-44300-000 BOOT |
59666-44300-000 |
from US $1.82 |
||
|
4
|
4
59664-48B00-000 PROTECTOR |
59664-48B00-000 |
from US $6.51 |
||
|
5
|
5
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
6
|
6
59668-41C00-000 PLATE,DIAPHRAGMPlate, diaphragm |
59668-41C00-000 |
from US $5.28 |
||
|
7
|
7
59669-10G00-000 CAP |
59669-10G00-000 |
from US $17.25 |
||
|
8
|
8
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.52 |
||
|
9
|
9
59671-36500-000 HOLDER |
59671-36500-000 |
from US $8.62 |
||
|
10
|
10
59675-02FA0-000 BOLT(6X22)Bolt (6x22); |
59675-02FA0-000 |
US $6.10 |
||
|
11
|
11
09360-10062-000 UNIONBolt, upper Union; |
09360-10062-000 |
from US $4.96 |
||
|
12
|
12
09360-10062-000 UNIONBolt, upper Union; |
09360-10062-000 |
from US $4.96 |
||
|
13
|
13
09360-10064-000 UNIONBolt, joint Union; |
09360-10064-000 |
from US $3.95 |
||
|
14
|
14
09161-10009-000 WASHER(10X15X1.5)Lock washer Washer (10x15x1.5); |
09161-10009-000 |
from US $1.06 |
||
|
15
|
15
59480-15H00-000
HOSE,FR BRAKE NO.1
|
59480-15H00-000 |
— | ||
| replacement | |||||
|
15
|
15
59480-15H01-000 Hose |
59480-15H01-000 |
US $79.49 |
||
|
16
|
16
59240-15H00-000 HOSE,FR BRAKE NO.2 |
59240-15H00-000 |
from US $110.40 |
||
|
17
|
17
59260-41G00-000 CLAMP,FR BRAKE HOSE NO.1 |
59260-41G00-000 |
from US $13.44 |
||
|
18
|
18
59270-15H00-000 CLAMP,FR BRAKE HOSE NO.3Clamp, brake hose no.3; |
59270-15H00-000 |
from US $7.95 |
||
|
19
|
19
09111-06107-000 BOLT(6X12)Bolt, brake hose clamp no.3; |
09111-06107-000 |
from US $0.76 |
||
|
20
|
20
01547-0612A-000 BoltBolt, push rod guide |
01547-0612A-000 |
from US $0.76 |
||
|
21
|
21
09403-16412-000 CLAMPClamp, front brake hose |
09403-16412-000 |
from US $1.12 |
||
