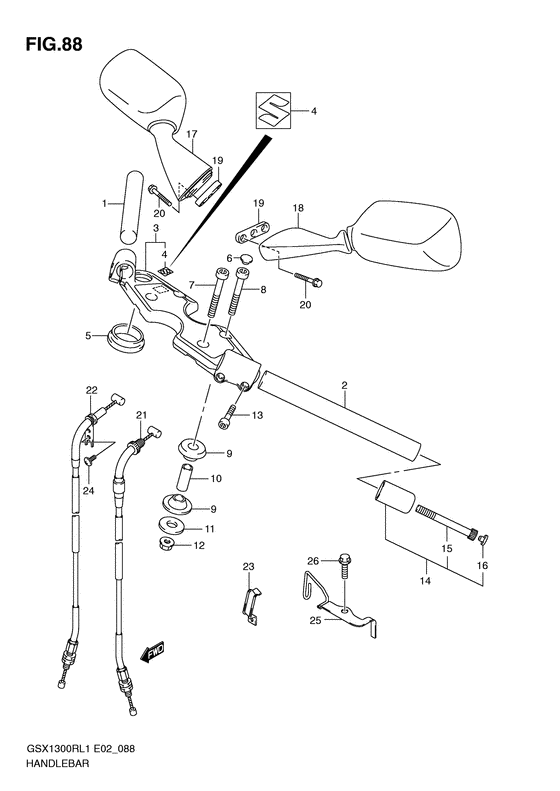

Handlebar Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
56111-15H00-000 HANDLEBAR,R |
56111-15H00-000 |
from US $47.10 |
||
|
2
|
2
56151-15H00-000 HANDLEBAR,L |
56151-15H00-000 |
from US $47.10 |
||
|
3
|
3
56210-15H00-000 HOLDER,HANDLEBAR |
56210-15H00-000 |
from US $412.80 |
||
|
4
|
4
68281-35F00-000 EMBLEM, S |
68281-35F00-000 |
from US $7.45 |
||
|
5
|
5
56247-24F00-000 CUSHION,HANDLE HOLDERCushion, hande holder Cushion, handle holder; |
56247-24F00-000 |
from US $5.34 |
||
|
6
|
6
56246-24F00-000 CAP,HANDLE HOLDER BRACKET BOLT |
56246-24F00-000 |
from US $4.93 |
||
|
7
|
7
07130-1065B-000 BoltBolt, front |
07130-1065B-000 |
from US $7.57 |
||
|
8
|
8
07130-1060A-000 Bolt |
07130-1060A-000 |
from US $6.92 |
||
|
9
|
9
56240-01D00-000
CUSHION,UPR BRACKET
|
56240-01D00-000 |
— | ||
| replacement | |||||
|
9
|
9
56240-01D01-000 Cushion,upr Brkt |
56240-01D01-000 |
from US $21.16 |
||
|
10
|
10
56243-01D00-000 SPACER,STEERING STEM HEADSpacer, stem head |
56243-01D00-000 |
from US $4.42 |
||
|
11
|
11
09160-10094-000 WASHER(10.5X30X3.2)Washer (10.5x30x3.2); |
09160-10094-000 |
from US $1.12 |
||
|
12
|
12
08319-3110A-000 NUTNut, fr differential |
08319-3110A-000 |
from US $1.98 |
||
|
13
|
13
09106-06090-000 BOLT(6X25)Bolt (6x25); |
09106-06090-000 |
from US $5.07 |
||
|
14
|
14
56200-15830-000 BALANCER SET,HANDLEBAR |
56200-15830-000 |
from US $38.27 |
||
|
15
|
15
07130-0660B-000 Bolt |
07130-0660B-000 |
from US $6.38 |
||
|
16
|
16
09250-05009-000 CAP(OD:10)Cap, inlet case |
09250-05009-000 |
from US $1.06 |
||
|
17
|
17
56500-24F00-000 Mirror assy, rear view rh |
56500-24F00-000 |
US $201.43 |
||
| replacement | |||||
|
17
|
17
56500-24F20-000 MIRROR ASSY,RR VIEW,R |
56500-24F20-000 |
from US $123.65 |
||
|
18
|
18
56600-24F00-000 Mirror assy, rear view lh |
56600-24F00-000 |
from US $110.40 |
||
| replacement | |||||
|
18
|
18
56600-24F20-000 MIRROR ASSY,RR VIEW,L |
56600-24F20-000 |
from US $104.88 |
||
|
19
|
19
94576-24F00-000 CUSHION,RR VIEW MIRROR |
94576-24F00-000 |
from US $4.10 |
||
|
20
|
20
01547-0630B-000 BoltBolt |
01547-0630B-000 |
from US $0.96 |
||
|
21
|
21
58300-15H00-000 Cable assy, throttle no.1 |
58300-15H00-000 |
US $56.68 |
||
| replacements | |||||
|
21
|
21
58300-15H20-000
Cable assy, throttle no.1
|
58300-15H20-000 |
— | ||
|
21
|
21
58300-15H21-000 Cable assy, throttle no.1 |
58300-15H21-000 |
from US $39.01 |
||
|
22
|
22
58300-15H10-000 Cable assy, throttle no.2 |
58300-15H10-000 |
US $56.68 |
||
| replacements | |||||
|
22
|
22
58300-15H30-000
Cable assy, throttle no.2
|
58300-15H30-000 |
— | ||
|
22
|
22
58300-15H31-000 Cable assy, throttle no.2 |
58300-15H31-000 |
from US $39.01 |
||
|
23
|
23
58623-24F10-000 GUIDE,CABLE |
58623-24F10-000 |
from US $3.68 |
||
|
24
|
24
09125-05042-000 SCREW(5X10)Screw (5x10); |
09125-05042-000 |
from US $0.91 |
||
|
25
|
25
58620-15H00-000 GUIDE,CABLE |
58620-15H00-000 |
from US $9.12 |
||
|
26
|
26
01547-0612B-000 Bolt |
01547-0612B-000 |
from US $0.77 |
||
| replacement | |||||
|
26
|
26
01547-0616B-000 Bolt |
01547-0616B-000 |
from US $0.76 |
||
