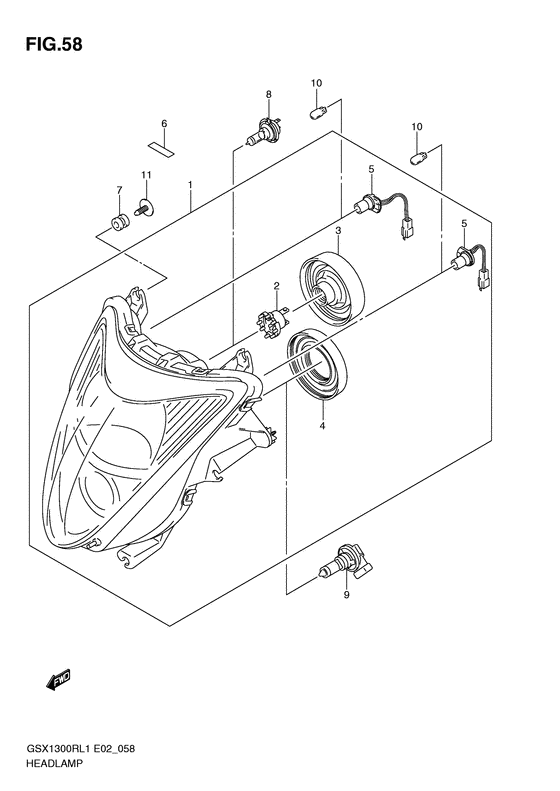

Headlamp (Gsx1300rl1 e2) Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35100-15H00-999
Headlamp assy
|
35100-15H00-999 |
— | ||
| replacements | |||||
|
1
|
1
35100-15H51-999
HEADLAMP ASSY
|
35100-15H51-999 |
— | ||
|
1
|
1
35100-15H52-999 Headlamp Assy |
35100-15H52-999 |
US $634.23 |
||
|
2
|
2
35175-24F00-000 ADAPTER ASSYAdaptor assy; |
35175-24F00-000 |
from US $15.84 |
||
|
3
|
3
35173-15H00-000 COVER |
35173-15H00-000 |
from US $14.09 |
||
|
4
|
4
35173-14G00-000 COVERSocket, cover; |
35173-14G00-000 |
from US $9.42 |
||
|
5
|
5
36118-15H00-000 CORD ASSY |
36118-15H00-000 |
from US $11.33 |
||
|
6
|
6
94443-21H00-000 TAPE,FR TURNSIGNALTape, fr turn Tape (5x20x0.4); |
94443-21H00-000 |
from US $1.76 |
||
|
7
|
7
09320-09039-000
CUSHION
|
09320-09039-000 |
— | ||
| replacement | |||||
|
7
|
7
09320-09059-000 Cushion,silencer Cover |
09320-09059-000 |
from US $1.67 |
||
|
8
|
8
09471-12188-000 BULB(12V55W/H7/PX26D/PHILIPS)Bulb (12v55w,h7) Bulb (12v55w); |
09471-12188-000 |
from US $20.34 |
||
|
9
|
9
09471-12222-000 BULB(12V65W,H9)Bulb (12v65w); |
09471-12222-000 |
from US $41.04 |
||
|
10
|
10
09471-12216-000 BULB(12V5W)Bulb (12v5w) Bulb (12v5w); |
09471-12216-000 |
from US $3.02 |
||
|
11
|
11
09136-05062-000 SCREW(5X15)Screw, shield Screw (5x15); |
09136-05062-000 |
from US $0.91 |
||
