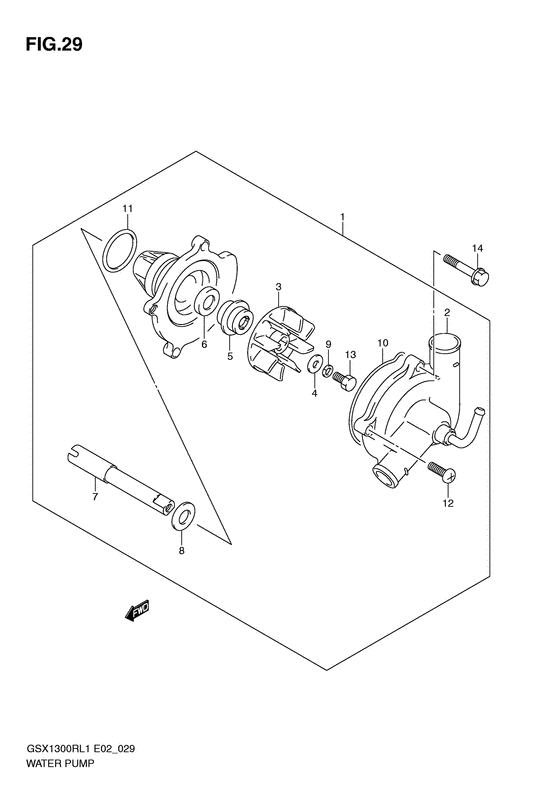

Water pump Diagram Suzuki GSX1300 Hayabusa
- Year
- 2011
- Model code
- GSX1300RL1(E2) L1
- Engine Capacity
- 1300
- Model
- GSX1300R Hayabusa
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17400-24F10-000
PUMP ASSY,WATER
|
17400-24F10-000 |
— | ||
| replacement | |||||
|
1
|
1
17400-24F11-000 Pump Assy,water |
17400-24F11-000 |
from US $217 |
||
|
2
|
2
17411-24F00-000 CASE |
17411-24F00-000 |
from US $79.49 |
||
|
3
|
3
17491-17E01-000 IMPELLER |
17491-17E01-000 |
from US $29.60 |
||
|
4
|
4
09168-06025-000 GASKET(6X15X2.2)Gasket Gasket (6x15x2.2); |
09168-06025-000 |
from US $1.22 |
||
|
5
|
5
17470-02F10-000
SEAL,MECHANICAL
Seal, mechanical; |
17470-02F10-000 |
— | ||
| replacement | |||||
|
5
|
5
17470-02F11-000 Seal,mechanicalSeal, mechanical; |
17470-02F11-000 |
from US $21.60 |
||
|
6
|
6
17461-48G00-000 SEAL,OIL |
17461-48G00-000 |
from US $9.42 |
||
|
7
|
7
17511-24F10-000 SHAFT |
17511-24F10-000 |
from US $58.14 |
||
|
8
|
8
17432-07G00-000 WASHER |
17432-07G00-000 |
from US $1.60 |
||
|
9
|
9
09164-06006-000 WASHERWasher (6.3x12x1) Washer; |
09164-06006-000 |
from US $1.06 |
||
|
10
|
10
17418-33400-000 O RING |
17418-33400-000 |
US $6.97 |
||
| replacement | |||||
|
10
|
10
17418-33401-000 O Ring |
17418-33401-000 |
from US $5.17 |
||
|
11
|
11
17435-33400-000 O RING,WATER PUMP HOLDER |
17435-33400-000 |
from US $9.42 |
||
|
12
|
12
02112-0616A-000 SCREW |
02112-0616A-000 |
from US $0.76 |
||
|
13
|
13
09100-06099-000 BOLT(6X13)Bolt (6x13) Bolt (6x13); |
09100-06099-000 |
from US $1.44 |
||
|
14
|
14
01547-0635A-000 BoltBolt; |
01547-0635A-000 |
from US $1.12 |
||
