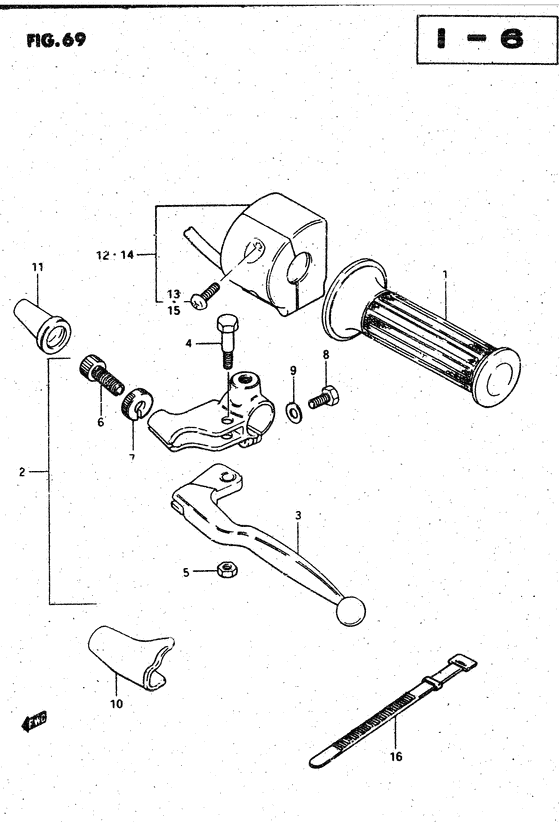

Left handle switch (Model d) Diagram Suzuki GSX750 Katana
- Year
- 1983
- Model code
- GSX750SD(E1) D
- Engine Capacity
- 750
- Model
- GSX750S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57211-49500-000 GRIP,L |
57211-49500-000 |
from US $18.82 |
||
|
2
|
2
57500-49103-000
Lever assy, clutch
|
57500-49103-000 |
— | ||
| replacement | |||||
|
2
|
2
57500-37200-000 Lever assy,clutchLever assy, clutch |
57500-37200-000 |
from US $50.61 |
||
|
3
|
3
57620-49101-000 LEVER,CLUTCHLever, clutch; |
57620-49101-000 |
from US $26.68 |
||
|
4
|
4
57431-49110-000 BOLT,LEVER PIVOTBolt, pivot Bolt, lever; |
57431-49110-000 |
from US $6.16 |
||
|
5
|
5
08319-21068-000
U nut
Nut; |
08319-21068-000 |
— | ||
| replacement | |||||
|
5
|
5
08319-2106A-000 NUTNut; |
08319-2106A-000 |
from US $1.28 |
||
|
6
|
6
57441-11010-000 ADJUSTER,CABLEAdjuster, cable; |
57441-11010-000 |
from US $2.89 |
||
|
7
|
7
57442-11010-000 NUT,CABLE ADJUSTERNut Nut; |
57442-11010-000 |
from US $1.67 |
||
|
8
|
8
57451-49110-000
Bolt
|
57451-49110-000 |
— | ||
| replacement | |||||
|
8
|
8
01204-06204-000 Bolt |
01204-06204-000 |
from US $3.71 |
||
|
9
|
9
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
9
|
9
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
|
10
|
10
57661-31000-000 COVER,CLUTCH LEVERCover, clutch lever Cover; |
57661-31000-000 |
from US $4.16 |
||
|
11
|
11
58273-31000-000
BOOT,CLUTCH CABLE
|
58273-31000-000 |
— | ||
| replacement | |||||
|
11
|
11
58273-31001-000 Boot,clutch Cable |
58273-31001-000 |
from US $1.98 |
||
|
12
|
12
37400-49311-000
Switch assy, handle lh
|
37400-49311-000 |
— | ||
| replacement | |||||
|
12
|
12
37400-49312-000
SWITCH ASSY,HANDLE,L
|
37400-49312-000 |
— | ||
|
13
|
13
02112-05168-000
Screw
|
02112-05168-000 |
— | ||
| replacement | |||||
|
13
|
13
02112-05167-000 SCREW |
02112-05167-000 |
from US $0.76 |
||
|
14
|
14
37400-49341-000
Switch assy, handle lh
E22 |
37400-49341-000 |
— | ||
| replacement | |||||
|
14
|
14
37400-49113-000
SWITCH ASSY,HANDLE,L
E22 |
37400-49113-000 |
— | ||
|
14
|
14
37400-49351-000
Switch assy, handle lh
E34 |
37400-49351-000 |
— | ||
| replacement | |||||
|
14
|
14
37400-49312-000
SWITCH ASSY,HANDLE,L
E34 |
37400-49312-000 |
— | ||
|
15
|
15
02112-05165-000
Screw
E22,e34 |
02112-05165-000 |
— | ||
| replacement | |||||
|
15
|
15
02112-05164-000 SCREWScrew, rect & relay cover E22,e34 |
02112-05164-000 |
from US $3.59 |
||
|
16
|
16
09407-12402-000 CLAMP(L:120)Clamp, wiring harness |
09407-12402-000 |
from US $2.24 |
||
