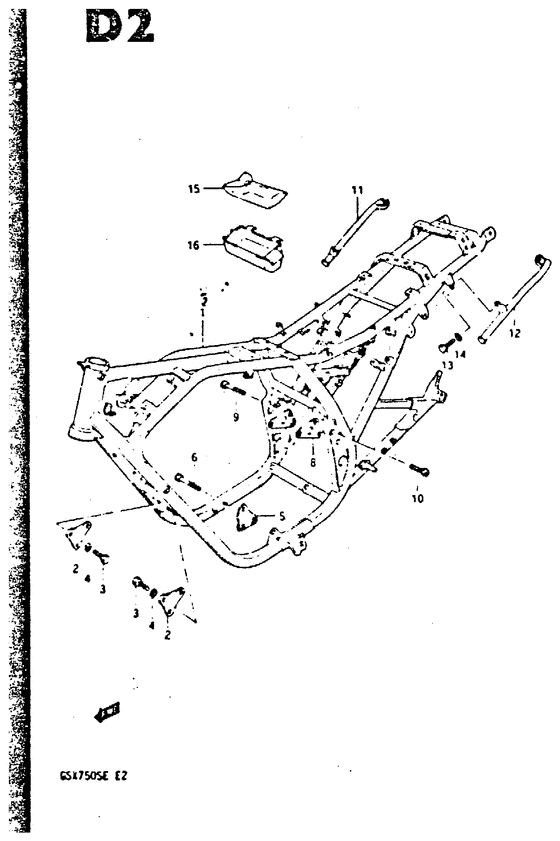

Frame Diagram Suzuki GSX750
- Year
- 1984
- Model code
- GSX750SE(E2) E
- Engine Capacity
- 750
- Model
- GSX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
41100-08A00-13T
Frame (gold)
Frame (gold); |
41100-08A00-13T |
— | ||
|
2
|
2
41911-31300-291
Plate, no.1 (black)
|
41911-31300-291 |
— | ||
|
3
|
3
01107-08165-000
Bolt 6x16
|
01107-08165-000 |
— | ||
| replacement | |||||
|
3
|
3
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
4
|
4
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
4
|
4
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
4
|
4
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.96 |
||
|
5
|
5
41930-31300-291
Plate eng mount
Plate, no.2 rh (black); |
41930-31300-291 |
— | ||
|
6
|
6
07110-08405-000
Bolt, upper
|
07110-08405-000 |
— | ||
| replacement | |||||
|
6
|
6
07130-0840B-000 Bolt |
07130-0840B-000 |
from US $1.44 |
||
|
7
|
7
41970-31300-291
Plate eng mount
Plate, no.4 rh (black); |
41970-31300-291 |
— | ||
|
8
|
8
41980-31300-291
Plate eng mount
Plate, no.4 lh (black); |
41980-31300-291 |
— | ||
|
9
|
9
07110-08355-000
Bolt
|
07110-08355-000 |
— | ||
| replacement | |||||
|
9
|
9
07130-0835B-000 Bolt |
07130-0835B-000 |
from US $1.44 |
||
|
10
|
10
07110-08255-000 Bolt |
07110-08255-000 |
US $1.09 |
||
| replacement | |||||
|
10
|
10
07130-0825B-000 Bolt |
07130-0825B-000 |
from US $1.28 |
||
|
11
|
11
41610-08A00-000
Grip, frame handle rh
|
41610-08A00-000 |
— | ||
|
12
|
12
41620-08A00-000
Grip, frame handle lh
|
41620-08A00-000 |
— | ||
|
13
|
13
01107-08168-000
Bolt
|
01107-08168-000 |
— | ||
| replacement | |||||
|
13
|
13
01500-0816B-000 BoltBolt |
01500-0816B-000 |
from US $0.96 |
||
|
14
|
14
08321-21088-000
Lock washer
|
08321-21088-000 |
— | ||
| replacement | |||||
|
14
|
14
08321-01087-000 WASHER,LOCKWasher, lock |
08321-01087-000 |
from US $0.76 |
||
|
15
|
15
09800-00285-000
Tool set
|
09800-00285-000 |
— | ||
| replacements | |||||
|
15
|
15
09800-21016-000
TOOL ASSY
|
09800-21016-000 |
— | ||
|
15
|
15
09800-21073-000 Tool Assy |
09800-21073-000 |
from US $86.85 |
||
|
16
|
16
47431-31301-000
Holder, tool
|
47431-31301-000 |
— | ||
