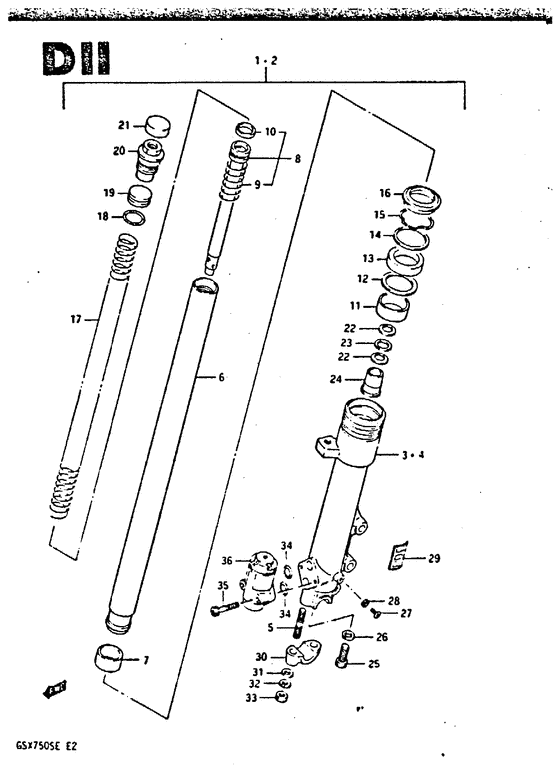

Front damper Diagram Suzuki GSX750
- Year
- 1984
- Model code
- GSX750SE(E2) E
- Engine Capacity
- 750
- Model
- GSX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
51103-08A00-000
Damper assy, rh
|
51103-08A00-000 |
— | ||
|
2
|
2
51104-08A00-000
Damper assy, lh
|
51104-08A00-000 |
— | ||
|
3
|
3
51130-08A00-15T
Outer tube, rh (black)
Outer tube, rh (black); |
51130-08A00-15T |
— | ||
|
4
|
4
51140-08A00-15T
Outer tube, lh (black)
Outer tube, lh (black); |
51140-08A00-15T |
— | ||
|
5
|
5
01411-08308-000
Stud bolt
|
01411-08308-000 |
— | ||
| replacement | |||||
|
5
|
5
01411-0830A-000 BOLT,STUD |
01411-0830A-000 |
from US $1.28 |
||
|
6
|
6
51110-08A00-000
TUBE,INNER
|
51110-08A00-000 |
— | ||
|
7
|
7
51121-49510-000
METAL,FR FORK PISTON
|
51121-49510-000 |
— | ||
|
8
|
8
51146-08A00-000
Cylinder
|
51146-08A00-000 |
— | ||
|
9
|
9
51177-49000-000 SPRING,REBOUNDSpring Spring, rebound; |
51177-49000-000 |
from US $5.89 |
||
|
10
|
10
51196-00A00-000 RING,FR FORK PISTONRing, piston; |
51196-00A00-000 |
from US $7.22 |
||
|
11
|
11
51167-49510-000
Slide mital
|
51167-49510-000 |
— | ||
| replacement | |||||
|
11
|
11
51167-01D00-000 Metal,slideMetal, slide |
51167-01D00-000 |
from US $5.62 |
||
|
12
|
12
51158-49500-000 WASHER |
51158-49500-000 |
from US $2.43 |
||
|
13
|
13
51153-00A00-000
SEAL,OIL
|
51153-00A00-000 |
— | ||
|
14
|
14
51158-00A00-000
WASHER,FORK OIL SEAL
|
51158-00A00-000 |
— | ||
|
15
|
15
51156-40301-000 RING,STOPPERRing, oil seal stopper Snap ring; |
51156-40301-000 |
from US $2.58 |
||
|
16
|
16
51173-00A00-000
SEAL,DUST
|
51173-00A00-000 |
— | ||
|
17
|
17
51171-08A00-000
Spring
|
51171-08A00-000 |
— | ||
|
18
|
18
51117-45110-000
O ring
|
51117-45110-000 |
— | ||
| replacement | |||||
|
18
|
18
09280-22011-000 O RING(D:3.5,ID:21.8) |
09280-22011-000 |
from US $6.07 |
||
|
19
|
19
51172-45110-000 PISTON,FREEGuide, spring Piston, free; |
51172-45110-000 |
from US $7.54 |
||
|
20
|
20
51351-49200-000
CAP
|
51351-49200-000 |
— | ||
|
21
|
21
51189-00A00-000
CAP,FORK INNER TUBE
|
51189-00A00-000 |
— | ||
|
22
|
22
51125-45420-000 SPRING,LEAFSpring, leaf; |
51125-45420-000 |
from US $2.36 |
||
|
23
|
23
51123-45420-000 WASHER |
51123-45420-000 |
from US $2.36 |
||
|
24
|
24
51195-45420-000
PIECE,OIL LOCK
|
51195-45420-000 |
— | ||
|
25
|
25
51147-16510-000 BOLT,FORK CYLINDER(10X25)Bolt,cylinder |
51147-16510-000 |
from US $2.46 |
||
|
26
|
26
51148-41310-000 GASKETGasket Gasket; |
51148-41310-000 |
from US $3.09 |
||
|
27
|
27
02112-04085-000
Screw
|
02112-04085-000 |
— | ||
| replacement | |||||
|
27
|
27
02112-0408A-000 SCREW |
02112-0408A-000 |
from US $0.96 |
||
|
28
|
28
51183-03010-000 GASKET,DRAIN,PLUGGasket Gasket; |
51183-03010-000 |
from US $1.40 |
||
|
29
|
29
51169-00A10-000
Emblem
|
51169-00A10-000 |
— | ||
|
30
|
30
51132-49500-15T
Holder axle
Holder, axle (black); |
51132-49500-15T |
— | ||
|
31
|
31
08322-11084-000
Washer
|
08322-11084-000 |
— | ||
| replacements | |||||
|
31
|
31
08322-0108B-000 WASHER |
08322-0108B-000 |
from US $0.96 |
||
|
31
|
31
08322-0108A-000 WASHER |
08322-0108A-000 |
from US $0.96 |
||
|
32
|
32
08321-21084-000
Lock washer
|
08321-21084-000 |
— | ||
| replacements | |||||
|
32
|
32
08321-0108B-000 WASHER,LOCK |
08321-0108B-000 |
from US $0.76 |
||
|
32
|
32
08321-0108A-000 WASHER,LOCK |
08321-0108A-000 |
from US $0.96 |
||
|
33
|
33
08310-11085-000
Nut 10mm
|
08310-11085-000 |
— | ||
| replacements | |||||
|
33
|
33
08310-0008B-000 NUT |
08310-0008B-000 |
from US $0.96 |
||
|
33
|
33
08310-0008A-000 NUTNut, bead stopper |
08310-0008A-000 |
from US $0.76 |
||
|
34
|
34
51799-00A00-000
O RING
|
51799-00A00-000 |
— | ||
| replacement | |||||
|
34
|
34
51799-00A01-000
O Ring
|
51799-00A01-000 |
— | ||
|
35
|
35
07110-06408-000
Bolt
|
07110-06408-000 |
— | ||
| replacement | |||||
|
35
|
35
07130-06407-000 Bolt |
07130-06407-000 |
from US $1.12 |
||
|
36
|
36
51770-08A00-000
P.d.f assy
|
51770-08A00-000 |
— | ||
