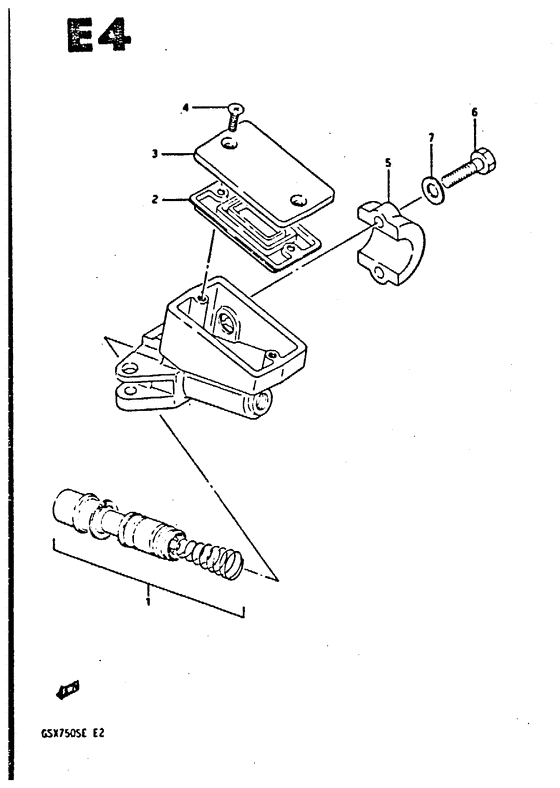

Front Master Cylinder Diagram Suzuki GSX750
- Year
- 1984
- Model code
- GSX750SE(E2) E
- Engine Capacity
- 750
- Model
- GSX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11
|
11
59600-08A00-000
Master cylinder assy
|
59600-08A00-000 |
— | ||
| replacement | |||||
|
11
|
11
59600-08X50-000
CYLINDER ASSY,FR MASTER
|
59600-08X50-000 |
— | ||
|
1
|
1
59600-45860-000 PISTON & CUP SETPiston/cup set Piston & cup set; |
59600-45860-000 |
from US $55.96 |
||
|
2
|
2
59667-49460-000 DIAPHRAGM |
59667-49460-000 |
from US $13.19 |
||
|
3
|
3
69669-49300-000
Cap
Cup; |
69669-49300-000 |
— | ||
| replacements | |||||
|
3
|
3
59668-41C00-000 PLATE,DIAPHRAGMPlate, diaphragm Cup; |
59668-41C00-000 |
from US $5.28 |
||
|
3
|
3
59669-41C00-000 CAPCap, reservoir Cup; |
59669-41C00-000 |
from US $24.64 |
||
|
4
|
4
69689-49300-000 SCREWScrew, cap |
69689-49300-000 |
from US $1.52 |
||
|
5
|
5
59671-16700-000
Holder
|
59671-16700-000 |
— | ||
| replacement | |||||
|
5
|
5
59671-19B00-000 HOLDER |
59671-19B00-000 |
from US $12.77 |
||
|
6
|
6
01107-06255-000
Bolt
|
01107-06255-000 |
— | ||
| replacement | |||||
|
6
|
6
01500-0625A-000 BoltBolt, gear shift arm |
01500-0625A-000 |
from US $0.96 |
||
|
7
|
7
08322-21064-000
Washer
|
08322-21064-000 |
— | ||
| replacement | |||||
|
7
|
7
08322-0106B-000 WASHER |
08322-0106B-000 |
from US $0.76 |
||
