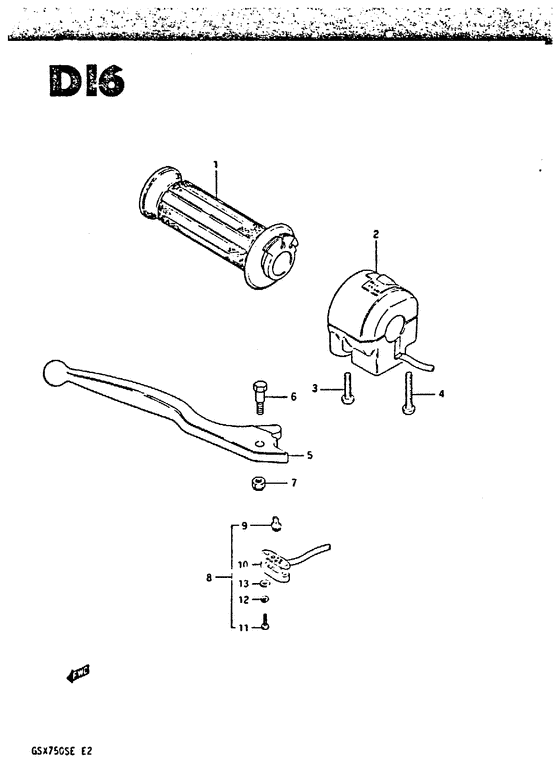

Right handle switch Diagram Suzuki GSX750
- Year
- 1984
- Model code
- GSX750SE(E2) E
- Engine Capacity
- 750
- Model
- GSX750
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
57110-49500-000 Grip, throttle |
57110-49500-000 |
US $33.90 |
||
| replacement | |||||
|
1
|
1
57110-49501-000 GRIP,THROTTLE |
57110-49501-000 |
from US $33.44 |
||
|
2
|
2
37200-08A00-000
Switch assy, handle rh
|
37200-08A00-000 |
— | ||
|
3
|
3
02112-05255-000
Screw
|
02112-05255-000 |
— | ||
| replacement | |||||
|
3
|
3
09125-05066-000 SCREW(5X25) |
09125-05066-000 |
from US $0.96 |
||
|
4
|
4
02112-05355-000
Screw
|
02112-05355-000 |
— | ||
| replacement | |||||
|
4
|
4
02112-0535B-000 SCREW |
02112-0535B-000 |
from US $0.80 |
||
|
5
|
5
57420-05A10-000
LEVER,BRAKE
|
57420-05A10-000 |
— | ||
| replacement | |||||
|
5
|
5
57420-38B00-000
LEVER,BRAKE
|
57420-38B00-000 |
— | ||
|
6
|
6
57431-05A00-000 BOLT,LEVER |
57431-05A00-000 |
from US $7.04 |
||
|
7
|
7
08319-21065-000
Nut
|
08319-21065-000 |
— | ||
| replacement | |||||
|
7
|
7
08319-2106B-000 NUT |
08319-2106B-000 |
from US $1.06 |
||
|
8
|
8
57460-49300-000
Switch, stop (neutral)
|
57460-49300-000 |
— | ||
| replacement | |||||
|
8
|
8
57460-45500-000 SWITCH ASSY,STOP |
57460-45500-000 |
from US $47.55 |
||
|
9
|
9
57465-18601-000 CONTACT,SWITCHHolder; |
57465-18601-000 |
from US $2.82 |
||
|
10
|
10
57481-33010-000 COVER,FR BK TERMINAL BASECover |
57481-33010-000 |
from US $3.35 |
||
|
11
|
11
09125-03105-000
Cross head scre
Screw; |
09125-03105-000 |
— | ||
| replacement | |||||
|
11
|
11
09125-03105-XC0 SCREWScrew; |
09125-03105-XC0 |
from US $3.04 |
||
|
12
|
12
08321-21038-000
Lock washer
|
08321-21038-000 |
— | ||
| replacements | |||||
|
12
|
12
08321-2103B-000 WASHER,LOCK |
08321-2103B-000 |
from US $7.70 |
||
|
12
|
12
09162-03001-000 WASHER,LOCKLock washer |
09162-03001-000 |
from US $1.85 |
||
|
13
|
13
08322-21038-000
Washer
|
08322-21038-000 |
— | ||
| replacement | |||||
|
13
|
13
08322-01037-000 WASHER |
08322-01037-000 |
from US $3.04 |
||
